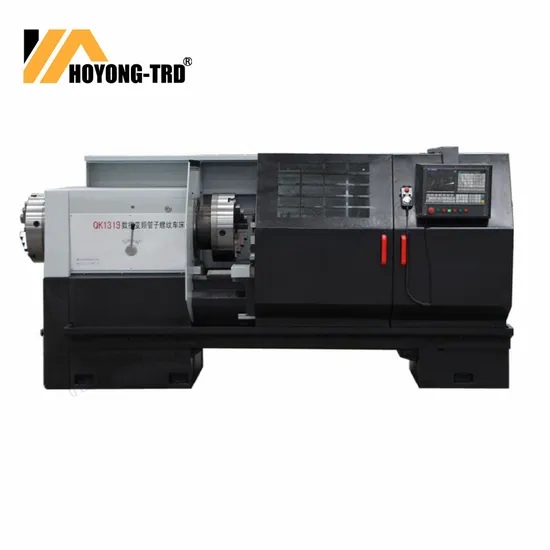

200mm Big Spindle Bore Pipe Threading Flat Bed CNC Lathe Qk1319 Oil Country Heavy Duty CNC Lathe
| US$16,000.00-25,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
Qk1319
Type
Horizontal Lathe
Processing Accessory
Metal
Guide Rail
Horizontal Guide Rail
Tool Holder
4 Way Tool Post
Power Source
Electric
Controlling Mode
Artificial
Automatic Grade
Manual
Setting Mode
Floor-type
Precision
High Precision
Certification
CE, RoHS, ISO 9001
Condition
New
Bed Width
550mm
Swing Over Bed
630mm
Spindle Bore
200mm
X Axis Travel
520mm
Transport Package
Plywood Case
Specification
3200kgs
Trademark
HOYONG-TRD
Origin
Shandong, China
HS Code
84581900
Production Capacity
10 PCS/Month
Product Description
CNC PIPE THREADING LATHE FEATURES:QK13 series of CNC pipe threading lathe is mainly used for processing inner and outer pipe thread, metric thread
and inch thread, and can also undertake various turning works such as turning inner and outer cylindrical surface,
conical surface and other revolution and end surface as general CNC lathes
SPECIFICATIONS:
| SPECIFICATION | UNIT | QK1319 | |
| Nc System | Fanuc Oil mate control system | ||
| Max dia.swing over bed | mm | 630 | |
| Max dia.swing over cross slide | mm | 345 | |
| Max.length of work-piece | mm | 1000 | |
| Width of bed | mm | 550 | |
| Spindle bore | mm | 205 | |
| Power of spindle motor | Kw | 11 | |
| Mode of spindle speed | Two gears Variable speed change | ||
| Range of spindle speed | r/min | (L):25-120 (H):100-500 | |
| Max.traverse of X/Z | mm | X:350 Z:750 | |
| X/Z rapid traverse | mm/min | 4000 | |
X-axis motor | Speed | r/min | 1500 |
| Torgue | N.m | 10 | |
| Power | Kw | 1.5 | |
| Speed | r/min | 1500 | |
| Z-axis motor | Torgue | N.m | 15 |
| Power | Kw | 2.3 | |
Tailstock quill | Diameter | mm | 100 |
| Travel | mm | 250 | |
| Taper | Morse NO.5 | ||
Electric tool-post | Model | LDB4-6163A | |
| No.of tool stations | Vertical four-station | ||
| Dimension | mm | 240×240 | |
| Turret indexing time | S | 2.6 | |
| Chuck | K11-500 three jaw chuck | ||
| Positioning accuracy | mm | 0.020 | |
| Repositioning accuracy | mm | 0.01 | |
| Overall dimensions(L*W*H) | mm | 3157×1755×1880 | |
| Machine weight | T | 4.2 | |
