US$8.00-30.00
|
1 Piece
(MOQ)
|
Basic Info.
Driving Method
LED Constant Current
Certification
CE, RoHS, CCC
Power Supply Mode
Constant Current Source
Input
200-240VAC 2.5amax 50/60Hz
Production Capacity
100000
Packaging & Delivery
Package Size
40.00cm * 32.00cm * 22.00cm
Package Gross Weight
15.500kg
Product Description

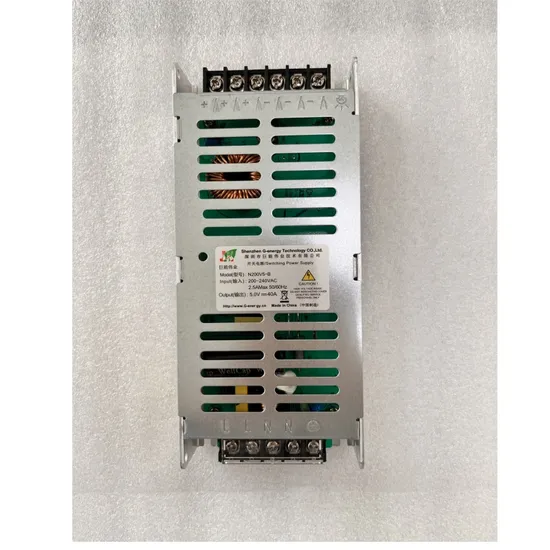

5.0V 40A Switching Power Supply for LED Display
Output power: 200W Max
Leakage current: <1ma(Vin:230)
Working temperature: -30ºC~60ºC
Heat dissipation method: self-cooling
Storage temperature: -40~80ºC
Input voltage: 200-240Vac, 47-63Hz
Insulation voltage: I/P-O/P: 3.0KVac; I/P-FG: 1.5KVac; O/P-FG: 0.5KVac
Safety standards: GB4943, EN60950
Protection functions: input undervoltage, overload protection, short circuit protection
Power factor: 0.50@230Vac
Dimensions: length × width × height = 190 × 84 × 30
