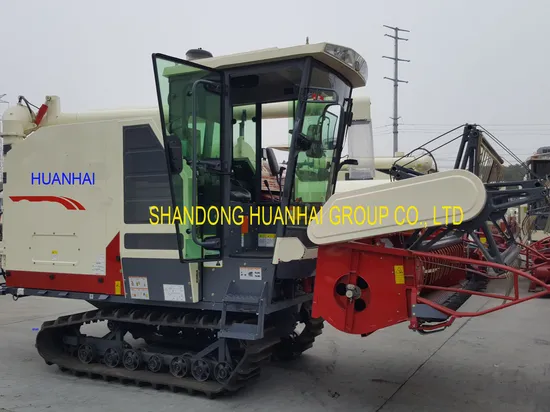

4lz-6.0p Paddy Harvester
| US$18,000.00 | 1 Set (MOQ) |
Basic Info.
Application
Rice, Corn, Wheat, Soybean
Power Source
Tractor
Harvest method
Cutting
Drive Type
Gear Drive
Transmission
Soft Shaft
Portable Harvester Type
Side Hanging Type
Certification
ISO9001:2008, CE
Color
Red
Condition
New
Application Field
Agriculture, Livestock, Aquaculture, Forestry
Warranty
1 Year
Undercarriage
Ribber Track Type
Transport Package
Seaworthy Packing
Specification
ISO9001
Trademark
huanhai
Origin
Shandong, China
HS Code
8433510090
Production Capacity
20000 Units Per Year
Product Description
Main advantages:
1. Compact structure, excellent performance, Low ground pressure, high performance in wet or mud land
2. High threshing ability, low broken rate. Low lost rate
3. Thorough clearance with double shakers for re-threshing
4. Famous brand engine with large power and stable performance
| RUBBER TRACK COMBINE HARVESTER | ||||
| Technical Parameter | ||||
| Model | 4LZ-4.0E | 4LZ-6.0P | ||
| Type | Self-propelled Whole-feeding | Self-propelled Whole-feeding | ||
| Dimension | Length(mm) | 4960 | 5150 | |
| Width(mm) | 2890 | 2890 | ||
| (Operation) | ||||
| Height(mm) | 2830 | 3100 | ||
| Weight(kg) | 3000 | 3400 | ||
| Type | Water cool, Four-stroke, Direct Injecti | Water cool, Four-stroke, Direct Injection | ||
| Engine | Power(HP) | 88 | 102 | |
| RPM(r/min) | 2600 | 2600 | ||
| Fuel tank(L) | 130 | 130 | ||
| Gear Box | ZKB65 | ZKB85 | ||
| HST | 40cc HST | 52cc HST | ||
| Chassis | Track(mm) | 500*90*51 | 550*90*56 | |
| Track Center(mm) | 1150 | 1250 | ||
| Ground Clearance(mm | 320 | 360 | ||
| Harvesting | Cutting Width(mm) | 2000 | 2200 | |
| Feeding Capacity (kg/s | 5.0 | 6.0 | ||
| Cutting Bar Lift | Hydraulic Control | Hydraulic Control | ||
| Threshing | Type | Axial Flow Type with Beat Bars | Axial Flow Type with Beat Bars | |
| Threshing Cylinder (m | 600*2000 | 620*2000 | ||
| Filtrate Type | Vibrating Sieves+ Centrifugal Fan | Vibrating Sieves+ Centrifugal Fan | ||
| Discharging | Grain unloading type | 360 degree rotary unloading | 360 degree rotary unloading | |
| Grain tank volume(M3 | 1.5 | 1.6 | ||
| Crops | Rice, Wheat, Rapessed | Rice, Wheat, Rapessed, Soybean, Corn | ||
