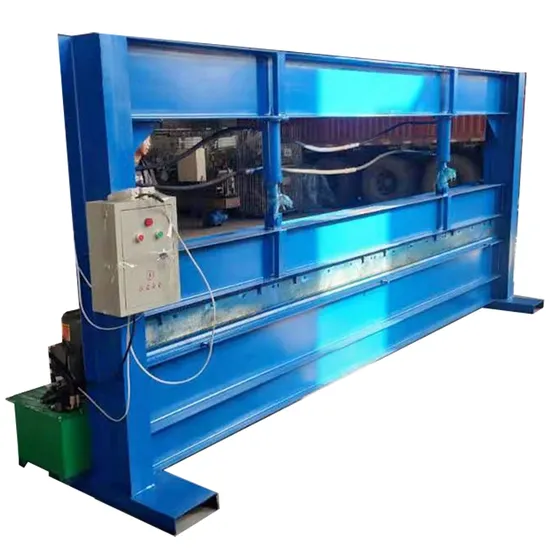

1400 mm CNC Sheet Bending Machine for Sheet Metal Bending

Product Description

Product Description 1400 mm Cnc Sheet Bending Machine For Sheet Metal Bending
Features for Hydraulic Press Brake Sheet Metal Bending Machine
1. Adopt all-steel welded structure, with sufficient strength and rigidity;
2. Hydraulic drive, the oil cylinders at both ends of the machine tool are placed on the sliding block to directly drive the sliding work;
3. The slider synchronization mechanism adopts torsion shaft for forced synchronization;
4. Using mechanical block structure, stable and reliable;
5. The stroke of the slider can be adjusted quickly and manually, and the counter is displayed;
6. Oblique wedge-type deflection compensation mechanism to ensure higher bending accuracy. Operating Procedures 1. First, turn on the power, turn on the key switch on the control panel, and then press the oil pump to start. 2. The stroke adjustment, the use of the bending machine must pay attention to the adjustment stroke, be sure to test run before bending. When the upper die of the bending machine descends to the bottom, there must be a gap of plate thickness. Otherwise it will cause damage to the mold and the machine. The stroke adjustment also has electric quick adjustment and manual fine adjustment. 3.Selection of bending notches 4. Backgauge adjustment generally includes electric quick adjustment and manual fine adjustment 5.Step on the foot switch to start bending. The bending machine is different from the shearing machine. You can release it at any time. When you release your foot, the bending machine will stop, and then step on to continue downward. - Main Specifications of Hydraulic Press Brake Sheet Metal Bending Machine

No.	4m 6m Manual Hydraulic steel aluminum sheet bending machine
Suitable to process	(Prepainted)galvanized steel plate
Processing thickness	Max 2mm or according to customer's need
Sheet max width	4Meters/6Meters
Electric tension	380V 3phase 50HZ or as your request
Angle type	4 Kinds
Weight	About 1.8T
Hydraulic motor	3Kw
Yield Strength	G350
Hydraulic Cylinder Quantity	2/3 units
Bending Mold	Cr12
Bending Angle	90°,120°,135°
Electrical Control Box	Manual button
Voltage	220V/240V/380V/415V/440V
Drive system	Hydraulic
Size	4200*1000*2100mm

Packaging & Shipping 1.All export goods will be packed according to customer requirements before shipment and used in hydraulic press brake sheet metal bending machine
2.Before the goods arrived destination port, we will provide customer bill of lading and clearance documents for making clearance customs. Company Profile
FAQ Q1: How long is the warranty? A1: We guarantee a 12-month after-sale service .Any problem when using ,call or mail us ,we will advise on technically sound methods .If needed ,we will provide free accessories Q2: Can I have my own customized product?
A2: Yes, your are welcome customized requirements for color, logo, design, package, carton mark, etc. Q3: How can I get sample and how long will it take? A3: Sample policy is different for different items. Please kindly contact us to get details. Q4: What's the MOQ? A4: MOQ is different for different items, please kindly contact us for confirming. Q5: How do I pay for my purchase order? A5: T/T, L/C at sight, Western Union, MoneyGram Q6: What is your terms of payment? A6: For regular order, T/T 30% as deposit, and 70% before Shipment. We'll show you the photos of the products and packages before you pay the balance Q7: How about your delivery time? A7: Generally, It will take about 7~15 days to send goods out. The specific delivery time depends on the items and the quantity of your order
