sesame sorter machine sesame peeling machine sesame sorting machine

Product Description

Product Description

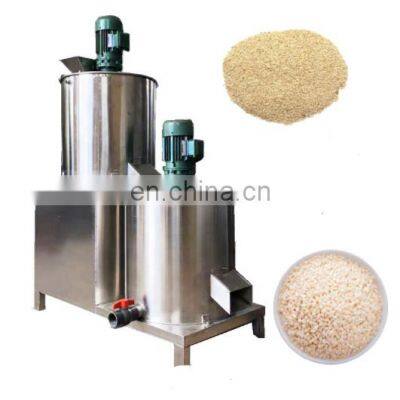

Good quality Sesame peeler machine/sesame peeling machine/sesame huller machine/sesame hulling machine/sesame sortex machine/sesame sorting machine 1. APPLICATIONS Applied for sesame soaking, sesame skin removing, sesame skin and kernel’s separating.Collect all process together.2. MECHANICAL STRUCTURES Mainly include body, composite stirrer, separator, locator, inlets and outlets, and deceleration gear box, etc.3. OPERATION PRINCIPLES Soaking The special stirrer, which is driven by decelerator, puts upward the peripheral sesame seed and the center sesame will continuously move downwards, in this way, the sesame will move up and down, later the sesame soak in water totally.Skin removing The stirrer driven by decelerator makes the soaked sesame rotating rapidly up and down. The hull will removed from the kernel by the friction between sesames and the rotating force from the stirrer.Skin and Kernel’s Separating The hull and kernel are pushed continuously by the stirrer driven by decelerator to move in radial and axile directions. The hull is discharged through the holes on the plate, while the kernel is sustained by the plate with holes, and thus they are separated from each other. Model No.Capacity (kg/hour)Motor powerSize outsideJX-300300 kg/hour 3kw + 1.1 kw1700*800*2000 mm
