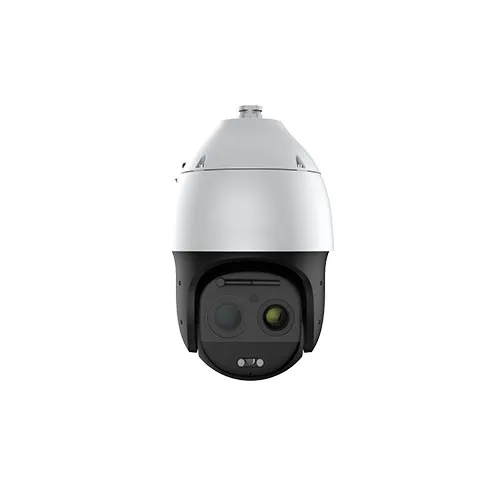

5MP 44X Thermal & Optical Bi-Spectrum Ai IR PTZ Speed Dome PTZ CCTV Security Camera CCTV Camera Auto Tracking

Product Description

Product Description

H. 265, 5MP 1/1.8 " CMOS, 44X Optical Starlight low illumination: 0.002Lux@F1.6, 0.001Lux@F1.6 (B/W) Smart detection: area intrusion, line crossing, motion detection, video block, etc. Suppot Ir distance 300m, white light 30m Intelligent pyrotechnic detection, temperature detection abnormal alarm, one-click setting of visible light Support tripwire, double tripwire, perimeter, object left, object lost, Thermal imaging, etc. Support 3D positioning function with click tracking and zooming Preset 500, cruise 16,scan 8 Support 2*10M/100M RJ45,alarm 8 in/2 out,audio 1 in/1 out Support TF card up to 512G Support horizontal 360° rotation, vertical -16°~90° IP66, TVS 4000V, Lightning protection, surge prevention Working temp.: -30ºC~65ºC, Power: AC36V±25%,DC36V±25% Dimension

Specifications

Model	C-H558M-44X/IT/A/AR
Image Sensor	1/1.8'' CMOS sensor 5MP
Main stream	Channel 1: PAL:25fps (3072×1728),50fps (2560×1440,2304×1296,1920×1080, 1280×720), Channel 2:25fps (384x288) Channel 1: NTSC:3072×1728 FPS,60fps (2560×1440,2304×1296,1920×1080, 1280×720), Channel 2:30fps (384x288)
Sub stream	Channel 1: PAL:25 FPS (704 x576, 704 x288, 352 x288, 640 x360), channel2: 25fps (384 x288) Channel 1: NTSC:30 FPS (704 x480, 704 x240, 352 x240, 640 x360), channel2: 30fps (384 x288)
Third stream	Channel 1: PAL: 25fps(1920×1080,1280×720,704 x576,640x480,704 X288, 352 X288), Channel 2:25fps(384x288) Channel 1: NTSC:30fps(1920×1080,1280×720,704 x 480640 x 480704 X240, 352 X240), Channel 2:30fps(384x288)
Shutter	1/1s-1/100000s
Focal length	6.7mm-294.8mm
Zooming	44X
Zooming speed	5s
Horizontal view angle	Horizontal: 61.8°(w)~2.3°(t); Vertical: 36.3°(w)~1.3°(t)
Aperture range	F1.6 - F5.3
Low illumination	Color:0.002Lux@F1.6, B/W:0.001Lux@F1.6;0 Lux with IR ON
Color to B/W	Adaptive/color/black and white/timing, default adaptive
White Balance	Automatic/semi-automatic/manual/sunny/natural light/warm light/fluorescent/incandescent/locked white balance, default automatic
Exposure mode	Auto/Manual/Aperture priority/Shutter priority, default auto
Image setting	Adjustable image brightness, contrast, saturation and chroma
Picture overlay	Support 1*200×200, BMP 24 Picture Overlay
ROI	7 fixed area
Image Enhancement	BLC/3D DNR/HLC/DEFORG/WDR
Thermal parameters
Thermal Sensor Type	Vanadium Oxide Uncooled Focal Plane Arrays
Resolution	384 × 288
NETD	≤40mK@f/1.0
Thermal Length	50mm
Response Waveband	8-14μm
Thermal FOV	Horizontal: 7.5°,Vertical: 5.6
Measurement Distance Based on the reference: human (1.8m x 0.5m) vehicle (4m x 1.4m)	Detection: 4510m (vehicle),1471m (human) Recognition: 1127m (vehicle),368m (human) Identification: 564m (vehicle),184m (human)
Fire Detection Distance Based on the reference: fire (2m×2m)	3000m
Main functions
Pyrotechnic detection	Support
Smart functions	Support tripwire, double tripwire, perimeter, object left, object lost, thermal imaging, etc.
Temperature alarm	High temperature alarm, temperature difference alarm
Alarm	Items leftover, items loss, wandering, running, license plate recognition, face capture, people counting, crowd gathering, duty detection, illegal parking, parking space guarding, safety helmet detection
Face capture	Support
Smart wipers	Support
Mechanical functions
Manual speed	0.1°~200°/s
Horizontal angle	360° continuously rotation
Vertical angle	-16°-90°
Rotation speed with zooming	Control speed automatically adjusted according to the length of the focus
Preset points	500
Cruise	16
Scan	8
Mode	8
Interface
Internet interface	2*10M/100M self-adaptive RJ45 ethernet port
RS485	1in
Alarm	8 in/2 out
Audio	1in/ 1 out
Storage	TF card, up to 512G
GPS/Beidou	Support positioning, satellite calibration
Encode mode
Video Encoding	S+265, H.265, H.264 High Profile, MJPEG
Audio encoding	G.711A,G.711U,AAC
Audio sample rate	8K, 32K, 48K
Video compression rate	32K~16Mbps
streams	Three streams
Illuminator
IR light	300m
Infrared angle	zoom matching, far/medium/near
Infrared light brightness	Adjustable
White light	30m
Others
Browser	WEB6
Language	English, Chinese
Protocol	TCP/UDP/HTTP/MULTICAST/UPnP/DHCP/PPPoE/DDNS/NFS/FTP/NTP/RTP/RTSP/IPv6/SNMP/SMTP
System clock	Built-in clock, support external synchronization
Remote management	Remote network upgrade
General
IP protection	IP66, TVS 4000V Lightning protection, surge prevention
Working temp.	-40ºC~70ºC
Operating humidity	0~95%(Non-condensing)
Storage temp.	-40ºC~70ºC;0~95%(Non-condensing)
Weight	Gross weight:21kg,net weight:11.6 kg
Rate of worl	67W MAX
Power	AC36V±25%, DC36V±10%

Production
Applicable Environment
Shipping
