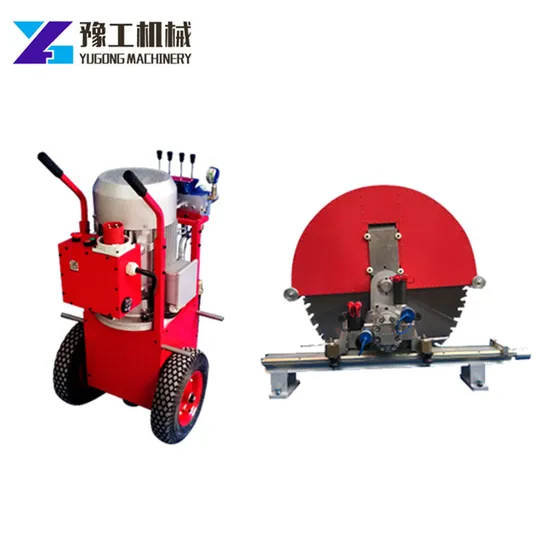

Electric Power Tool Concrete Wall Saw 320mm Full-Automatic Wall Cutting Machine

Product Description

Product DescriptionWall saw cutting machine is mainly used for cutting or slitting of reinforced concrete wall, brick wall or stone, building or old building renovation, reinforcement, change design, etc. It can cut large-area wall such as door hole, window or elevator hole. Cutting.
Application of the machine:
1. general reinforced concrete walls, board cutting, demolition or the door hole.
2. cutting surface required to be a smooth, straight, beautiful concrete cutting.
3. cutting depth according to the blade size adjustment, the current use
4. 1600 mm blade which Maximum cutting depth up to 600mm. The whole set of machine inculdes:
1. one frame with an electric motor, 220V, 50Hz, 6580w.
(We could customize the motor according to your requirement.)
2. one disk, 800-1000mm or customized.
3. one saw cover.
4. one set of rails, 1.2m*2 pcs.
5. one set of anchors
Simple Operation instructions:
1. fix the rails on the wall with anchors.
2. put the frame in the rails.
3. fix the disc and saw cover.
4. power on, then move the handle to cut.
(Middle handle is for disc in/out, side handle is for machine movement.)
Warranty of wall saw machine:
1. one year.
2. life time free technical support.

Model	YG-800	YG-1000	YG-1200
Voltage	220v	220v	220v
Power	6200w	6580w	6980w
Max. Cutting depth	320mm	400mm	500mm
Disk diameter	800mm	1000mm	1200mm
