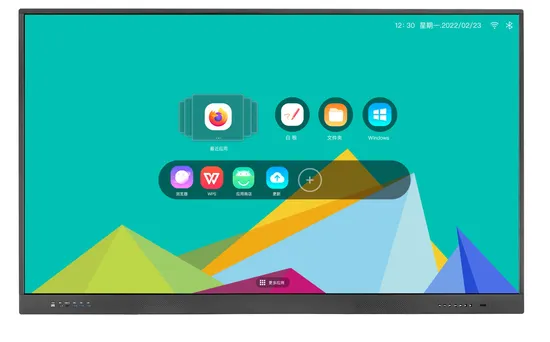

65 Inch IR 20 Point Touch Smart Board Interactive Flat Panel

Product Description

Packaging & Delivery
Packaging Details:
packed by pearl bag and then into carton
Delivery Detail:
7 working days depends on touch screen monitor quantity
Education hot sale multi touch screen monitor all in one PC with competitive price
Features:l
Size: 65''
Multi fingers touch, 10 Points of Writing Touch (32 Points touch);
3 years warranty for touching frame and give you zero risk and more profit;
Open frame and build-in line, easy repair and more safety;
High definition and soft backlight with competitive price;
Drawer-type OPS Box;
Manufacturer supplying SKD and OEM service;
Ultra-thickness colorful fashion design;
Product show
Riotouch LED All-In-One touch screen monitor is with TV, computer, touch screen kit and audio inside. The thickness of whole machine is only 10.7cm. The advantage of our LED touch screen monitor is touch screen kit on the front panel and drawer-style PC will be maintained easily.
20 points touch screen monitor all in one PC Production line, high visibility and soft backlight. 3 years for open touching frame, easy repair.
Touch screen monitor with colorful fashion desigh are very popular in school.
Specification
There is the first and only one LCM production line in China education market.
LED
LED panel size
65 inch
LED brand
CHIMEI(CMI)
Packing Parameters
Enternal Size
1599.4*902.4*77.2mm
Touch Size
1502.8*807.7
Net Weight
55KG
Gross Weight
75KG
Package size
170*26*110cm
Package size with wooden box
178*33*123cm
Power Parameters
Power:
<160W
Standard Power
<0.73W
Display Parameters
Active Display Area
1428.48 (H) x 806.1 (V)mm
0.630(h)x0.630(v)mm
Display Colors
1.07 billion colors
Contrast
1600:1
Resolution
1920x1080pixel
Brightness
300cd/m2
Viewing Angle
176 degree
Touch
parameters
Touch Technology
Infrared touch technology
Touch mode
Single, multipoint,Mouse click
Inductive objects
Finger, pen or any other opaque objects
Inductive size
Diameter≥5mm
Resolution
32767*32767
Response time
1) First dot(click):8ms, continuously(writing):3ms
2) multipoint click:firstdot(click):8ms,continuously(writing):8ms
3) Mouse click:first dot(click):8ms,continuously(writing):8ms
Cursor speed
UP to 300 dots/s Multipoint,mouse click:125 dot/s
Operating life
≥60,000,000 times to click
Power
USB power supply (4.6-5V, DC)
Power consumption
≤1w
Operation Systerm
Windows 8, windows 7, XP, Mac, Linux, Android
Calibration
HID devices standard, accord with Win7 multi-touch protocol, no need special software to calibrate, just use Table PC setting to finish the calibration.
Anti-light decay function
Anti-light decay circuits to prevent the performance degradation caused by long working hours
LED Test Software
Supply touch screen LED test software to test the function of each couple of the LED lights and the drawing functions
Antilight interference function
can work properly in direct sunlight condition
Packaging&Shipping
Package : 1 Set / carton ( carton Inside +wooden carton outside )
Delivery time: 4-10 working days after the payment
Our service
1. Supply free teaching software and OEM service for VIP customers.
2. Cheaper Price with high quality products.
3. Fast delivery and excellent sale and after-sale service
4. 3 years warranty of touch frame is guaranteed
FAQ
1. What is the infrared technology ?
Infrared technology is most popular now ,it's stable than other technology ,like CCD ,EM board
2. How many touch does the infrared technology support ?
Infrared technology support 32 touch points now , it's more than CCD ( the best is 4 touches and EM board is 2 touches )
3. Why I didn't sound you brand " RIOTOUCH '' before ?
We often OEM for good brand , If you want to OEM ,we also can support .
4. If you can support the teaching software ?
Yes ,We can support the teaching software freely or OEM software . It's including math ,English ,Physic ,Chemistry subject resource . Over 28 language and also support you local language .
