Loosen Dryer/Tensionless Drying Machine/Textile Machinery

Loosen Dryer/Tensionless Drying Machine/Textile Machinery

US$36,800.00-55,000.00 1 Piece (MOQ)

Basic Info.

Model NO.
FSHG2800
Appearance Quality Testing Machine Type
Color Fastness Tester for Dyeing Fabric
Fabric Style Testing Machine Type
Fabric Surface Uniformity Detector
Technological Characteristic Testing Machine Type
Fiber Fineness Tester
Textile Fabric Testing Machine Type
Fabric Strength Testing Machine
Universal Textile Testing Machine Type
Standard Color Light Box
Textile Simulated Environmental Testing Machine Type
Temperature and Humidity Loggers
Certification
CE, ISO9001: 2000
Condition
New
Drying Chamber
4/6/8
Chamber Length
8.67m/12.9m/17.13m
Speed
3~30/5~45m/Min
Demension
12880X4800X4500mm/17100X4800X4500/21330X4800X4500
Power
99.5/147.5/191.5kw
Power of Oil Heater
100/120/150
Transport Package
FCL
Specification
12880X4800X4500mm
Trademark
FINESTART
Origin
Jinan, China
Production Capacity
100units/Year

Product Description


Introduction

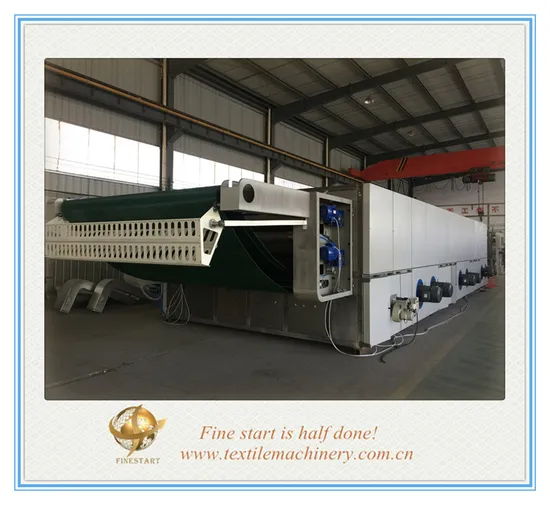

The drying machine is used for drying cylinder and open-width fabric with three-layer belt. Because of circulating drying and run under different speed, the fabric could keep in loosen circumstance without any tension during the drying process.
We provide corresponding machine according to different types of fabric to meet your requirements totally.
Based on the different width of belt, we could supply different models as following:
FSHG-2000mm/2400mm/2800mm/3200mm(standard)/3600 mm
Based on the different heat sources, we could supply the following models with six heating methods:
1. Steam (0.8MPa) 2. Steam (2.8MPa) 3. Heat conduction oil 4.Gas (direct combustion) 5. Gas (indirectly) 6. Biofuels
Our machines are equipped with conveyor belt made of Teflon material, it could bear high temperature and not pollute the fabric with non-staining.
Design Drawing
Typical Products Information
Basic Info
Model FSHG2800
Name Relax Dryer
Application Drying the fabric,eliminating exceeding water and achieving the natural moisture content of the fabric
Suitable Fabric knitted and Woven Fabric

Technical Dates
Max. Working Width 2400mm
Machine Speed 0-50m/min
Chamber Nos 4 Sets
Power Supply 380V·3P·50HZ
Weight of Machine ≈24.5T
Working Type Three-layor net belt cycling
Net Belt Type Glass fiber with PTFE coated
Driving Type for net belt PLC+Inverter control
Heat-setting Type Natural Gas heating hot air circulating
Max Drying Temperature 160ºC
Temp. control type Automatically regulate two chambers temperature as one section
Length of Chamber 2.1M
Thickness of Insulation Board 105mm
Machine Dimension L=12500mm W=4500mm H=3400mm

Cost & Consumption
No Item Max.Temp Specification Consumption
1 Natural Gas 160ºC P≈2Kpa - 3.5Kpa / 35544KJ /(8500KCal)/m³ 8-13m3/H·Chamber(6.5-10.5kg)
Electricity
No Item Specification Consumption
1 Chamber blower motor etc 22KW/section
2 Main Driving & Control Motor etc 16.5KW
Total Power 94.5KW
Working Consumption ≈40KW
Compressed Air source
No Item Specification Consumption
1 Compressed Air 0.35-0.6Mpa clean compressed air /

Other Products and Technology
Production Line
Payment Terms:
Payment Conditions: 30% down payment by T/T and the balance payment should be T/T or in irrevocable L/C at sight.
Delivery time: 30-60days from the date of receiving down payment. All payment should be received before delivery in China.
