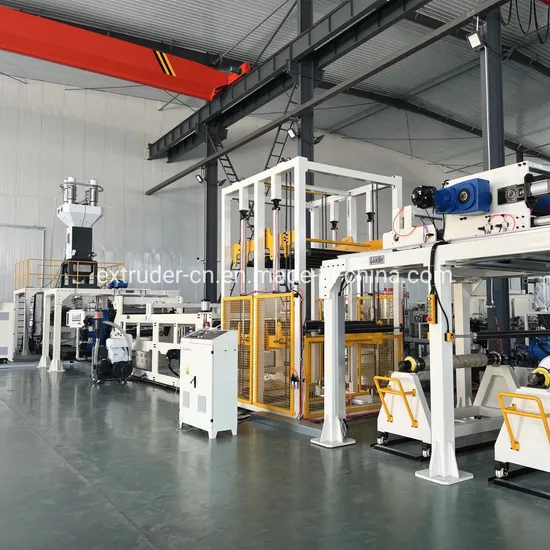

High Speed Polystyrene PP PS HIPS Pet APET Gpet Gag Plastic Sheet Extrusion Production Line

Product Description

High Speed Polystyrene PP PS HIPS PET APET GPET GAG Plastic Sheet Extrusion Production Line This line is specially designed for mono/multi Layer sheet for packing indrustry. The technology of "Single Screw extruding with low dew-point dehumidifying system " for high quality products in high transparency without buddle, which will be very important for thermoforming. Raw Material:1. can be virgin plastic material. PP, PS, PET, PLA, APET, GPET, GAG2. can be recyclable material, like PET Bottle Flakes, PP, PS PET granules SHEET SPECIFICATION:Usual Sheet Width: 600-800-1000-1200mmUsual Sheet Thickness: 0.2-2mm APPLICATION:1. This line is specially used for producing PET/PBT/PP/PE/HIPS/EVAOH sheet.2. Surface Treatment: Adding some additives can improve intensity/toughness/rigidity, flame retardant, embossing, frosting, etc.3. Application: Packing, printing, stationery, art works etc.4. Main Products: Gift/ad/file bag/lamp cover/food packaging FEATURES:1. Screw with special mixing and plasticization function.2. Coat hanger T-type die head with two throttle design enable to regulate the sheet thickness accurately.3. Horizontal. vertical, 45 degree incline type 3 Roller Calendars may be lifted freely, sheet thickness shall be regualted by screw and pressing roller.4. Separate roller temperature control system to control the temperature of pressing roller to gain even sheet thickness.5. Exact slicing machine, excellent cross surface.6. Winder with big torque motor, and it's speed and tension force adjustable.7. Automatic metering to set the length of the products.MAIN TECHNICAL DATA:

PAR T1 THIS LINE CONSISTS OF (COMPULSORY)
1	Automatic vacuum feeding machine			1 set
2	High efficiency single screw extruder (65/33, 75/33,90/33,120/33,150/33)			1 set
3	Hydraulic exchanging unit			1 set
4	Melting gear pump			1 set
5	T-type /hanger type die head (JC-Times brand)			1 set
6	Three Roller Calendars (alloy steel material )			1 set
7	Rollers thermoforming machine			1 set
8	Cooling frame and edge cutting unit			1 set
9	Haul off machine			1 set
10	Plastic cutting machine-guillotine			1 set
11	Twin position sheet winder			1 set
12	Stacker			1 set
13	Electrical cabinet (ABB,Omron, RKC,Siemens etc)
14	Spare parts			1 set
PART 2 ACCESSORY MACHINE PARTS (OPTIONAL)
1	Air compressor		1 set
2	Industrial water chiller		1 set
PART 3 SHEET SPECIFICATIONS
1	Sheet width	600-1200mm
2	Sheet thickness	0.2-2mm
3	Type	single layer/mono layer sheets or multi-layers
4	Raw material	1. Can be virgin plastic pet material 2. Can be recyclable material, like PET Bottle Flakes
PART 4 SHEET APPLICATIONS
1	Packing, printing, stationery, art works etc.
2	Main Products: Gift/ad/file bag/lamp cover/food packaging

Main Technical data:

Extruder Model	LMSB-90/33	LMSB-100/33	LMSB-120/33	LMS-100/65	LMSB-120/65
Sheet Width	300-610mm	500-950mm	1000-1500mm	500-950mm	1000-1500mm
Sheet Thickness	0.15-1.4mm	0.15-1.4mm	0.15-2mm	0.25-1.4mm	0.25-1.4mm
Driving Motor	75KW	90KW	132KW	90KW,75KW	132KW, 65KW
Line Speed	25m/min	25m/min	28m/min	28m/min	28m/min
Capacity	180kg/h	300kg/h	550kg/h	450kg/h	650kg/h

PART 5 COMPANY INFORMATION AND MAIN PRODUCTS:
PART 6 OUR RELIABLE SUPPLIERS:
PART 7 COMPANY CERTIFICATIONS:
PART 8 MACHINE PACKING AND DELIVERY
All the machine parts will be packed in wooden cases or pellets with stretching films on machine body.
PART 9 COMPANY OVERSEA SHOWS AND CONTACT DETAILS:
PART 10 OTHER KINDS OF PLASTIC SHEETS/PLATES EXTRUSION LINE RECOMMENDATION :
1. PET sheet extrusion machine:
Processing material: PET virgin pellets(APET or PETG) plus flakes; Or 100% flakes
Thicknes range: 0.2-1.5mm
Net sheet width: 650mm-1500mm(or as per cusotmer's requirement)
Layer structure: Signle layer or multi-layer
Capacity: 150-650kg/h
Application: Thermoforming(cup, bowel, etc. ), stationery, printing sheet, packaging, etc.

2. PP/PS sheet extrusion machine:
Processing material: PP/PS virgin pellets plus recycle material;
Thickness range: 0.15-2mm
Net sheet width: 650mm-720mm-1000mm-1300mm-1500mm(or as per customer's requirement)
Layer structure: Single layer or multi-layer
Capacity: 200kg/h-1000kg/h
Application: Thermoforming(cup, bowel, etc. ), stationery, printing sheet, packaging, etc.

3. ABS/HIPS sheet extrusion machine:
Processong material: ABS/HIPS virgin pellets plus recycle material
Thickness range: 1-6mm
Net Sheet width: 1200mm-1600mm-2100mm(or as per customer's requirement)
Layer Structure: Single layer or multi-layer
Capacity: 300-800kg/h
Application: Vacuum forming, thermoforming, refrigerator inner layer, suitcase, etc.

4. ABS/PMMA sheet extrusion machine:
Processing material: ABS/PMMA virgin pellets plus recycle material
Thickness range: 1-8mm
Net sheet width: 1200mm-1600mm-2100mm(or as per customer's requirement)
Layer structure: Single layer or multi-layer
Capacity:300-800kg/h
Application: Vacuum forming, bathtube, etc.

5. PE sheet extrusion machine:
Processing material: HDPE/LDPE/LLDPE virgin pellets plus recycle material
Thickness range: 1-2.5mm, 3-35mm
Net sheet width: 1200mm-1600mm-1800mm-2500mm-3000mm-40000mm-6000mm-8000mm
Layer structure: Single layer or multi-layer
Capacity: 200kg/h-1200kg/h
Application: Packaging, construction, water-proof, water-drainage, Geomembrane film, etc.

6. PC/GPPS/PMMA sheet extrusion machine:
Processing material: PC/GPPS/PMMA virgin pellets plus recycle material
Thickness range: 1-12mm
Net sheet witdh: 600mm-1220mm-2100mm(or as per customer's requirement)
Layer Structure: Single layer or multi-layer
Capacity: 200-600kg/h
Application: Ads., decoration, roofing, etc.

7. PC/PP/PE hollow profile sheet/ sunshine roofing panel machine:
Processing material: PC/PP/PE virgin material plus recycle material
Thickness range: 2mm-4mm-6mm-8mm-10mm-12mm
Net sheet width: 1220mm-2100mm
Layer structure: Single layer or multi-layer
Capacity:200-600kg/h
Application: Ads. Decoration, roofing, packaging, printing, etc.

8. PVC sheet/edge banding sheet/marble sheet machine:
Processing material: PVC power plus other additive
Thickness range: 0.15-1mm; 1-3mm; 3-12mm
Net sheet width: 650mm-2000mm-3000mm( or as per customer's requirements)
Layer structure: Single layer or multi-layer
Capacity: 200kg/h-500kg/h
Application: Thermoforming, stationery, printing, payment card, SIM card, construction, etc.

9. PVC free foam/celuka foam board extrusion line
board width: 1220mm, thickness: 1-10mm, 3-25mm
board application: decoration board, advertising boards, exhibition boards
extruder model: SJ-80/156 conical twin screw extruder
max capacity: 350kg/h
certifications: CE, ISO9001-2008

10. EVA car interior decoration sheet extrusion line
Processing material: EVA and other additives
Thickness range: 1-8mm
Width range: 1000-1800mm
Layer strcuture: single layer
Capacity: 700-800kg/h
Application: automotive sealing strips, sound insulation cushion, sound absorption sheets,
automobile tail box, fenders, car interior and exterior decoration parts etc.

11. PVC+PMMA Glazed roofing tiles/corrugated sheet extrusion machine
Processing material: PVC, PMMA and other additives
Thickness range: 1-8mm
Width range: 720mm, 880mm, 1040mm
Layer structure: A/B, A/B/A, A/B/C
Capacity: 400kg/h
Application: garden-style factory, tourist scenic spots, pavillions, hotels, family building etc.
