Industrial Water Cleaning High Pressure Hydraulic Rubber Hose DIN En857 2sc 1sc

Product Description

Product Description
Industrial Water Cleaning High Pressure Hydraulic Rubber Hose DIN EN857 2SC 1SC Tube: Oil resistant synthetic rubber
Reinforcement: Two high tensile steel wire braids
Cover: Oil and weather resistant synthetic rubber
Temperature: -40°C to +121°C
Application: Petroleum-based hydraulic fluid, water, diesel fuels, lubricating oils, glycol, mineral oils, and more.
Product Parameters

DN	Size		SAE	InsideØ mm		BraidØ mm		OutsideØ mm	WorkingPressure		Burst Pressure		Bend Radius	Weight	Length
	Inch	mm	Dash	Min	Max	Min	Max	Max	Bar	Psi	Bar	Psi	mm	Kg/m	m
6	1/4	6.4	-04	6.1	6.9	10.6	11.7	14.2	450	6525	1800	26100	75	0.28	50/100
8	5/16	7.9	-05	7.7	8.5	12.1	13.3	16.0	400	5800	1600	23200	85	0.36	50/100
10	3/8	9.5	-06	9.3	10.1	14.4	15.6	18.3	375	5438	1500	21750	90	0.41	50/100
13	1/2	12.7	-08	12.3	13.5	17.5	19.1	21.5	310	4495	1240	17980	130	0.59	50/100
16	5/8	15.9	-10	15.5	16.7	20.5	22.3	24.7	300	4350	1200	17400	170	0.63	50/100
19	3/4	19.0	-12	18.6	19.8	24.6	26.4	28.6	287	4162	1150	16675	200	0.80	50/100
25	1	25.4	-16	25.0	26.4	32.5	34.3	36.6	225	3263	900	13050	250	1.17	50

Our Strength:
1.We have 26 high-speed automatic braiding machines, monthly output up to 600,000 meters.
2.Only produce high quality products with very competitive prices
3.Faster Delivery based on mass production workshop and a lot of raw materials
4.Professional, Prompt sales team and After-sale Service

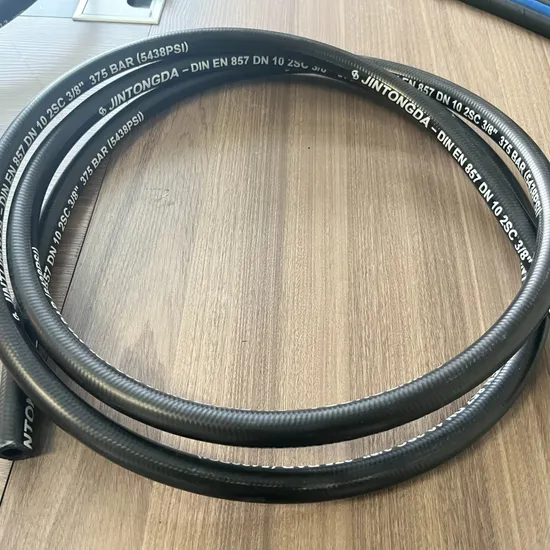

Product Images
Machinery & equipment
Packaging & Shipping
Certifications
Jintongda at the exhibition Company Profile
JUYE JINTONGDA PIPE INDUSTRY CO., Ltd is a professional manufacturer of hydraulic hose and industrial hose with various specifications from 1999. We integrates the Research&Development, Production, Sales Export and focus on the high quality products all the time.
Our company is registered with 21 million RMB capital, covering an area of 30,000 square meters. We are located in the alluvial plain of the Yellow River, with developed transportation and convenient logistics.
We specialize in production and sales of hydraulic hose, now we mainly produce 1SN, 2SN, 4SP and 4SH products in compliance with American standards of SAEJ517 and European standards of DIN.Our annual production capability is 10 million meters around (cloth hose 4million and smooth hose 6million). We use automatic high speed braiding machine and advanced quality management system to ensure the reliability and stability of the products. We have strict ISO quality control system and after-sales service system as well. Each batch of goods will do burst pressure tests and impulse tests before leaving factory.
Welcome customers domestic and abroad to visit and negotiate with JINTONGDA, we will serve you wholeheartedly. Sincerely awaiting for your visit!
FAQ
Q1.What is your terms of payment?
A: T/T 30% in advance, and the balance by the copy of BL.
Q2. What is your terms of delivery?
A: FOB, CIF, EXW, CFR, etc.
Q3. How about your delivery time?
A: Generally, 15 days for 1x20'GP, 25 days for 1x40'GP. The specific delivery time depends on the items and quantity of your order.
Q4. What is your MOQ?
A: Usually 500meters each size, and we can also accept the trial order. However, addional packing and operating cost maybe charged if delivered in LCL shipment.
Q5. Do you test all your goods before delivery?
A: Yes of course, we have 100% burst pressure test and impulse tests before delivery.
