Wholesale Full Series Linear 0.5A/0.6A High Efficiency NEMA23 17 Micro DC Electrical Hybrid Stepper Motor/Stepping Servo Motor with Cycloidal Gearbox

Product Description

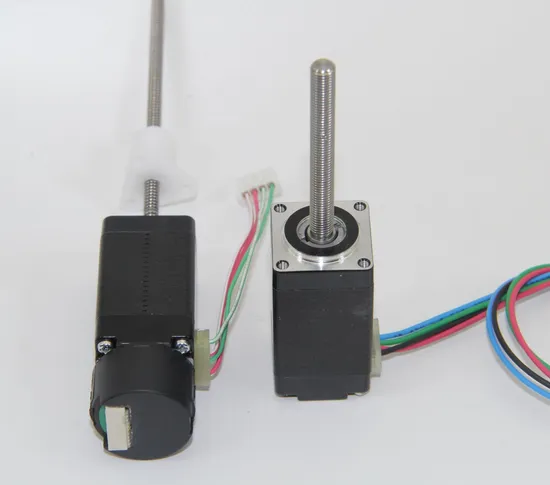

20 Screw Linear Stepper MotorDiscover the Wholesale Full Series Linear 0.5A/0.6A High Efficiency Nema23 17 Micro DC Electrical Hybrid Stepper Motor/Stepping Servo Motor with Cycloidal Gearbox from Changzhou Sino-Pan Electrical Co., Ltd. This Electric Motor offers constant speed and two-phase operation, making it ideal for universal applications. Get yours today! Product Description

Projects	Specifications
Temperature Rise	under 80K
Resistance Accuracy	±10%
Inductance Accuracy	±20%
Ambient Temperature Range	-10~ + 50°C
Ambient Humidity Range	20%RH - 90%RH
Insulation Resistance	100MΩMin.@500VDC
Insulation Class	Class B 130°
Step Angle Accuracy	±5%
Shaft Radial Play	0.06Max.(450g-load)
Shaft Axial Runout	0.08Max.(450g-load)

Product Parameters

Model	Current	Resistance	Inductance	Rotational Inertia	Holding torque	Body Length	Weight
	A	Ω	mH	g.cm2	N.M	mm	kg
20HS28-0504TS	0.5	14.3	8	1.6	0.018	28	0.05
20HS30-0504TS	0.5	11.5	1.7	1.8	0.02	30	0.06
20HS33-0604TS	0.6	6.5	2.2	2	0.022	33	0.07
20HS38-0604TS	0.6	10	5.5	3.2	0.044	38	0.08

Note: The above are standard parameters. Motor can be customized, and can be equipped with reducer, encoder and other devices.

Screw Diameter(mm)	Lead Distance of The Lead Screw(mm)	Adaptive Motor
Tr3.5	0.6096/1/1.2192/2/4	Through/external drive
Tr4.77	0.635/1.27/2.54/5.05/10.16	Through/external drive
Tr5	1/2/4/8	Through/external drive

This customizable motor can be equipped with a reducer, encoder, and other devices. It is a two-phase motor with a constant speed, suitable for universal applications.Detailed Photos
