Pet Preform Stretch Blow Moulding Machine

Product Description

PET Preform Stretch Blow Moulding Machine
1700-2300 bottles/hour, max: 0.6L, 2 Cavity

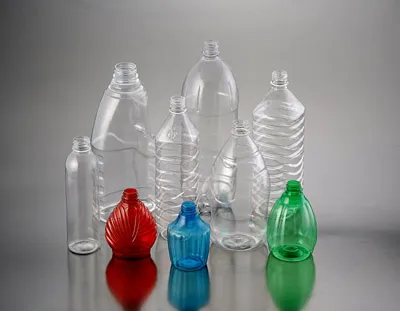

ZQ-A series, newly developed by our company, is a two-step automatic blow-molding machine, which requires labor to put performs into the preheater only. ZQ-A series is of one cavity and the maximum cavity of the bottles is 0.6L, 2.0L, 5L. It can blow various bottles in shapes: Carbonated, mineral, pesticide, cosmetics, wide-mouth, hot filling, and other packing containers, which is made of plastic of crystalline type, such as PET, PP etc.
Compared with other full-automatic series, ZQ-A series has no automatic conveyer, so it can't transfer performs automatically, but requires labors to put performs into preheater. The distinctive feature of the ZQ-A is as follows: It has saved the cost to the maximum extent; It has lower rejection rate, higher production, and more stable performance than the semi-automatic one, and moreover, it is easy to run. Therefore, it will take the place of the semi-automatic blow-molding machine.
PET Preform Stretch Blow Moulding Machine,equipment information.

TYPE	ITEM	ZQ-A600	ZQ-A600-2	ZQ-A600-3	ZQ-A1500	ZQ-A1500-2
CONTAINER	Number of cavity	1	2	3	1	2
	Output	1100-1400 pcs/hr	1700-2300 pcs/hr	3000-3300 pcs/hr	1000-1300 pcs/hr	1700-2100 pcs/hr
	Max. container volume	0.6L	0.6L	0.6L	1.5L	1.5L
	Max. neck diameter	38mm	38mm	38mm	38mm	38mm
	Max. container diameter	60mm	60mm	60mm	105mm	105mm
	Max. container height	260mm	260mm	260mm	350mm	350mm
ELECTRICAL SYSTEM	Number of lamp	14pcs	28pcs	32pcs	28 pcs	28pcs
	Max. heating power	9kw	22kw	32kw	22kw	42kw
	Installation power	12kw	25kw	35kw	25kw	44kw
	Actual power consumption	9kw	14kw	20kw	16kw	28kw
AIR SYSTEM	Operatating pressure	7kg/cm²	7kg/cm²	7kg/cm²	7kg/cm²	7kg/cm²
	Low pressure consuming	800Ltr/min	1000 Ltr/min	1200 Ltr/min	900 Ltr/min	1200 Ltr/min
	Blowing pressure	≤ 30kg/cm²	≤ 30kg/cm²	≤ 30kg/cm²	≤ 30kg/cm²	≤ 30kg/cm²
	High pressure consuming	1200-1600Ltr/min	1500-2000Ltr/min	2000-2500Ltr/min	1200-1600Ltr/min	2000-2500Ltr/min
CHILLER WATER	Operating pressure	5-6 kg/cm²	5-6 kg/cm²	5-6 kg/cm²	5-6 kg/cm²	5-6 kg/cm²
	Temperatuer	10° C	10° C	10° C	10° C	10° C
	Consuming	3600kcal/hr	5600kcal/hr	7600kcal/hr	3600kcal/hr	5600kcal/hr
	Flow rater	20Ltr/min	30Ltr/min	40Ltr/min	20Ltr/min	30Ltr/min
MACHINE	Machine dimension	2.5× 1.4× 1.7(m)	2.9× 1.55× 1.8(m)	3.4× 1.4× 1.8(m)	2.9× 1.7× 1.85(m)	3.1× 1.45× 1.85(m)
	Machine weight	1.5T	1.6T	1.9T	1.6T	1.8T

Note: The specifications are subject to change without notice for the further improvement.
Note: Custom production accepted. Any client idea tried.
