Basic Info.
Certification
CE, ISO, NF, Vds
Working Principle
Electro-Optical Type
Transmission Mode
Stand Alone
Alarm Volume (within 1m)
≥90dB
Model Type
Photoelectric Smoke Alarm Device
Authentication
Certification Test for En 14604:2005/AC:2008
Certificate
CE, Bsi, Ukca, CCC, RoHS, Reach, ISO9001, BSCI
Specification
120mm in diameter x 35.5mm depth
Product Description

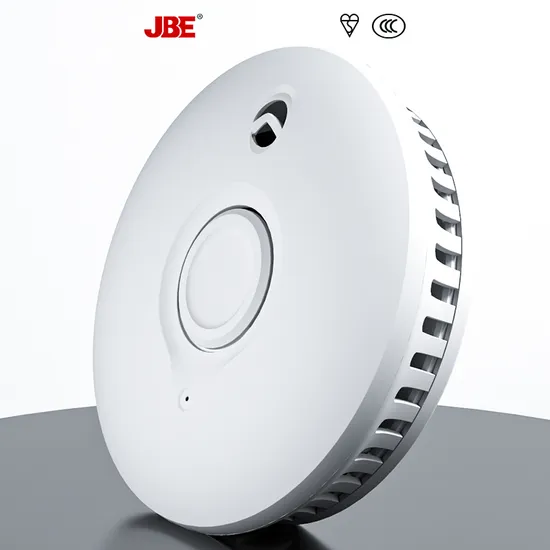

Built-in 3V lithium battery photoelectric smoke alarmTechnical Specifications:
Low Voltage Threshold | ≤2.6V | Power Source | DC 3V battery |
Hush time | 8 minutes | Quiescent Current | ≤ 5uA |
Product service life | >10 years | Alarm Sensitivity | 0.10-0.16dB/m |
Humidity Range | < 93% relative humidity (RH) | Comply with standard | EN 14604:2005/AC:2008 |
Temperature Range | 0ºC to 40ºC | Alarm Current | ≤ 60mA |
Size | 120mm in diameter x 35.5mm depth | Alarm Volume | >85dB(A) @ 3 meters |
Sound Pattern | (BI 0.5s - pause 0.5s - BI 0.5s - pause 0.5s - BI 0.5s - pause 1.5s, with the RED LED flash, repeat this alarm pattern) |
Zhejiang Jiaboer electronic technology co., ltd. is mainly engaged in the research and development, production and sales of various fire protection and safety electronic products. Our main products include various types of fire detection alarms, CO alarms, household gas alarms, heat alarms, intelligent wireless alarm systems, home security electronic products, low-voltage electrical products including wall switches, sockets, plugs, lampholders, junction boxes, which are mainly sold to European and Australian markets. The company occupies an area of 15,000 square meters and a building area of 35,000 square meters. Passed the ISO9001 quality system certification and ISO14001 environmental management certification system. Jiaboer has China's first class fire research and technical team and the world's most advanced German LORENZ smoke testing case, British AWT smoke testing case and other top research and development, testing equipment. Providing you with the highest quality security products and services is our constant pursuit. Join us to change the world with technology.
