Smart portable high and low temperature oil refrigerant thermostat /Thermostatic oil bath

Product Details

Product Description

Product Description
Product Overview

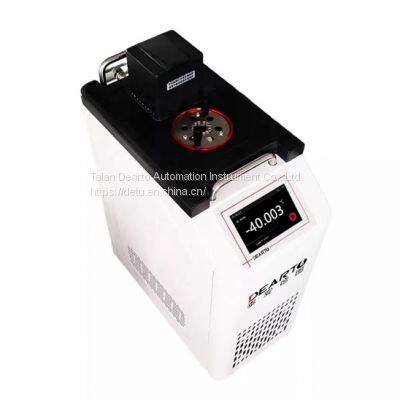

DTS-BG ultra-portable intelligent constant temperature oil bath is a high-precision automatic control temperature verification device, which has the characteristics of good temperature stability, uniform temperature field and high temperature control accuracy. Adopt fully enclosed compressor refrigeration system and intelligent PID adjustment to realize automatic temperature control. The bath is compact in structure, light in weight, easy to carry and durable. It is suitable for the on-site verification/ calibration of various types of industrial thermal resistance, low temperature thermocouples, armored thermocouples, working glass liquid thermometers, standard mercury thermometers, bimetal thermometers, pressure thermometers and other temperature sensors.
FEATURES AT A GLANCE
Operation interface
Starting interface
Curve display interface
Setting interface
PRODUCT SPECIFICATIONS

Product name	Intelligent micro refrigerated/heated thermostatic bath
Model	DTS-10BG	DTS-20BG	DTS-30BG	DTS-95BG	DTS-125BG	DTS-40BG
Temperature range	-10℃~180℃	-20℃~150℃	-30℃~150℃	-40℃~95℃	-40℃~125℃	Customized
		-20℃~180℃				-40℃~150/180℃
Control method	Touch screen
Display resolution	0.001℃
Temperature fluctuation	≤±0.02℃/10min（0℃）
Temperature uniformity	≤0.02℃（0℃）
Heating rate	6.5℃~11.5℃/min
Cooling rate	5℃~10℃/min（20℃）
Work area size	Φ80×280 mm
Dimensions（mm）	500(L)×220(W)×600(H)
Working medium	Special medium			Anhydrous alcohol	Special medium
Remarks	Flange size can be customized according to customer needs
