Amphibious Excavator for Dredging and Earth Moving
| US$78,000.00 | 1 Set (MOQ) |
Basic Info.
Model NO.
KDWS
Type
Crawler Excavator
Usage
Special Excavator, Marine Excavator, Mining Excavator
Bucket
Grab Shovel
Transmission
Hydraulic Transmission
Drive Type
Internal Combustion Drive
Bucket Capacity
0.5~1.0m³
Size
Medium-Sized
Certification
CE, ISO9001: 2000
Condition
New
Transport Package
in Container or Customized
Specification
Customized
Trademark
KEDA
Origin
China
HS Code
850000000
Production Capacity
60sets/Year
Packaging & Delivery
Package Size
1200.00cm * 300.00cm * 420.00cm
Package Gross Weight
200000.000kg
Product Description

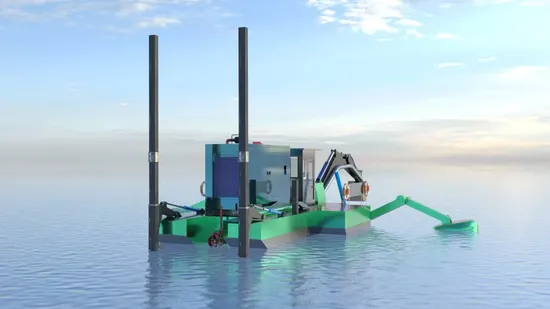

Amphibious excavator and water master type dredger
| KD-II mud master 2025 Including the following tool as standard: 1X0.6cbm backhoe bucket with teeth | |||
| No | Name | Specification | Remarks |
| 1 | Size(L*W*H) | 11*3.3*3.1m | |
| Transportation (withoutboom) | 11.8m | ||
| Transportation (with boom) | 16m | ||
| Transportation width*height | 3*3.1m | ||
| Transportation weight | 20ton | ||
| Max boom horizontal span | 7.5m | ||
| Cutter depth under water | 6m | ||
| Back hole dredging under water | 6m | ||
| Floating body size | 1.0m*2pcs | ||
3 | Engine | Cummin Made In China | |
| Cooling type | Turbocharged and inter-cooled | ||
| Power | 194kw (260hp) | ||
| Rotation speed | 2200r/min | ||
| Fuel tank | 1100L | ||
| Electric system | 24V | ||
| emission | euro III | ||
4 | Hydraulic System | Rexroth series | |
| Axial piston pump A | 125mL/R | ||
Max. operating pressure | 25MPa | ||
Propeller diameter | 520mm | ||
Propeller Blade | 3 blades | ||
| 5 | Excavator | ||
Amphibious excavator with crawler
| Item | Name | Details | Photo | |
1 | Carriage | Suitable for model 22 ton .: Single floating tank size: 9.5*1.5*1.9m (4mm,4mm,6mm steel) Width of the chassis: 4.6m Number of chains on each floating tank: 3 rows of chain rail Board material: high strength plate (Q355B) Paint grade: Marine grade anticorrosion paint | ||
2 | Side floater and spuds | Single floating tank size: 7.0*1.5*1.2m Positioning spud length: 8m,Diameter 219mm Positioning spud system: fully automatic hydraulic pressure | ||
| 3 | Motor | Doosan walk motor TM60 *2pcs | ||
| 4 | Arm | Arm complete: 12m | -- | |
| | ||||
welcome contact us for your excavator solutions . 008615092082156
