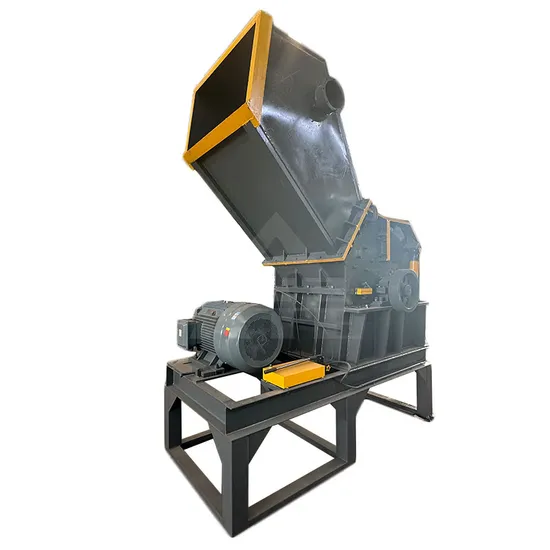

High Quality Hammer Mill Metal Scrap Iron Hammer Crusher Machine

High Quality Hammer Mill Metal Scrap Iron Hammer Crusher Machine

US$7,800.00
1-4 Sets
US$6,700.00
5+ Sets

Basic Info.

Model NO.
AITE-M3
Crushing Capacity
10-99t/h
Product Name
Scrap Metal Crusher Machine
Product Capacity
200 - 5000 Kg/H
Input Size
200-2200mm
Suitable Material
Metal
Final Product
5-50 mm
Motor
Famous Brand
Drive
Hydraulic
Compressive Strength (for Crushing)
>300MPa
After-Sales Service
Technical Support
Warranty
1 Year
Transport Package
Customize
Specification
Customize
Trademark
AITE
Origin
China
Production Capacity
5 Sets/M

Product Description

Product Description The scrap metal crusher is widely used in shredding scrap aluminum alloy, scrap engine, scrap radiator, broken bridge aluminum, water tank, copper wire,and other scrap metal materials....

Product Features 1. This production line has been researched by our company for many years, combined with the actual situation of the country, the processing process has lower metal loss compared with similar production line technology at home and abroad, reduces the number of broken times, and ensures that materials are separated in the maximum state, thereby reducing metal loss. The production of powder improves the efficiency of recycling. 2. The primary crushing adopts a crusher, which adopts a two-shaft double-roller design, which has low noise, high torque, and can crush large-volume radiators. 3. The vertical crusher has strong crushing capacity. It can easily crush the materials in the water tank by one-time crushing. It does not need to remove iron in advance. The hammer head is made of alloy material, and the service life is more than one year. 4. High degree of automation, only 2-3 staff are needed on the whole line. 5. The dust collection system is equipped in the treatment process, which effectively controls the dust overflow. 6. The sorting adopts two-stage specific gravity sorting to improve the sorting accuracy, and the purity of the sorted copper, iron and aluminum is >99%. Product Parameters
Model Size(mm) Crusher room(mm) Blads(mm) motor(k) weight(kg)
Aite-600 2800×1300×1850 600×480 200 11×2 2200
Aite-800 3000×1300×1850 800×480 200 15×2 2500
Aite-1000 3300×1900×2200 1000×690 300 22×2 5200
Aite-1200 3600×2000×2200 1200×690 300 30×2 6400
Aite-1500 4180×2100×2400 1500×850 550 55×2 9000
Aite-1800 5800×2400×3300 1800×1206 550 75×2 13600
Aite--2000 6400×2700×3500 2000×1490 600 90×2 20100
Aite-2500 7500×3200×3800 2500×1800 600 110×2 25000

Product Application Applicable Materials Metal crushers are used to crush metal waste such as automobile shells, scrap aluminum, thin scrap steel, waste paint cans, waste home appliances, oil filters, etc. The main purpose is to break up the metal and then roll it into a ball. At the same time, it can separate other impurities attached to the metal. The crushed material obtained by the scrap metal crusher has high density and high purity, and can be re-smelted into new products.
Product Detail
Company Profile
FAQ Q1: Are you a factory or a trading company?A1: We are a professional manufacturer in China, passed Made In China field certification.Q2: How long is the warranty period?A2: Normally 12 months. Except for wearing parts.Q3: What's your delivery time??A3: We will arrange for shipping in factory within 15 working days after receiving the advance payment. We provide the entire waste sorting line, including factory design, circuit routing, equipment placement, etc. Please feel free to contact us for details. Welcome to factory to discuss business cooperation.
