ASME GB 1000kg LPG Gas Tank for Africa

Product Description

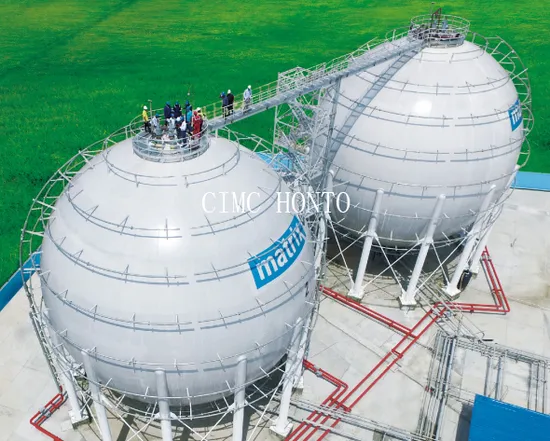

Product Description LPG Spherical Tank
CIMC HONGTU has the design and fabrication capability of large ASME codes spherical tanks and owns 5 sets of large hydraulic pressing machine. The maximum pressing capacity for spherical shell plate is 80mm. Besides, HONGTU can also construct the spherical tanks made of special steel such as stainless steel, stainless steel clad carbon steel plate, 9Ni steel and etc., and owns relevant project references. Design Code: ASME BPVC VIII-1/VIII-2, GB/T 12337, JB/T 4732
Capacity: 50m3~10000m3 Liquid Gas Spherical Tank, 200m³~20000m³ Gas Spherical Tank
Main Material: SA516, SA537 CL1, SA537 CL2, Q370R
Product Parameters

ASME Standard
Capacity (m3)	600	1500	2000	3000	5000	6000	8000
Fluid	LPG
Main Material	SA516	SA516	SA537 CL1	SA537 CL1	SA537 CL2	A537CL2	A537CL2
Filling Ratio	0.9	0.85	0.9	0.9	0.9	0.9	0.9
Tank Net Weight (KG)	84395	258610	288617	431223	636868	732400	893620
Design Pressure (MPa)	1	1.77	1.77	1.77	1.8	1.77	1.42
Working Pressure (MPa)	0.8	1.57	1.4	1.57	1.7	1.57	1.2
Design Temperature (ºC)	-52/35	-20/50	-20/50	-20/50	-40/50	50	-30/50
Working Temperature (ºC)		-18/40	35	-15/40	-35/40	40	-15/40
Corrosion Allowance (mm)	2.0	1.0	1.5	1.5	1.5	1.0	2.0
Wind Pressure (Pa)		1035	1500	1500	2000	1500	3200
Snow Pressure (Pa)		--	--	--	300	--	--
Seismic Intensity	6 degree	7 degree	7 degree	7 degree	8 degree	8 degree	8 degree

Chinese GB Standard
Capacity (m3)	750	1500	2000	3000	4000	5000	6000
Fluid	LPG
Main Material	Q370R	Q370R	Q370R	Q370R	Q370R	Q370R	Q370R
Filling Ratio	0.9	0.9	0.9	0.9	0.9	0.85	0.9
Tank Net Weight (KG)	106673	205128	286054	438842	535775	676712	792404
Design Pressure (MPa)	1.77	1.77	1.77	1.77	1.77	1.77	1.77
Working Pressure (MPa)	1.57	1.57	1.71	1.77	1.57	1.2	1.57
Design Temperature (ºC)	-20/50	-20/50	-15/50	-19/50	50	50	-19/50
Working Temperature (ºC)	40	40	40	-10/45	0/40	17/40	-15/45
Corrosion Allowance (mm)	1.0	1.0	1.5	1.0	1.0	1.5	1.5
Wind Pressure (Pa)	600	600	500	450	750	890	700
Snow Pressure (Pa)	600	600	450	400	350	--	400
Seismic Intensity	7 degree	7 degree	8 degree	7 degree	7 degree	7 degree	7 degree

*Please contact for more different kinds of tanks with different capacity and standard.

Certifications
Packaging & Shipping
Installation Instructions
Company Profile
CIMC ENRIC. Jingmen Hongtu Special Aircraft Manufacturing Co., Ltd.
Jingmen Hongtu Special Aircraft Manufacturing Co., Ltd (hereinafter called HONGTU, and branded as HONTO) has made prominent contributions to the development of China's aviation industry since established in 1971 as the AVIC Corp II factory No. 322. Now, Hongtu as a key enterprise under China International Marine Containers (Group) Ltd. (CIMC) (ranked the 68th in China's Top 500 businesses), is engaged in R & D of normal temperature storage & transportation equipment, cryogenic storage & transportation equipment, EPC services, chemical equipment and other types of energy chemical storage & transportation equipment. The Company has more than 1,300 employees, including approx. 200 R&D professionals, and has workshop area totaling 130,000 m2.In the 1980s, HONGTU entered into the industry of hazardous chemicals storage & transportation equipment manufacturing based on the advantages of aviation technology, providing customers with individualized and integrated solutions in the fields of hazardous chemicals'storage & transportation, gasification in cities/towns and vehicle/vessel's oil-to-gas transformation.The Company always leads the development of the industry. The production and sales of "HONTO" Brand LPG tanker has been ranking No.1 in China in the past 36 years. The domestic market share of HONGTO reaches over 60% all along. HONGTU has been engaged in the manufacturing of energy and chemical storage & transportation equipment for over 3 decades and is also China's only LPG full-industrial chain equipment manufacturer and solution provider.The Company has ASME "U" and "U2" Stamps Qualification and all Chinese National Permits for design, manufacture and installation of various pressure vessels, spherical tanks, urban gas pipeline projects and marine fuel tanks, and has developed and drafted a number of national standards on pressurized and non-pressurized products of China.The Company provides global customers and partners with safe, efficient and value-added energy and chemical storage &transportation equipment under the concept of providing service in the full product life cycle and creating values for customers, through the three-in-one marketing mode of brand communication, product sale and lifelong service, and is committed to become a leading competitive supplier with in the field of global energy chemical industry."HONTO" brand LPG storage and transportation equipment has been distributed to more than 40 countries & regions in North America, South America, Southeast Asia, South Asia, Middle East and Africa, etc.

Our Advantages
01 Powerful R&D Ability
HONGTU has been rated as "Hubei Province Technical Center for Pressure Vessels", "Hubei Province Workstation for High-skilled Talents", etc. We have acquired more than 120 patents through the "Producing, Learning and Researching" practice, and frequent technical communications and cooperation with China Standardization Committee on Boilers and Pressure Vessels, China Classification Society, Tsinghua University, Shanghai Jiao Tong University, Zhejiang University, Fuzhou University, Huazhong University of Science and Technology, YPDI(Nanjing Yangzi Petrochemical Design Engineering Co., Ltd.), Burg Industries B.V., TGE GAS INVESTMENT SA, Department of Energy Business(DOEB in Thailand), Australia MLI company, and other Government agencies at home and abroad, Universities, famous companies in the industry.
02 Top Expert Team
We have more than 330 professional technical staff, 30 senior engineers(including 5 Researcher-level Engineers), about 500 staff who are multi-skilled technical talents and senior technicians, 9 outsourced experts and professors employed in the industry. We are the Editorial Board of the China National Boards of Supervision Regulation on Safety Technology for Transportable Pressure Vessel; We have participated in the compiling of many other standards, such as Road Tanker for Liquefied Gas, Road Tankers for Cryogenic Liquid, Supervision Regulation on Safety Technology for Transportable Pressure Vessel, Road Tanker for Dangerous Liquid Goods Transportation.
03 Strong Production Capacity
HONGTU has been facilitated with more than 2000 sets of equipment, such as plasma cutting machines, US Lincoln welding machines, welding robots, all kinds of large and medium-sized rolling machines, beveling machines, cranes, heat treatment furnace, NDT equipment, 2000 tons of spherical shell press machines and other large heavy equipment. Among them, there are more than 200 sets of testing equipment.
04 Comprehensive Industrial Chain Solution
HONGTU has been engaged in manufacturing of energy and chemical storage & transportation equipment for over 3 decades. Focusing on the production, storage and transportation, application and intensive processing of upstream, midstream and downstream liquefied petroleum gas industry chain, HONGTU forms complete industrial equipment cluster from oil refining device, spherical tank, large scale flat bottomed vertical tank to mounded type tank, from lightweight and large-volume liquefied gas tanker to core equipment manufacturing of various types of end applications and engineering application, is China's only LPG whole industry chain equipment manufacturer and solution provider.
05 Scientific and Rigorous QA&QC System
HONGTU has a sound quality assurance system and perfect quality control procedures. Products from the entry of raw materials to the delivery to the user must pass 111 quality control points, 243 quality control procedures and 47 procedure document reviews. Annual radiographic inspection films of the products exceed more than 400,000 copies and each product quality files keep for more than 20 years, so each weld quality can be tracked. HONGTU continues to carry out the LEAN Management, introduce the ONE module, passes the HSE system(quality, occupational health and safety, environment) certification and realizes the comprehensive management of information, quality and workers in the manufacturing site.
06 Professional Services and International Marketing Network
HONGTU has its own international business network and a sound international business organization structure, including 50 plus professionals engaged in technical service and overseas marketing, dedicated to providing overseas customers with technical consultation, business negotiation, product service, personnel training and a full range of integrated solutions services, and has built a three-level service assurance system comprised of salesperson, engineer and professional service personnel.
