Closed Poultry House System/ Automatic Chicken Broiler Farm Equipment

Product Description

Automatic Broiler House Equipment for Broiler Raise
I. Product details
Our automatic poultry farm equipment consists of:
1.Automatic main feed delivery system;
2.Automatic pan feeding system;
3.Automatic nipple drinking system;
4.Ventilation system;
5.Environment control system;
6.Cooling pad system;
7.spraying system;
8.heating system
9.curtain system
Generally the height of poultry houses is between 2.5m-3.5m (at eaves). The width of the poultry houses is decided according to then layout of equipment inside and cannot be too large considering ventilation. Steel structure poultry houses are usually designed with the width of 8-15m. Length is better no larger than 140m.
We supply the whole system for Automatic Chicken Feeding System:
1. Main feed delivery line
(1. )Main feeding system is a complete set of automatic feeding system, included a material conveying pipe, silo, auger, drive motor and a feed level sensor.
(2) Main Feed line is mainly used to deliver feed from silo to the hopper in the poultry house. There is one feed sensor at the end of main feed line, which can control the drive motor on and off to realize automatically feeding.

Manpower hopper or silo	600/800kg hopper, 5/8/10/15/18/20mt silo
Motor	Taiwan brand Power: 0.75Kw/1.1Kw Voltage: 380V, three-phase/220V, single-phase/others
Main feed line	Diameter of pipe: 75mm Material: PVC
Auger	Origin: South Africa Feeding ability: 1400Kg/h (maximum)
Sensor	Origin: Germany

Different specifications of silos are alternative to choose according to the daily consumption.
Material of silo consist of galvanzied sheet and glass fiber reinforced plastic.
*If you don't use silo, you can use manpower hopper. Usually, if you just build one or two chicken house ,we suggest you use hopper instead of silo.
2. Automatic pan feeding line system

V-shape bin (with hopper)	Bin volume: 100L Material: hot-dip galvanized sheet
Motor	Power: 0.75Kw/1.1Kw/1.5Kw Voltage: 380V, three-phase/220V, single-phase/others
Delivery pipe	Diameter of pipe: 45mm Material: hot-dip galvanized steel
Auger	Origin: South Africa Feeding ability: 450Kg/h (maximum)
Feed pan	Pan distance: 4 pans/3m, 3 pans/3m Raising ability: 45-55 birds/pc Material: pure engineering plastic
Sensor	Origin: Germany
Suspension &lifting device	We can adjust the feeding line by winch.
Anti-perching device	It prevents birds staying on the feeding line for too long.

*There is a sensor at each feeding line which controls motor on and off to achieve automatically feed delivery.
The motor will start working and deliver feed when the feed pan (with sensor)
lacks feed and will stop working when the feed pan (with sensor) is full of feed.

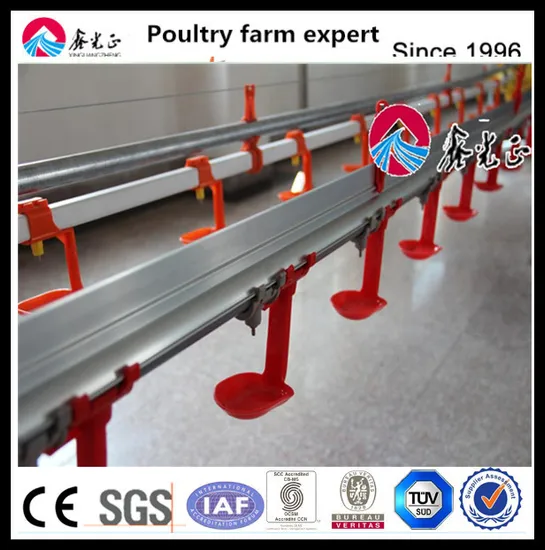

3. Automatic nipple drinking line system
This system can provide fresh and clean water for poultry which is crucial for the growth of Poultry.
The drinkers can be triggered from 360 degree which helps young birds start well and makes drinking easier.

Waterline front system	filter pressure regulating valve water meter medicator(doser)
Water pipe with nipple drinker and drip cup	Nipple distance: 16 nipples/4m, 12 nipples/3m Raising ability: 8-12 birds/pc Nipple material: inside valve is made of stainless steel, shell is made of plastic Drip cup material: pure engineering plastic
Suspension lifting device	We can adjust the drinking line by winch.
Waterline end module	water display tube, etc

4. Automatic ventilation fan system

Specifications	50'' box fan	36'' box fan
Flow amount (m3/h)	41000	20800
Size (L*W*H) (mm)	1380*1380*450	1000*1000*450
Noise level	≤65DB	≤64DB
Power	1.1Kw	0.4Kw
Voltage	380V/220V/others	380V/220V/others
Current	2.8A	1.6A
Weight	88Kg	66Kg

*The system controls climate condition, can provide fresh air, proper humidity and temperature for birds, ensuring your chickens provide maximum production.
*The system including ventilation fan (box fan or butterfly cone fan) and air inlets.
*If your chicken farm is open, there is no need to use 36'' fan and air inlets, however, you
might need curtain system.
5.Cooling pad system:
Thickness:100mm; 150mm
Width: 600mm
Height(with frame):1660mm;1960mm;2160mm
Frame: Galvanized sheet/Aluminium alloy
*When the air goes through the pad, the heat will be took down by the evaporation of water, so
the air will be cooled before going into the chicken farm.
6. Environment control system
*The system saves labor and resources under the condition of assuring the optimum growth environment of chickens.
*It is imported from Israel can set an optimum working mode according to the local climate
and raising environment.
7. Spraying and disinfecting system
*It's effective tool for cooling, damping, dedusting and disinfecting the house.(the tem-Perature is quickly reduced by 3-8 degrees centigrade within a few minutes)
8.Heating system(heater):
*Proper temperature is critical to chickens, especially day-old chicks, we have different kinds,
they fire coal, diesel, gas or use electricity, 4 kinds for your option.
9.Curtain system:
*In some tropical zone, the farmers are inclined to use curtain instead of real walls(open farm),
they will use big fan accordingly.
*Our curtain have two kinds for your choice, manual operated one and motorized one.

10.Plastic floor covering system:
*Plastic floor covering system is the best cooperation of auto manure cleaning system.
*Our floor is 100% raw material can guarantee a long using life.
11.Steel Structure Chicken House:
30 years' lifespan steel structure poultry house.Painted and galvanized for choosing.
