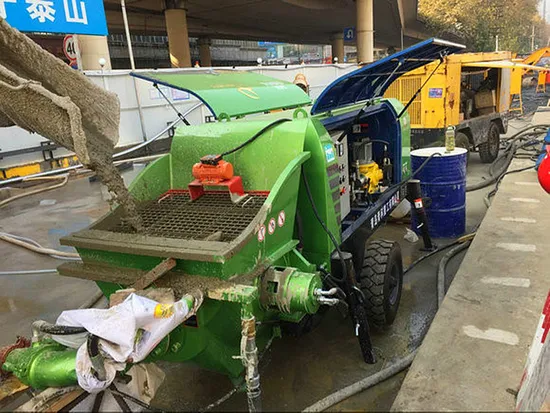

Mini Diesel Engine Concrete Spray Machine with 8 Cubic Per Hour Capacity

Product Description

Concrete Spray Machine is an advanced product in shotcreting technology enabling continuous flow with minimum rebound ensuring coverage of maximum area in shortest possible time thereby increasing the overall productivity of project. The wet shotcrete machine is often used to spay out the finished concrete mixed with accelerator from its nozzle to the construction surface. The nozzle is installed at the outlet of the pipe and the air is compressed and the concrete is ejected. SAINTYOL DAWIN wet shotcrete machine is engineered with high quality wearing parts, variable displacement plunger pump, novel developed cam track and rolling body to obtain higher reliability and high concrete spaying efficiency and uniformity. our Wet shotcreting machine features simple structure, reliable working performance, high efficiency, decreased dust, small shape, light weight, low concrete consumption, reduced rebound resilience, saving material, It is extensively used for concrete spraying, filling, grouting, pumping in construction projects in mine, culvert, construct foundation pit support, channel slope protection, etc.
Both of them are commonly used for pouring such thin-walled structures as tunnel lining, walls and ceilings, as well as the covering layer of steel structure.
Dry spraying machine mixes cement, sand and gravel in a dry and evenly state, a method to compress the air to deliver materials to the nozzle where they are mixed with pressure water for pouring; it must be operated by skilled personnel, and the particle size shall not be too large, however, as large amounts of cement are required and the jet velocity is large, which lead to severe dust pollution and rebound, its usage is thereby restricted.
Wet spraying machine delivers well mixed concrete to the nozzle through conveying and pumping, and compressed air is added at the outlet of delivery pump, which makes materials and air fully integrate with one another in the pipe, so that perfused materials become more even. In addition, accelerator is sprinkled on the nozzle for making materials solidify rapidly and reducing the rebound rate. Besides, its working efficiency is higher than dry spraying machine as the mixture of materials can be easily controlled.
Wet spraying machine is widely used for concrete spraying operation in places such as mine, tunnel, culvert, railway, hydro-power project, underground engineering and revetment.
Main Characteristics of Hydraulic Pump-type Wet Spraying Machine
The system is more reliable and delivery capacity is stable in adopting hydraulic pumping.
It has large volume of delivery, long distance of delivery and high efficiency of construction.
Sprayed concrete is of high performance and strength, as well as being dense and homogeneous.
,PLC.
The main oil pump adopts variable displacement piston pump of constant power; and the delivery amount, which can be freely adjusted according to needs, is controlled by PLC.
S pipe surfacing electrode of high strength, wear plate and cutting ring are inlaid with hard alloy of high strength, which not only improves the wear resistance, but increases the service life of parts.
It is equipped with multi-point electric lubricating pump. And together with automatic and effective control of grease's filling amount and time, contributing to the fact that the service life of wear-out parts are effectively increased
Air cooling avoids damage caused by water cooling in winter.
Accelerator is added and controlled by metering pump of domestically famous brand, achieving accurate measurement and realizing stepless speed regulation.
Harm on the health of operator is reduced by lowering dust concentration beside the machine and of the nozzle.
Humanized design of product makes operation and maintenance become easier, with reliability effectively guaranteed as well.
Configuration of Hydraulic Pumping Wet Spraying Machine:.
Power System: it adopts motor and diesel engine of domestically famous brand.
Main Oil Pump: it adopts variable plunger pump, which guarantees the stable and reliable operation of system, while its overpressure relief function realizes the effective protection of main pump and motor.
Lubrication System: it adopts separate lubrication of five points, and "point-to-point" lubrication guarantees that critical parts won't be worn out, thus increasing their service life.
Accelerator Metering Pump: reciprocating piston diaphragm pump is of high temperature resistance, erosion resistance and abrasion resistance, with high accuracy of measurement, and its speed can be regulated steplessly.
Characters of electronically controlled reversing system: low pumping pressure and high reversing speed, which reduce reversal impact and operator's labor intensity; two separate hydraulic circuits make the oil supply of system more stable; operation becomes simple and reliable through accurate control of PLC, which increases reversal speed of swing cylinder while reducing the reversal impact, at the same time, instantaneous action of large cylinder's reverse is accelerated, making concrete cylinder become substantial, increasing the continuity of materials supply and realizing even discharge.

	Item	Unit	Parameter
Concrete pump	Max. theoretic concrete spray volume	m³/h	8
	Max. theoretic delivery pressure	Mpa	7
	Max. delivery frequency	Times /min	16
	Type of distribution valve		S tube valve
	Main oil cylinder specification: cylinder dia./role dia.× stroke	mm	Φ140×1200
	Diameter of delivery cylinder	mm	Φ100
	Hopper Height	mm	1140mm
Power system	Engine Model		1004-4 LOVOL
	Power	kw	56
	Rated Voltage	V	24VDC(2*12V,110Ah)
	Rated Speed	r/min	2200
	Fuel Tank	L	70
Hydraulic system	Type of Hydraulic oil circuit		Open circuit
	Maximum oil pressure of main system	Mpa	25
	Hydraulic oil tank volume	L	200
Other parameters	Max. stone diameter	mm	≤15 When spray
	Pipeline inside diameter	mm	Φ57
	Boundary dimension	mm	4500*1500*1550
	Weight	kg	2300
	Towing peed	km/h	≤8

Technology:
use S-valve to switch the direction, for fine stone concrete conveying
good sealing S-valve, installed with floating wear resistant ring
High-quality wear resistant alloy components for long service-life
high delivery pressure for demand of high-rise and long distance projects
double-loop open circuit hydraulic system, ensure fast direction switching speed and high efficiency
air cooling system, without dependence of external water supply
with re-pumping function to smooth construction of better accessibility
automatic lubrication system for long service-life
PLC system to ensure best electrical control performance
equipped with wired remote controller, easy to operate

Areas of application:
The SAINTYOL DAWIN Machinery wet concrete shotcrete pump are based on technical pioneer achievements. They keep researching and developing new technology - and have been doing so for many years!They are the national initiative equipment for fine stone concrete conveying and won two national patents.
·Fine stone concrete conveying
·Floor heating construction
·Tunnel and underground construction
·Mortar conveying
·Used as spray pump when Installed with incidental spraying equipment, for concrete, mortar, refractory material and green soil spraying
DSPJ08-07-56 wet concrete shotcrete pumpare applied for high-rise conveying, railway, tunnel, bridge construction and special applications, hydraulic power, mining and national defense.
