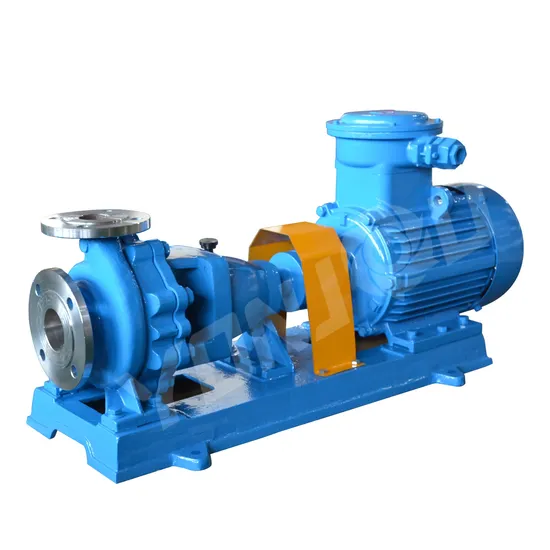

Ih High Volume End Suction Single Stage Stainless Steel Water Chemical Centrifugal Pump for Acid Feed Processing
| US$400.00-7,570.00 | 1 Set (MOQ) |
Basic Info.
Model NO.
IH
Max.Head
110m-150m
Max.Capacity
>400 L/min
Driving Type
Motor
Impeller Number
Single-Stage Pump
Working Pressure
Low Pressure Pump
Influent Type of Impeller
Single Suction Pump
Position of Pump Shaft
Horizontal Pump
Mounting Height
Suction Centrifugal
Impeller
Closed
Usage
Pump, Pumps, Circulating Pump
Certificate
ISO9001:2008
Place of Origin
Zhejiang, China (Mainland)
Brand Name
Yonjou
Model Number
Ih
Theory
Centrifugal Pump
Structure
Single-Stage Pump
Fuel
Diesel or Motor Driven
Application
Pullution Discharge
Color
Red/White/Blue/Orange/Yellow/Green/Black
Frenquency
50Hz or 60Hz
Voltage
220V, 380V or More
Flow Rate
6.3-400 M3/H
Head
5-125 M
Power
0.55-110 Kw
Transport Package
Standard Export Plywood Case Packing
Specification
International
Trademark
YonJou
Origin
China
HS Code
8413110000
Production Capacity
8000sets/Year
Packaging & Delivery
Package Size
110.00cm * 80.00cm * 70.00cm
Package Gross Weight
250.000kg
Product Description
Be used for industrial and urban water supplying, drainaging, also for agricultural irrigation.Can delivery water or liquid that physical and chemical similar to water.
Liquid temperature shall not higher than 80 ºC, suction pressure not more than 0.3 Mpa.
Normally shaft seal is packing seal, mechanical seals is available for choice.
1.IR Single stage end suction HOT WATER centrifugal pump
2.Be used in metallurgy, textile, chemical, printing & dyeing and other industrial field
3.Can delivery liquid with solid impurities that volume contain no more than 0.1% and particle size not bigger than 0.2mm.
4.Liquid temperature shall not higher than 150ºC, suction pressure not more than 0.4Mpa.
5.Shaft seal is water cooling mechanical seal.
Capacity: up to 400m3/h
Diameter Inlet: 50-150 mm
Diameter Outlet: 32-125 mm
Head : up to 125 m
Turn Speed: 1450/2900 r/min
The medium shouldn't surpass 120degree Celsius.
More details can be negotiated
| Model | Capacity | Head | Power | Effeciency |
| (m3/h) | (m) | (kW) | (%) | |
| 50-32-125 | 12.5 | 20 | 2.2 | 60 |
| 50-32-125 | 6.3 | 5 | 0.55 | 54 |
| 50-32-160 | 12.5 | 32 | 3 | 54 |
| 50-32-160 | 6.3 | 8 | 0.55 | 48 |
| 50-32-200 | 12.5 | 50 | 5.5 | 48 |
| 50-32-200 | 6.3 | 12.5 | 0.75 | 42 |
| 50-32-250 | 12.5 | 80 | 11 | 38 |
| 50-32-250 | 6.3 | 20 | 1.5 | 32 |
| 65-50-125 | 25 | 20 | 3 | 69 |
| 65-50-125 | 12.5 | 50 | 0.55 | 64 |
| 65-50-160 | 25 | 32 | 0.5 | 65 |
| 65-50-160 | 12.5 | 5 | 0.75 | 60 |
| 65-40-200 | 25 | 50 | 7.5 | 60 |
| 65-40-200 | 12.5 | 12.5 | 1.1 | 55 |
| 65-40-250 | 25 | 80 | 15 | 50 |
| 65-40-250 | 12.5 | 20 | 2.2 | 46 |
| 80-65-125 | 50 | 20 | 5.5 | 75 |
| 80-65-125 | 25 | 5 | 0.75 | 71 |
| 80-65-160 | 50 | 32 | 7.5 | 73 |
| 80-65-160 | 25 | 8 | 1.5 | 69 |
| 8050-200 | 50 | 50 | 15 | 69 |
| 80-50-200 | 25 | 12.5 | 2.2 | 65 |
| 80-50-250 | 50 | 80 | 22 | 63 |
| 80-50-250 | 25 | 20 | 3 | 60 |
| 80-50-315 | 50 | 125 | 37 | 54 |
| 80-50-315 | 25 | 32 | 5.5 | 52 |
| 100-80-125 | 100 | 20 | 11 | 78 |
| 100-80-125 | 50 | 5 | 1.5 | 75 |
| 100-80-160 | 100 | 32 | 15 | 78 |
| 100-80-160 | 50 | 8 | 2.2 | 75 |
| 100-65-200 | 100 | 50 | 22 | 76 |
| 100-65-200 | 50 | 12.5 | 4 | 73 |
| 100-65-250 | 100 | 80 | 37 | 72 |
| 100-65-250 | 50 | 20 | 5.5 | 69 |
| 100-65-315 | 100 | 125 | 75 | 66 |
| 100-65-315 | 50 | 32 | 11 | 63 |
| 125-100-200 | 200 | 50 | 45 | 81 |
| 125-100-200 | 100 | 12.5 | 7.5 | 76 |
| 125-100-250 | 200 | 80 | 75 | 78 |
| 125-100-250 | 100 | 20 | 11 | 76 |
| 125-100-315 | 100 | 32 | 15 | 73 |
| 125-100-400 | 100 | 50 | 30 | 65 |
| 150-125-250 | 200 | 20 | 18.5 | 81 |
| 150-125-315 | 200 | 32 | 30 | 79 |
| 200-150-250 | 400 | 20 | 37 | 79 |
| 200-150-315 | 400 | 32 | 45 | 79 |
Company information:
Zhejiang Yonjou Technology Co., Ltd is one of the leading manufacturers and exporters in the field of industry pumps with manufacturing facilities in mainland China. We are specialized in oil pump, diaphragm pump, diesel engine pump, centrifugal pump, screw pump, chemical pump etc.
