Adhesive LED Flexible Transparent Display Soft Crystal Film Screen for Glass

Product Description

Product DescriptionFlexible transparent screen

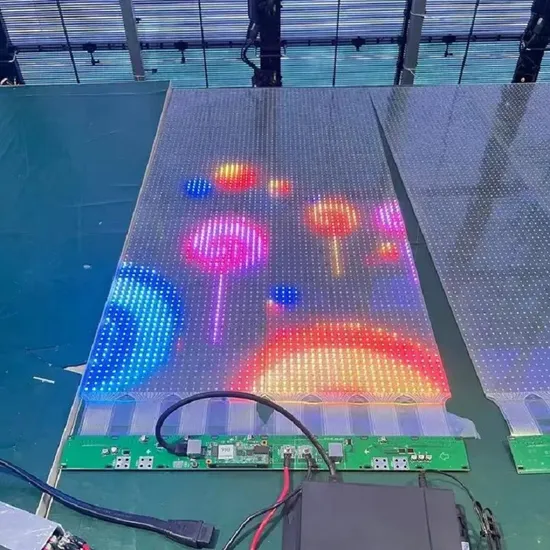

Flexible transparent screen is a bendable transparent LED display screen, which combines the characteristics of transparency and flexibility. It is widely used in shopping mall windows, building glass curtain walls, car displays and other scenes. It will not block the line of sight, can achieve seamless integration with the environment, and enhance the visual effect.
Various application of flexible transparent display

P10 flexible transparent screen

P6 flexible transparent screen

P8 flexible transparent screen

P8 flexible transparent screen

P4-8 flexible transparent screen

P4-8 flexible transparent screen

Features of Flexible Transparent LED Film Screen:
1. High transparency, LED crystal film screen has high permeability, and the base material is high-temperature resistant PET film, when the screen stops working, The screen is almost invisible and completely integrated into the glass.2. Ultra-light and thin, with a thickness of only 3mm, and a weight as low as 3.5kg/m2.3. Flexible, LED crystal film screen with strong flexibility and can be pasted with curved glass building.4. Can be cut, support arbitrary cutting, not limited by size and shape, meet different size requirements, and achieve more innovation meaning display.5. Wide angle of view, 140 ° in all angles, no dead angle and no color deviation, each side is wonderful.6. Safe and beautiful, the screen body has no components, the power supply is hidden, safe and reliable.7. Quick installation, simple and fast, can be directly pasted on the glass surface.
Main application scenarios
1. Shopping mall window display: Installed on the windows of high-end stores, it does not affect the transparency and can dynamically display product advertisements.
2. Architectural glass curtain wall: Installed on the glass curtain wall of high-rise buildings to achieve night light and shadow effects.
3. In-vehicle and transportation display: Used in vehicle, subway and high-speed rail windows to realize new advertising and information display.
4. Exhibitions and activities: Can create creative displays to enhance the sense of on-site interaction and technology.
Product Parameters

Product specification	P16
Pixel pitch	16mm*16mm(x*y)
Pixel	3844 points/m2
LED specification	SMD2121 (light drive in one)
Pixel composition	1R1G1B
Module Size	1000mm*240mm
Module Resolution	62*15
Pixel resolution	62*62/m2
Permeability	≥90%
Box wiring mode	Internal wiring (clean back)
Weight	≤ 4KG/pcs
White balance brightness	≥1000cd/m2
Peak power consumption	400 W/m2
Average power consumption	About 200 W/m2 (depending on the video source)
Refresh frequency	≥3840s
Grayscale level	16Bit
Brightness control level	Grade 0-255
Color temperature	3200K-8500K (adjustable)
Frame change frequency	≥60Hz
Viewing angle	H-H140 degrees V-V140 degrees
Input signal	DVI VGA, composite video
Control screen mode	Or synchronous box (computer control screen) or asynchronous box (WiFi connection mobile phone APP control screen, USB flash drive control screen)
Protection grade	IP30
Power supply requirements	AC 220V ± 10%, 50-60Hz, (optional wide voltage 110V and 9-36V)
working temperature	-20~50 ºC
Theoretical service life	100000 hours

Product PicturesUltra-light and ultra-thin
1. Ultra-light and ultra-thin, weight 3.5kg/m², thickness at the thinnest part of the screen 2.7mm.
2. High permeability can reach over 60%~86%. Installation is very convenient and quick 1. Before installation, clean the glass surface to ensure it is free of dust and oil.2. Tear off the protective film on the front of the screen.Paste the screen on glass.3. Connect the screen module and the control box, and power on after checking that they are correct.4. Finally, connect the external signal source to complete the installation. It is light, soft and bendable, saving transportation costs. It can be cut freely and is used for retail stores, glass. Application Scenarios Company Profile
FAQ
Q: Are you a trading company or manufacturer ?
A: We are led display manufacturer.
Q: How can I get the technical support?
A: We support remote video control at now.
Q: What is your payment term? How long it takes to delivery?
A: We usually accept the T/T . Both of them will at least 30% deposit in advance, and the rest of 70% will paid before delivery. The lead time is usually 20 days.
Q:How long is the warranty period?
A: Non-artificial damage,the standard warranty is 1 year.
Q: How about the freight cost?
A: The shipping cost depends on different weights. We will choose the cheapest and safest way according to your order quantity.
