Heavy-Duty CNC Machine Tool with Versatile Milling and Drilling Functions

Product Description

Product Description

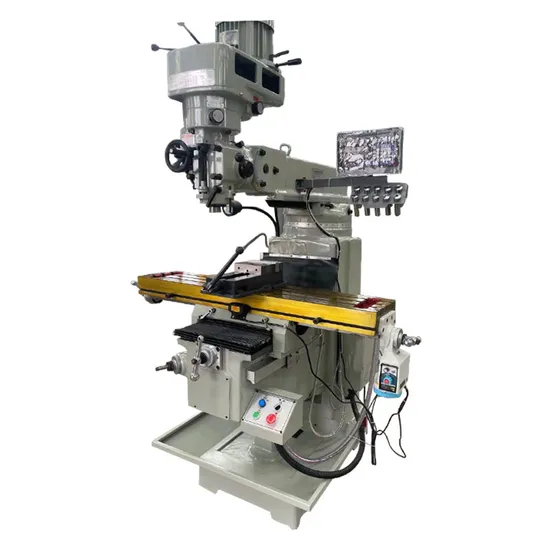

Vertical and Horizontal Turret Milling Machine Fresadora 4HW 5HW Metal Universal Milling Machine
1. The Turret Milling Machine boasts an ingeniously designed construction that offers superior machining capabilities. It excels in drilling, boring, and milling tasks on flat and inclined planes, as well as slotting. When equipped with versatile attachments, it effortlessly performs complex functions such as milling helix slots, round surfaces, racks, gears, and splines.2. The machine features a robust rectangular guideway on the Y-axis, ensuring excellent rigidity and stability. The saddle's guideway is enhanced with TF wearable material, providing durability and precision in radial milling operations.3. High-speed milling head, renowned and trusted, crafted in Taiwan for precision and efficiency.4. The slideway and table surface are expertly hardened to withstand rigorous use and maintain precision.5. Special tools are employed to machine the T-slot, ensuring it does not extend beyond the table's edge, enhancing rigidity and providing an elegant, streamlined appearance to the machine. 6. The slideway has been meticulously hand-scraped for precision, ensuring high accuracy and smooth movement.7. Precision-crafted XYZ axis screws, sourced from Taiwan, ensure reliability and accuracy.8. The XY screw features a dual-nut system, simplifying the adjustment process between screw and nut, guaranteeing precise operations.9. The XY screw bracket is integrally designed on one base, offering superior precision and rigidity.10. The electrical system is constructed to align with CE standards, ensuring safety and reliability in operations.
Detailed Photos

Specifications	Units	4HW	5HW
Table size	mm	1270x254	1370x305
Table travel	mm	780/420/400	810/420/400
T slot(number-width-pitch)	mm	3-16-65	3-16-65
Spindle taper		(V) R8/ISO40 (H) ISO40	(V) R8/ISO40 (H) ISO40
Spindle speed range	rpm	(V)50HZ:65-4500 60HZ:80-5440,16 steps; (H)45-1350,12 steps	(V)50HZ:65-4500 60HZ:80-5440,16 steps; (H)45-1350,12 steps
		Optional:variable 65-4000	Optional:variable 65-4000
Spindle travel	mm	127	127
Spindle feed range	mm	0.04,0.08,0.15 (3 steps)	0.04,0.08,0.15 (3 steps)
Distance between spindle axis and table surface	mm	0-400	0-400
Main motor power	kw	2.2(V)3(H)	2.2(V)3(H)
Head rotation (left - right )	°	±90°	±90°
Head rotation (front - rear)	°	±45°	±45°
Weight	kg	1750	1850
Overall dimension	mm	1550x1650x2250	1550x1650x2250

1. Made from heavy-duty, premium-grade Meehanite castings, this model promises longevity and resilience. 2. Features solid rectangular slideways on the Y-axis for enhanced stability and precision. 3. All axes are fitted with adjustable dovetail slideways, allowing for precision customization. 4. Capable of right-left handed rotation, offering versatility in operation. 5. High concentricity precision is achieved through the use of taper roller bearings, maintaining precision at less than 0.01mm as measured in the spindle sleeve. 5. Automatic spindle sleeve feed is integrated for enhanced operational efficiency. 6. Equipped with a main switch featuring motor protection, a right/left handed rotation switch, and an emergency-stop button for safety and control. 7. This machine offers impressive cost-efficiency while maintaining stable value over time.
Packaging & Shipping
Company Profile
Henan Rowdai Machinery Equipment Co., Ltd., proudly situated in Zhengzhou at the very heart of China. Known for our extensive experience in exporting machinery, we deliver not just products of stable quality but also exceptional service to our valued customers.Our diverse range of offerings includes all varieties of machine tools for the international market, such as Lathe Machines, CNC Lathe Machines, Milling Machines, CNC Milling Machines, CNC Machining Centers, Grinding Machines, and more. We are also suppliers of Hydraulic Presses, Bending Machines, Drilling Machines, Press Brakes, Shearing Machines, and an array of machine tool accessories. Our team is strengthened by our resident engineers, who bring with them years of professional expertise and training. Our engineers are dedicated to not only inspecting goods before they ship but also meticulously tracking every aspect of the production process. Their vigilance ensures that our commitment to quality and customer satisfaction is upheld. Our trained engineers are an extension of our company, representing our commitment to quality and service. They ensure the highest standards in both product and service by overseeing all points of production and inspection, safeguarding our reputation as a reliable partner. From the initial stages of production to the final stages of delivery, our engineers are there to guarantee excellence.
FAQ
1: Where is your company A: Our company is located in Tengzhou City, Shandong Province.2: What about your warranty?A: Warranty is one year. During warranty time, if the parts are damaged because of Nonhuman factors, we will send new replaced parts for free3: How do you offer after-sale service?A: We usually offer technical support online by wechat or whatsapp. Customer describe the problems and send videos and pictures, our technician will help to solve the problems4. What is your standard package? A: Our package is export standard plywood case with pallet.5: What's the Payment Terms? A: T/T, 30% initial payment when order, 70% balance payment before shipment; 6: What's the MOQ? A: 1 set.
