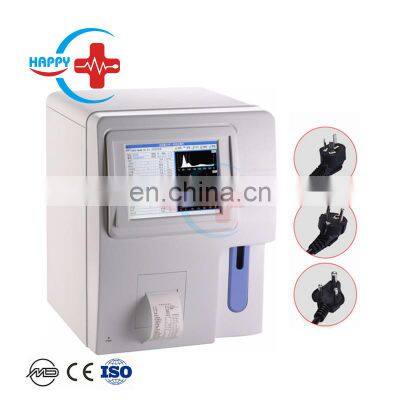

HC-B003A hot sales fully automated hematology analyzer machine blood analyzer machine

Product Description

Product Description
Product typeHematology AnalyzerBrandHappycareModelHC-B003ADisplay:8.4” color TFTThroughput:35 samples per hourStorage up to 100000 sample results including histograms can be storedLanguageEnglishSpecification sheet * 3-part differentiation of WBC, 23 parameters, single channel counter ,up to 35 samples test per hour * Volume measurement by time ,not wrong warning * Adanced valve technology,long life * RS232 interface, PC connecting * Electrical resistance for counting and SFT method of hemoglobin * Low sample consumption : venous 9.8 ul, capillary 9.8 ul, pre-diluted 20 ul for twice testing one time * 8.4” color TFT, Windows interface all testing parameter displayed simultaneously * Windows operation system graphical buttons mouse and keyboard operation * Double convolution and intelligent fitting * Automatic diluting , Mixing , rinsing and clog clearing * Automatically sample probe cleaning (inside and outside) * Large storage capacity: up to 10,000 samples +3 histograms * Internal thermal-sensitive printer or external printer. * RS232 interface, PC connectingMain Technical SpecificationsMethodology: Electrical resistance for counting, hemoglobin cyanide method and SFT method for hemoglobin Parameter: 3-part differentiation of WBC; 20 parameters and 3 color histograms (WBC, RBC, PLT) Work mode : Single Channel + unique Hemoglobin test system Sample volume: 9.6μL for Venous and capillary mode, 20μL for pre-diluted mode Throughput: More than 35 samples per hour, operate 24 hours a day, auto sleeping and waking-up functionsStorage: up to 100000 sample results including histograms can be stored, convenient for inquiry and management of history data Operation langue: English QC control : X-B, L-J, X , SD, CV % Reference Value Setting : Male , Female, Children, Neonate Alarm : 25 test of alert messages Input / output : RS232, parallel printer and keyboard Print : Graphic thermal printer with various printing format, optional external printer Temperature : 18℃ - 30℃,wet ≤ 10-90% Power supply : 220 V ±22 VAC, 50±1Hz Dimension : 33 CM ( L ) * 38 CM ( W ) * 43 CM ( H ) Weight : 20 KGParameterslinear rangeCV %WBC( 10 9 / L )0.0 - 99.9≤2%RBC ( 1012 / L )0.0 - 9.99≤1.5%MCV ( fL )40-150≤0.5%PLT ( 10 9 / L )0-999≤4.0%HGB( g/L )0.0-300.0≤1.5%Parameters WBC, Lymph#, Mid#, Gran#, Lymph%, Mid%, Gran%, RBC, HGB,HCT, MCV, MCH, MCHC, RDW-CV, RDW-SD, PLT, MPV,PDW,PCT,L-PCR 3 –histograms : WBC,RBC and PLT
