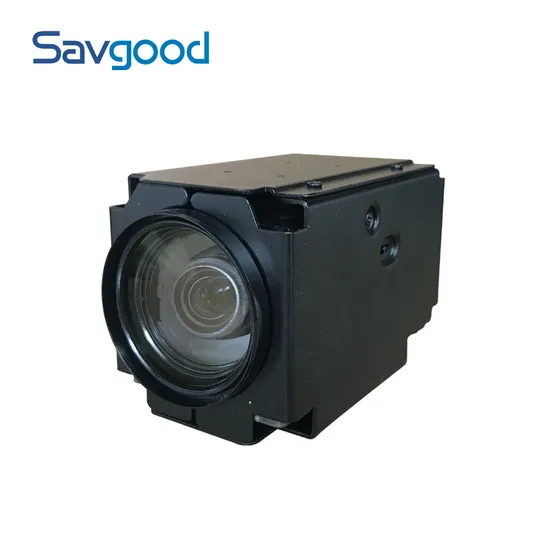

Savgood Sg-Zcm2030nl 2MP 30X Opitcal Zoom Sony Imx327 Starlight Network Zoom PTZ Camera
Basic Info.
Model NO.
SG-ZCM2030NL
Type
IP Camera
Sensor
CMOS
Horizontal Resolution
1080P
Kind
Autofocus Lens
Feature
Auto Focus
Effective Distance
500m
Sensor Size
1/2.8"
Remote Control
Without Remote Control
Megapixel
2MP
Compression
H.265/H.264h/H.264b/H.264/Mjpeg
Lens
4.7mm~141mm
Digital Zoom
4X Zoom
Zoom
30X Zoom
Onvif
Support
Https
Support
Transport Package
Paper
Specification
96mm*52mm*58mm
Trademark
Savgood
Origin
China
HS Code
8525801390
Production Capacity
5000PCS/Year
Product Description
1. Features
> 1/2.8" Sony CMOS Sensor.
> Powerful 30x optical zoom (4.7mm~141mm).
> Max. 2Mp(1920x1080) Resolution
> Support various IVS functions
> Support Electronic Defog
2. Specification
| Model | SG-ZCM2030NL | |
| Sensor | Image Sensor | 1/2.8" Sony CMOS |
| Effective Pixels | Approx. 2.13 Megapixel | |
| Max. Resolution | 1920 (H)x1080(V) | |
| Lens | Focal Length | 4.7mm~141mm, 30x Optical Zoom |
| Aperture | F1.5~F4.0 | |
| Close Focus Distance | 0.1m~1.5m (Wide~Tale) | |
| Angle of View | 60.5°~2.3° | |
| Video Network | Compression | H.265/H.264/H.264H/MJPEG |
| Storage Capabilities | TF card, up to 128G | |
| Network Protocol | Onvif, GB28181, HTTP, RTSP, RTP, TCP, UDP | |
| Smart Alarm | Motion Detection, Cover Alarm, Storage Full Alarm | |
| Resolution | 50Hz: 25fps@2Mp(1920×1080) 60Hz: 30fps@2Mp(1920×1080) | |
| IVS | Tripwire, Cross Fence Detection, Intrusion, Abandoned Object, Fast-Moving, Parking Detection, Crowd Gathering Estimation, Missing Object, Loitering Detection. | |
| S/N Ratio | ≥55dB (AGC Off, Weight ON) | |
| Minimum Illumination | Color: 0.005Lux/F1.5; B/W: 0.0005Lux/F1.5 | |
| EIS | Electronic Image Stabilization (ON/OFF) | |
| Defog | ON/OFF | |
| Exposure Compensation | ON/OFF | |
| Strong Light Suppression | ON/OFF | |
| Day/Night | Auto/Manual | |
| Zoom Speed | Approx 3.5s(Optical Wide-Tele) | |
| White Balance | Auto/Manual/ATW/Indoor/Outdoor/ Outdoor Auto/ Sodium lamp Auto / Sodium lamp | |
| Electronic Shutter Speed | Auto Shutter (1/3s~1/30000s)Manual Shutter (1/3s~1/30000s) | |
| Exposure | Auto/Manual | |
| 2D Noise Reduction | Support | |
| 3D Noise Reduction | Support | |
| Flip | Support | |
| External Control | RS232 | |
| Communication Interface | Compatible with the SONY VISCA Protocol | |
| Focus Mode | Auto/Manual/Semi-automatic | |
| Digital Zoom | 4x | |
| Operating Conditions | (-30°C~+60°C/20% to 80%RH) | |
| Storage Conditions | (-40°C~+70°C/20% to 95%RH) | |
| Power Supply | DC 12V±15% (Recommend: 12V) | |
| Power Consumption | Static power: 4.0W, Sports power: 5.0W | |
| Dimensions(L*W*H) | Approx. 96mm*52mm*58mm | |
| Weight | Approx. 300 | |
3. IVS (Intelligent Video Surveillance)
4. VS Others
5. Application Solution
6. Packing
7. Company
