Factory Price Multi-Function Grain Corn Combine Harvester Wheat Maize Soybean Sorghum Reaper Corn Combine Harvester

Product Description

Product Description

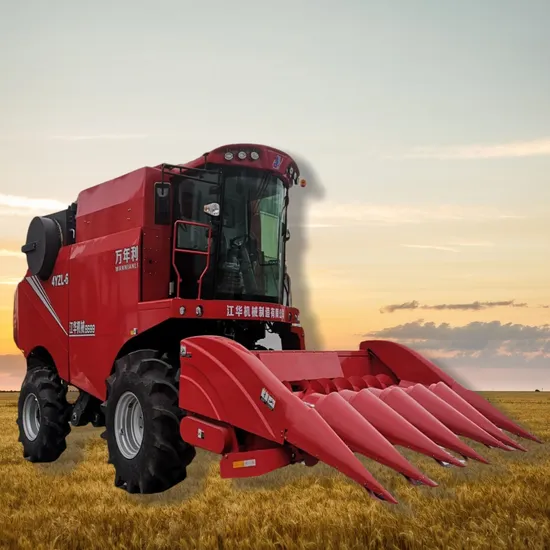

6 rows Multi-function grain combine harvester wheat corn soybean sorghum combine Harvester Jianghua 4YZL Multifunction Grain combine harvester is a machine that used to harvest grain crops, such as Corn, wheat, barley, sorghum, and soybean etc. The combine harvester combines three separate operations: reaping, threshing, and Separating.
The reaping component of the combine harvester is responsible for harvesting the crops and separating the grain from the straw. The threshing component then removes the grain from the straw, while the seperating component removes any remaining chaff or debris from the grain.
Overall, the multifunction combine harvester reduced the amount of manual labor required to harvest crops and improving overall efficiency and productivity.
Product feature
1.There are air-conditioned , luxury-sealed and luxury seat in the cab.
One bar operation, soundproof configuration, simple and comfortable to operation.
2.Dual screen display: dynamic intelligent detection and intelligent control
3. Four-wheel drive: hydrostatic drive + mechanical drive.
It can be equipped with two type of cutting tables.
If you change the cutting table,you can harvester corn, wheat,sorghum, soybean and other widespread grains.
Product detail
Product Description

Product specification of combine harvester
Item description			unit	4YZL-6(Corn)	4LZ-13(wheat,soybean,sorghum)
Model			/	4YZL-6	4LZ-13
Structure type			/	Wheeled.Directly thresh.returning straw to the fields	Wheeled self-propelled full feed
Weight			kg	10450(line spacing 650) /10350(line spacing 600) /10250(line spacing 550)	12500
Dimension(L×W×H)			mm	10200×4165×3750(line spacing650) 10200×3880×3750(line spacing 600) 10200×3615×3750(line spacing 550)	9450×5800×3850
Gearbox			/	Mechanical gearbox+hydrostatic stepless transmission
Hourly productivity			hm2/h	0.6~1.5	0.6~1.5
Engine Part	Model No.		/	Yuchai YCA07P260-T400	Yuchai YCA07P260-T400 or Yuchai YC6J220-T300
	structure type		/	6-cylinder,Vertical, in-line, supercharged, intercooled, high pressure common rail	6-cylinder,Vertical, in-line, supercharged, intercooled, high pressure common rail
	rated power		KW	191	191/162
	rated speed		R/min	2200	2200
	Generator		V	24V alternator	24V alternator
	Fuel Consumption		kg/hm2	≤35	≤35
	Fuel Capacity		L	300	300
Walking Part	Drive mode	Front	/	Mechanical + hydraulic	Mechanical + hydraulic
		Rear	/	mechanical	mechanical
	Drive type		/	Four wheel drive	Four wheel drive
	Working Speed		km/h	1.5~6.0	1.5~6.0
	Work gear		/		3
	Min.ground clearance		mm	360	360
	Axle base		mm	3290	3290
	Guide wheel base		mm	2600	2600
	Drive wheel base		mm	2600	2600
	Guide wheel tire specifications		/	19.5L-24	19.5L-24
	Driving wheel tire specifications		/	28L-26	28L-26
Header	Cutting table auger type		/	/	Spiral gear type
	Cutter form		/	/	International standard type II
	Reel type		/	/	Eccentric spring gear type
	Dia.of reel		mm	/	Φ1130
	No.of reel slat		pcs	/	6
	Feeding rate		kg/s	/	13
	working width		mm	3980(line spacing 650) /3685(line spacing 600) /3435(line spacing 550)	5400
	Type of picking mechanism		/	Picking plate	/
	Cutting table type		/	horizontal type	/
	Number of picker rolls/plates		pcs	12	/
	Number of working lines (channels)		pcs	6	/
	line spacing		mm	650/600/550	/
Threshing & cleaning &Grain-unload	Threshing Rotor	Type	/	longitudianl axial flow	longitudianl axial flow
		QTY	/	1	1
		Size (outside diameter*length)	mm	610*3050	610*3050
	fan	qty	pcs	1	1
		type	/	Tubular	Tubular
		Diameter	mm	φ293	φ293
	cleaning	Concave screen type	/	Type of grid	Type of grid
		Cleaning screen type	/	Fish scale sieve type	Fish scale sieve type
	Grain-unload	Method of discharging grain	/	Mechanical automatic unloading of grain	Mechanical automatic unloading of grain
Cabin	Cabin with A/C,with display equiped with 3-ways video to watch the rear tires and rear of machine and grain tank,and with suspension seat,auxiliary seat and hydrostatic clutch.		/	Luxury sealed cab	Luxury sealed cab
			/	air conditioner	air conditioner
			/	RVC and Multimedia display	RVC and Multimedia display
			/	Seat with armrest and alternate seat	Seat with armrest and alternate seat

Company Profile
Exhibition Packaging & Shipping
After sales service24-hour remote on-line serviceWe owns an extraordinary service team. We're realizing the localized overseas service, which covers digitalized service&training methods, 24-hour remote on-line service, and on-site service and serve our customers seamlessly.
Main products
FAQQ1:Are you the factory or the trading company?A1:We are the factory,we located in Shanxian County,Heze City,Shandong Province,China.Q2:What after-sales service can your company provide?A2:We can provide technical support and on-site installation support.Q3:How about your price?A3:We sell every machine at a low pirce for the same quality, we leave the maximum profit to customers.Q4:Can you provide spare parts for free?A4:Of courseQ5:It can be customized?A5:Of course,you only need to provide customized requirementsQ6:Can we have some samples?A6:Of course. We understand the importance of testing some samples before placing an order.Q7:What is the MOQ?A7:Normally the MOQ is one set.There are some exceptions to this requirement because of the type of machines.
