Medical Use Xty-180 0-180degree Binocular LED Surgical Ent Dental Operation Microscope with Good Quality

Product Description

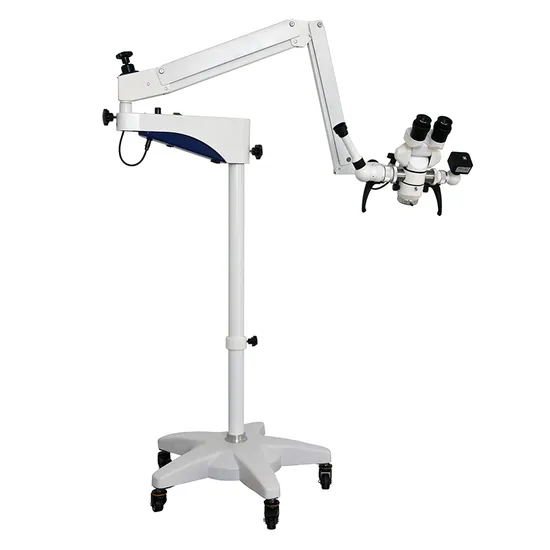

Product Description Product ApplicationXTY-180 Operation Microscope using LED light source for coaxial illumination, with 0-180° inclinable binocular and 3-step magnification changer, have different working distance and magnification. It is featured for flexible handling and easy operation. It is sued for micro-operation in dental especially, and can be used for micros-operation in ophthalmology, ear-nose-throat, gynecology and surgery.
XTY-180 Operation Microscope:
Magnification of binocular: 8X
Binocular: 0-180° inclinable
Magnification of eyepiece: 12.5X
Interpupillary distance: 50mm-80mm
Diopter: ±7D
Focal length of objective: F=200mm and F=250mm two objectives
Magnification changer: 3-step: 0.6X, 1X, 1.6X
Total magnification: 4.8X, 8X, 12.8X, 6X, 10X, 16X
Linear field: 50mm, 30mm, 19mm, 40mm, 24mm, 15mm
Fine focusing distance: 10mm
Illumination: Coaxial illumination with 10W LED lamp light source, brightness adjustable, illumination>40000lx
Filter: Build-in green and yellow filters
Balancing arm: 2-part arm with universal joints, counterweight adjustable and can be locked
Floor stand: 2-part column fitted on the five-star base with casters
Power supply: AC100V-AC240V
Optional accessories: Beamsplitter, Video camera adapter, Demonstrator, 1080P Camera, VGA200, WK-73X10, WK-73X10H), SLR camera adapter, Monitor (S22E360H, X22, H1766), Eyepiece 10X, Objective F=300mm & F=400mm, F=200mm-300mm zoom objective, Table mount clamp, Wall mount bracket

Table of Optical Characteristics for XTY-180 Operation Microscope:
Magnification of eyepiece	12.5X/20mm
Focal length of objective	F=200mm	F=250mm	F=300mm(optional)	F=400mm(optional)
Total magnification	6-16X	4.8-16.8x	4-10.7X	3-8X
Magnification on handwheel	1.6X 1X 0.6X
