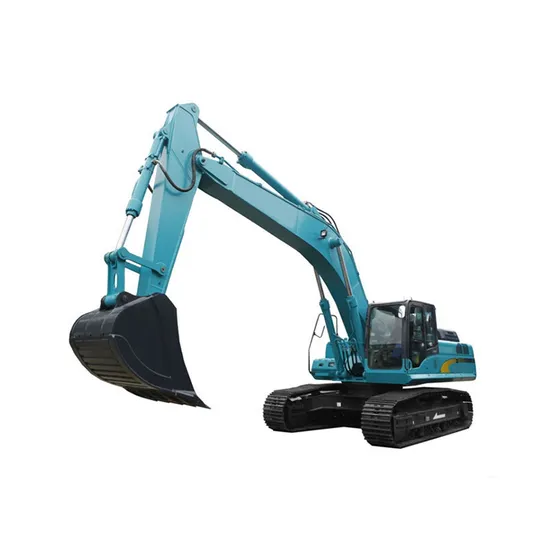

210/1900kw/Rpm Electric Drive Hf Naked Packaging 4860*3190*3490 mm Excavator Hydraulic Digger
Basic Info.
Model NO.
HFE335F
Usage
Special Excavator
Bucket
Grab Shovel
Transmission
Hydraulic Transmission
Drive Type
Electric Drive
Bucket Capacity
1.0~1.5m³
Size
Small-Scale
Certification
CE, ISO9001: 2000
Condition
New
Swing Speed
11.42rpm
Walking Speed
5.8/3.6km/H
Power
210/1900kw/Rpm
Maximum Torque
1080/1500n·m/Rpm
Transport Package
Naked Packaging
Specification
4860*3190*3490 mm
Trademark
HF
Origin
China
Production Capacity
50000pieces/Year
Product Description
Features 210kW high-power reserve engine, power upgrade; 220KN shovel digging force, easy to control under heavy load conditions.
1. New shape
The new generation of family-style F series has a new appearance, the whole machine is majestic and powerful, and more mine elements are added to the shape design, which is beautiful and powerful.
2. Benefit priority
High-efficiency, large-displacement hydraulic system configuration, plus 2.9m short pole and 1.7m³ large capacity hyperbolic reinforced blade, to achieve the perfect ratio of working devices according to the working conditions, high efficiency and energy saving.
3. Reliable and durable
The heavy-duty working device is supported by 36t-level die forgings; the 36t-level chassis system doubles the reliable and durable bearing capacity of the four wheels.
4. Comfortable operation and convenient maintenance
A new generation of cab, interior upgrades, electrical upgrades, improved sealing.
| Specification | Unit | Parameter |
| Machine working weight | t | 32.8 |
| Shovel Capacity | m³ | 1.7 |
| Power | kW/rpm | 210/1900 |
| Maximum torque | N·m/rpm | 1080/1500 |
| Displacement | L | 7.79 |
| System pressure | Mpa | 34.3 |
| Pilot pressure | Mpa | 3.9 |
| Swing speed | rpm | 11.42 |
| Walking speed | km/h | 5.8/3.6 |
| Climbing ability | ° | 35 |
| Fuel tank capacity | L | 520 |
| Maximum digging height | mm | 10330 |
| Maximum unloading height | mm | 7280 |
| Maximum digging depth | mm | 7010 |
| Excavation depth (2.44m level) | mm | 6840 |
| Boom length | mm | 6150 |
| Total length | mm | 10716 |
| Total height | mm | 3490 |
| Total width | mm | 3190 |
| Track length | mm | 4860 |
| Track width | mm | 3190 |
| Track shoe width | mm | 600 |
