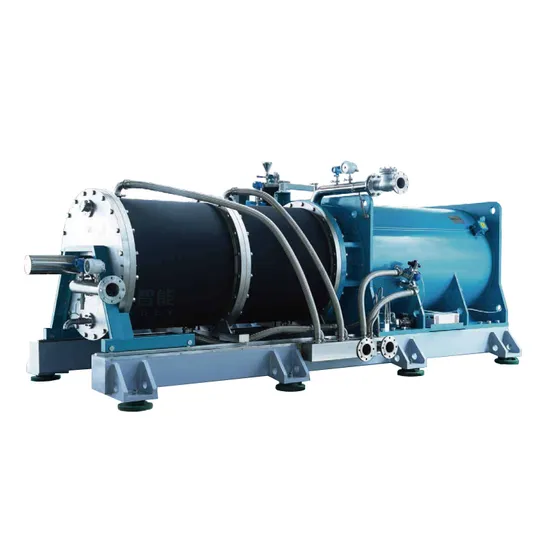

Nano Metal Bead Mill, Nano Bead Grinding Mill, Efficient and Mass Volume
| US$6,500.00 | 1 Set (MOQ) |
Basic Info.
Model NO.
PML100
Power Source
Electric
Fineness
20nm - 100nm
Operation
Milling and Separating Independently
Type
Impact Crusher
Drive
Electric
Crushing Degree
Fine Grinding Machine
Crushing Style
Extruding and Milling
Finished Surface
Outer Surface Process
Compressive Strength (for Crushing)
>300MPa
Tongs′ Features
Adjustable Tongs
Object
Coating, Paint, Lithium Battery Material
Warranty
2 Years
After-Sales Service
Installation on Site, Lifetime Maintenance
Transport Package
Wooden Case
Trademark
Lederim
Origin
Shenzhen, China
HS Code
8477800000
Product Description
Performance Advantage 01
Using permanent magnet motors, the traditional belt pulley transmission design has been eliminated, reducing kinetic energy loss and saving about 10% energy compared to traditional asynchronous motors. According to demand, 380V and 690V high-voltage standard motors can be customized, with lower energy consumption and maintenance costs under the same output power.
02
Efficiency and quality upgrades, stable production performance, and excellent performance.
Adopting an efficient rod pin grinding structure, the sieve has a large flow area, high grinding efficiency, and is easy to operate and process control. It can carry out continuous circulation production with high flow rate, increasing production efficiency by 30-50%.
Fineness: 20nm - 100nm
Zirconia Bead Dia.: 0.05-0.6mm
Constant temperature controlled grinding ensures material stability.
Technical Parameter
| Model | Chamber | Rev. | Motor Power | Bead Dia. | Bead Rate | Batch Capacity |
| PML100 | 100L | 900 - 1650rpm | 115KW | 0.2 - 2.0mm | 70 - 85% | 500 - 4000L |
| PML150 | 140L | 900 - 1650rpm | 130KW | 0.2 - 2.0mm | 70 - 85% | 800 - 6000L |
| PML300 | 300L | 900 - 1650rpm | 225KW | 0.2 - 2.0mm | 70 - 85% | 1000 - 8000L |
| PML00 | 400L | 900 - 1650rpm | 320KW | 0.2 - 2.0mm | 70 - 85% | 2000 - 10000L |
| PML500 | 500L | 900 - 1650rpm | 370KW | 0.2 - 2.0mm | 70 - 85% | 3000 - 12000L |
| PML700 | 700L | 900 - 1650rpm | 460KW | 0.2 - 2.0mm | 70 - 85% | 3000 - 18000L |
| PML1000 | 1000L | 550 - 1300rpm | 580KW | 0.2 - 2.0mm | 70 - 85% | 5000 - 30000L |
| PML1200 | 1200L | 550 - 1300rpm | 670KW | 0.2 - 2.0mm | 70 - 85% | 8000 - 40000L |
Application
Nano metal materials, Ceramic materials, Conductive materials, Nano new materials, MLCC, Alumina etc.
Honors and Awards
Manufacturing Workshop
