Multifunctional Nutsche Filter Dryer for Solid-Liquid Separation

Product Description

Product Description
AGITATED NUTSCHE FILTER DRYDER
Operations including filtering, washing, and drying are all carried out in a single tank in a continuous mode, only for filtering and washing, cancel heating jacket. Washing of the filter cake is effected by agitating, effective heating is achieved. Discharging automatically, avoid pollution. Reducing labor intension of operators.
CIP. Operation is carried through in the protection of N, security.
Compared to traditional centrifuge and tale-out strain tank. More meeting GMP and FDA requirement.
Bottom board can not be removed, filter boards is multi-blocks sintered screen or filter cloth. Suit to produce non-asepsis raw material
Material: SS304, SS316L, Ti, Hastelloy-C, PTFE lined or other materials
Applications:It is widely applied in the industries, such as pharmaceutical, chemical engineering, agrochemical, food, etc. It can realize the continuous operation in vacuum, and even more suitable for producing sterile and poisonous products.

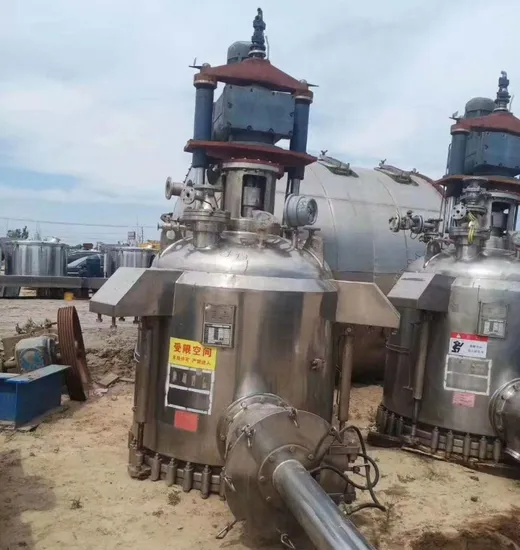

Detailed Photos
Process and structure
Filtering stage: The separation of filter cake and mother liquid. The thickness of filter cake can reach 500mm.
Washing stage: Further purification of filter cake, rinse and dehydration of mother liquid remained. Mix the lotion and the filter cake via up and down of agitator to make the filter cake slurry finally, then the filter cake can get the full wash.
Drying stage:Dehydrating and drying the filter cake. Agitator will scrape filter cake loose by layers while the sidewall; the bottom of filter plate and agitator will heat the filter cake at the same time. Moreover, the vacuum inside the equipment will accelerate the evaporating speed; the entered hot nitrogen will take away the damp and accelerate the speed of desiccation
Packaging & Shipping

Warehouse
Bottom plate structure: :SUS304/316L
▾Filter plate: sintered plate/filter cloth (normally 5~50 um)
▾Dead angle of filter cloth: 25mm single side
▾Flatness degree of single plate: ±1mm/m
