Metal Bore Hole Z3050X16/II Radial Drilling Machine price
| US$7,600.00-7,800.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
Z3040 Z3050 Z3063 Z3080
Controlling Mode
Artificial
Number of Shaft
3
Hole Diameter
<50mm
Automatic Grade
Manual
Precision
Normal Precision
Certification
CE, ISO 9001
Condition
New
Drill Capacity
32mm
spindle travel
130mm
spindle taper
MT3
Power
1.1KW
speed steps
8
Transport Package
Plywood Case
Specification
500kgs
Trademark
HOTON
Origin
China
HS Code
8459590000
Production Capacity
5 PCS/Month
Product Description

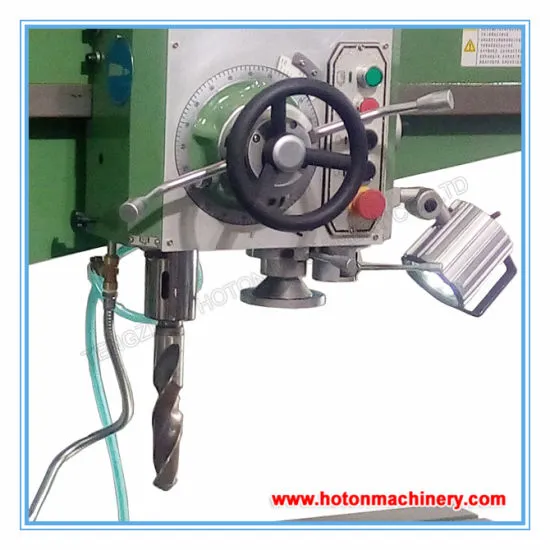

RADIAL DRILLING MACHINE FEATURES:
Inner-outer column.
Mechanical clamping for the column and mechanical Speed Changing.
Spindle with auto-feeding.
coolant, work light, available.
Spindle Box machined by machining center.
SPECIFICATIONS:
| Model | Z3032×8/1 Z3040×8/1 | Z3040×10/1 | ||
| Max.Drilling capacity (mm) | 32/40 | 32/40 | ||
| Distance spindle axis to column Generating line (mm) | 320-820 | 300-1300 | ||
| Diameter of column (mm) | 200 | 300 | ||
| Spindle taper | MT4 | MT4 | ||
| Spindle travel (mm) | 240 | 280 | ||
| Spindle speeds range (r/min) | 75-1220 | 32-2500 | ||
| Spindle speeds series | 6 | 16 | ||
| Range of Spindle feeds (r/min) | 0.1-0.25 | 0.10-1.25 | ||
| Spindle feeds | 3 | 8 | ||
| Max.Distance spindle nose to Working surface of base (mm) | 320-900 | 300-1320 | ||
| Dimension of worktable (mm) | 400×400×350 | 600×450×450 | ||
| Dimension of base (mm) | 1370×700×160 | 2050x900x200 | ||
| Overall Size (mm) | 1407×720×1885 | 2100x900x2300 | ||
| Power of Main motor (kW) | 1.5 | 3 | ||
| G.W/N.W (kg) | 1425/1200 | 2500/2100 | ||
| Packing dimension (cm) | 155×77×210 | 235x106x245 | ||
| STANDARD ACCESSORIES | OPTIONAL ACCESSORIES | |||
| Box shape worktable Taper Sleeve Tool releasing wrench Drift Eyelet bolts | Quick change chuck Tapping Chuck Grease Gun | |||
