Chinese Manufactory Pn16 Nilong Plastic Body Dry Type R160 Class C Impuls Flowmeter Cold Water Meter
| US$3.95-6.00 | 1,000 Pieces (MOQ) |
Basic Info.
Model NO.
LXSG-152-50S2
Install
Horizontal
Medium Temperature
Cold Water
Level Measurement
B
Counter Instructions
Digital
Nominal Diameter
15-50mm
Application
Civil
Principle
Speed of Water Meter
Medium Pressure
General Water Meter
Work Environment
Dry Water Meter
Stucture
Traditional
Transport Package
Export Carton
Specification
Plastic body, Plastic connectors
Trademark
OEM
Origin
Ningbo, China
HS Code
9028201000
Production Capacity
100, 000/Month
Packaging & Delivery
Package Size
50.00cm * 30.00cm * 25.00cm
Package Gross Weight
16.000kg

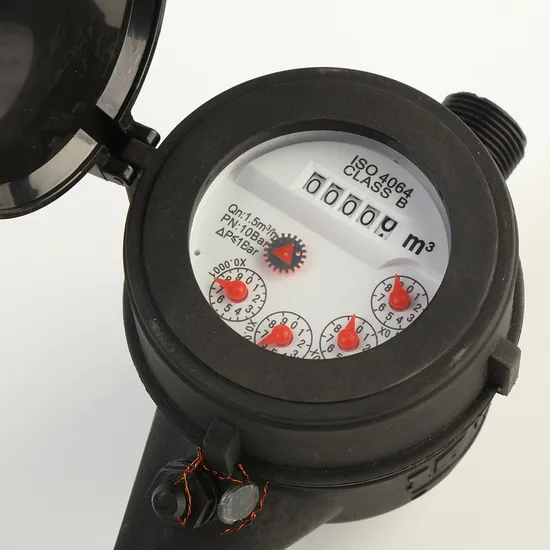

Product Description
Multi-jet, Dry dial
Body material: Nylon Plastic
Sizes: DN15 to 50mm( 1/2" - 2"), available for cold water (40°C)
Accuracy: ISO4064, Class B standard
Easy for interchange & maintenance
MAIN TECHNICAL DATA
| Meter size Dia DN (mm) | Class | qs Overload Flow | qs Nominal Flow | qs Transitional Flow | Qmin Min Flow | Min Reading Lectura | Max Reading Lectura |
| m3/h | 1/h | m3 | |||||
| 15 | A | 3 | 1.5 | 150 | 60 | 0.0001 | 99999 |
| B | 120 | 30 | |||||
| 20 | A | 5 | 2.5 | 250 | 100 | 0.0001 | 99999 |
| B | 200 | 50 | |||||
| 25 | A | 7 | 3.5 | 350 | 140 | 0.0001 | 99999 |
| B | 280 | 70 | |||||
| 32 | A | 12 | 6.0 | 600 | 240 | 0.0001 | 99999 |
| B | 480 | 120 | |||||
| 40 | A | 20 | 10 | 1000 | 400 | 0.001 | 99999 |
| B | 800 | 200 | |||||
| 50 | A | 30 | 15 | 4500 | 1200 | 0.001 | 99999 |
| B | 3000 | 450 | |||||
INDICATING ERROR
At low zone is ±5% from minimum flow rate (qmin) to transitional flow rate (qt) exclusive boundary
At high zone is ±2% from transitional flow rate (qt) to overload flow rate (qs)
DIMENSIONS AND WEIGHT
| Meter size Dia DN (mm) | Length | Width | Height | Connecting Thread D | Weight Kg |
| mm | |||||
| 15 | 165 | 99 | 104 | G 3/4B | 0.53 |
| 20 | 190 | 99 | 106 | G 1B | 0.6 |
| 25 | 225 | 104 | 120 | G1 1/4B | 0.74 |
| 32 | 230 | 104 | 120 | G1 1/2B | 0.82 |
| 40 | 245 | 125 | 155 | G 2'B | 1.2 |
| 50 | 300 | 125 | 155 | G2 1/2 B | 1.46 |
WORKING CONDITION
Water temperature:≤40ºC for cold water meter
Working pressure:≤1.6Mpa
