Hicas Woodworking Multiple Rip Circular Saw Wood Cutting Machine for Square Plank

Product Description

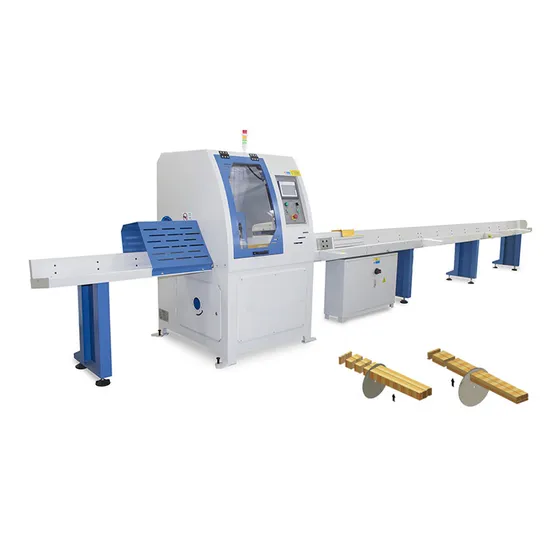

HICAS Woodworking Multiple Rip Circular Saw Wood Cutting Machine for Square Plank
Product Description

Feature:This saw is a cross cut saw, cutting continuously and automatically with high precision and high efficiency. Can pre-set and edit and save cutting plans.
Advantages:Easy to operate, high efficiency, safty for worker

Model	SF606	SF6061
Cutting length	Max. 2m/ 4m/ 6m
Cutting height	10-120mm	10-140mm
Cutting width	30- 200mm	30-300mm
Cutting section	Max. 120*150mm/100*200mm	Max.140*140mm/140*300mm
Feeding speed	5-30m/min
Cutting speed	40pcs/min	45pcs/min
Blade diameter	450mm*30mm	600mm*30mm
Cutter spindle rotation speed	3000rpm	3150rpm
Servo drive motor power	0.75kw	1kw
Cutting motor power	7,5kw/11HP	11kw/15HP
Total power	8.5kw	12.5kw
Pressing method	Cylinder, air pressure 0.5-0.7Mpa
Cutting tolerance	In +/-1mm
Machine working dimension	L*W*H, 5.4m*1.2m*1.6m/7.4m*1.2m*1.6m/9.4m*1.2m*1.6m
Dust collection port	Dia. 100mm*2pc
Electrical components	Schneider
PLC Touching screen	Siemens
Voltage	380v, 3 phase, 50Hz Can customize (extra cost $200)

Detailed Photos

Related products
SF606 wood pallet cutoff saw
https://hicasmachinery.en.made-in-china.com
SF6023 Heavy duty double end trim saw
https://hicasmachinery.en.made-in-china.com
SF701 Wood pallet notcher
https://hicasmachinery.en.made-in-china.com
SF703 Wood pallet chamfer machine
https://hicasmachinery.en.made-in-china.com
SF704 Wood pallet corner cutting machine
https://youtu.be/04uB3h3g7E8
SF901 Stringer wood pallet nailing machine
https://hicasmachinery.en.made-in-china.com
SF9022 Wood pallet leg nailing machine
https://hicasmachinery.en.made-in-china.com
Factory
Packaging & Shipping
1.Packing details: Warrping film with plywood box or as your request.
2.Shipping: We have rich experience in exporting machines to the world and can supply all kinds of different shipping terms.
3.Timely delivery and transportation

Company Profile
1) Founded in 2003.
2) Owns 2 factories manufacturing nailess plywood box machine, wood pallet machine, wood crate machine, nailless plywood box.
3) Owns 70% Market Share(Nailless plywood box machine) in China.
4) Expertized in R&D, Manufacturing, Marketing, Training, and Service.
5) Professional in consultation of Factory construction and Processing Technology, and Technical Improvement Training.
6) Supply Technical Solution base on Cost Analysis and Optimal Allocation.


FAQ
1) How quick we can get the parts from you?
As long as the problem with parts, we will send you free accessories by express, and you can get the parts in 4~5 days usually.
2) How much support we can get for problems ?
We will do our best to help you solve the problem by phone or video, also we can do the overseas services.
3) Manuals and electrical for drawings can made in English?
Of course we can do that in English.
4) What's the cutting section of this saw?
This saw max cutting section is 140*280mm or 120*300mm (thickness*width).
5) How many workers needed for this machine?
Just need 1 worker, when wood material placed on working table, machine feeding the wood automatic, then just need worker take the finished wood.
After Sales Service
1. We respect your feed back after receiving the goods.
2. Tracing the working condition by email per month.
3. 24 hours technical support by email, call, video.
4. English CD and manual for machine using and maintainance.
5. Whole machine one year warranty.
6. Whole life warranty.
7. Engineers available to serve and train overseas, but your side should pay all the expense.
Contact Us
