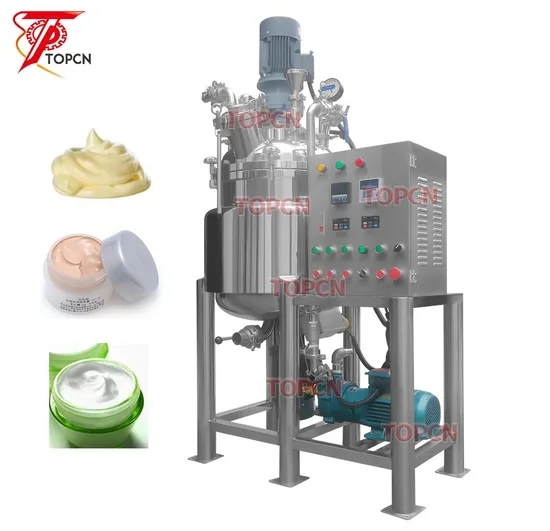

Fixed 10L 20L 50L High Shear Lab Vacuum Emulsifying Cosmetic Cream Emulsifier Mixer Homogenizer

Product Description

Specification
Specification:
Emulsifying machine is to shear, disperse and impact materials through high-speed rotation of homogenizing head connected with the engine. In this way, the material will become more delicate and promote the integration of oil and water. It is widely used in cosmetics, shower gel, sunscreen, and many cream products. Food industry in sauce, juice, etc. Petroleum chemical industry, paint paint ink and so on will use emulsifying machine.
Main features
1) SIEMENS frequency converter for speed adjustment, keeping the machine working stably and durably.
2) Burgmann mechanical sealing, good sealing effect and long working life.
3) The tank body and the pipes adopt mirror polishing, which fully conforms to GMP standards.
4) Material contact parts all use SUS316L.
5) The heating method mainly include electric or steam heating for customer's choice.
6) Advanced touch screen control is optional.
7) The emulsifying pot lid can adopt hydraulic lifting system, easy to clean and the cleaning effect is more obvious, the emulsifying pot can adopt tilt discharge.

Item	Data
Voltage	AC 380V /50Hz
Capacity	50L (100L 150L is customizable)
Mixing system	Scraper mixer and bottom homogenizer
Mixing speed	Top mixer: 0-63 rpm Homogenizer: 0-2880rpm
Heating system	Electric heating
Control system	touch screen
Discharge outlet	bottom discharge outlet
Function	heating, blending, vacuum emulsifying mixing, vacuum defoaming

Button Control panel
*Heating temperature setting
*Mixing speed adjustment
*Homogenizer mixer working time setting
*Vacuum On/Off
Emulsifying pot cover
*Products inlet : The products will be sucked into the emulsifying pot When the pot is in vacuum condition .
*Essence inlet : Add essence when open the blue valve .
*Glass view window : Check the working status inside.
*Vacuum pipe : connect with vacuum system and vacuum gauge
*LED light
*Air filter


Emulsifying pot inside
Bottom high shear homogenizer mixer can high shear cut the product into smaller molecule.

Seal cover
With locks to keep the tank sealed.
