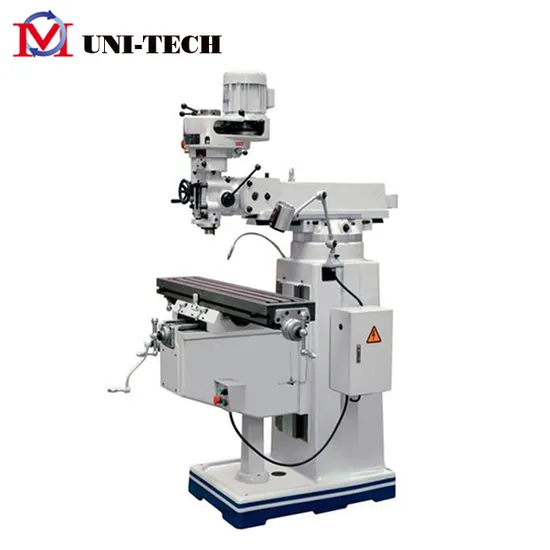

Vertical Turret Taiwan Milling Machine for Sale (X6323 X6325)
Basic Info.
Model NO.
X6323 X6325, X6330A
Structure
Ram
Milling Cutter Type
Vertical Milling Cutter
Milling Cutter Structure
Indexable Type
Controlling Mode
Artificial
Automatic Grade
Manual
Precision
Precision
Certification
CE, ISO 9001
Condition
New
Product Name
Turret Taiwan Milling Machine
Table Size
230X1076mm
Spindle Taper
ISO30,R8,ISO40
Table Travel
670X310X390mm
RAM Travel
315mm
Distance Spindle to Table
0-350mm
Spindle Speed
66-4540rpm/80-5440rpm
Spindle Motor
2.25kw/3HP
Spindle Feed
0.04/0.08/0.15mm/R
Transport Package
WOOD CASE
Specification
CE ISO9001
Trademark
UNITECH
Origin
CHINA
HS Code
84595900
Production Capacity
100SETS/MONTH
Product Description
Vertical Turret Taiwan Milling Machine for sale (X6323 X6325)Mill head from Taiwan,
Variable or step pulley mill head are available.
Mehanite cast iron.
T-cuite B cover.
CE
Milling head swivel, front and back, left--right
Leadscrew, milling head, nut from taiwan
Column and base one piece cast iron, more stable milling
X, Y, Z can be with power feed device
Spindle taper can be ISO30, R8, ISO40,
Standard accessories.
Coolant, work light, tool and tool box, chip tray, guideway with splash guard.
Optional accessories:
DRO, milling chuck, vice, dividing head, slotting head, clamping kit, 24V CE, worktable guieway protection.
| Specification //Code No. | X6323A | X6323B | X6325A | X6325B | X6325 | X6325C | XU6325 | X6325D | X6330 | X6330A | X6333 | ||
| 63008 | 63009 | ||||||||||||
| Table size | 230*1067(9*42) 230*1246(9*49) | 254*1270(10*50) 254*1370(10*54) | 250*1270 (10*50) | 254*127 (10*50) 254*137(10*54) | 305*1370(12*54) 305*1500(12*60) | 330*1370(13*54) 330*1500(13*60) | |||||||
| Long travel | 650 840 | 850 950 | 770 | 850 950 | 870 1000 | 840 1000 | |||||||
| Cross travel | 305 | 400 | 420 | 380 | 368 | ||||||||
| Vertical travel | 400 | 420 | 400 | 420 | 430 | 450 | |||||||
| T-slot No.and size | 3*16 | ||||||||||||
| Ram travel | 312 | 470 | 500 | ||||||||||
| Distance from spindle nose to table surface | 0-415 | 0-405 | 0-350 | 0-450 | |||||||||
| Spindle hole taper | Standard:R8 optional :ISO30/ISO40 | Standard :ISO40 | standard:R8 optional :ISO30/ISO40 | standard :ISO40 | |||||||||
| Spindle travel | 127 | ||||||||||||
| Spindle speed | standard: shift grade 16: 50HZ65-4500,60HZ80-5440 | standard: 50HZ65-4500,60HZ80-3750 | standard: 50HZ65-4500,60HZ80-5440 | ||||||||||
| optional:variable:65-4500 | optional :variable:65-3750 | ||||||||||||
| Auto.quill feed | Threesteps :0.04(0.0015)/0.08(0.003)/0.15(0.006) | ||||||||||||
| Spindle motor | 2.25kw/3hp | 3.75kw/5hp | 2.25kw/3hp | 3.75kw/5hp | |||||||||
| Head swivel | 90° | ||||||||||||
| Head tilting | 45° | 45° | 45° | ||||||||||
| Dimension of package | One miller per case | 1400*1476*2030 | 1516*1550*2080 | 1566*1650*2080 | 1800*2016 (1650)*2180 | ||||||||
| Two miller per case | 1450*1570*2080 | 1650*1790*2170 | 1720*1800*2175 | 1800*2200*2180 | |||||||||
| Three miller per case | 1450*2180*2080 | 1650*2285*2235 | |||||||||||
| G.W/set | 1100 | 1160 | 1380 | 1420 | 1550 | 1590 | 1650 | 1590 | 1700 | 1750 | 2300 | ||
