Large capacity dry type roller press compactor fertilizer machine

Product Description

Fertilizer & chemical 2-6mm granules roll press granulating machine with CE certificate
INTRODUCTION OF OUR COMPANY

TECHNICAL PARAMETERS (for irregular shape):
Notes: Rolled sheet output, finished product output is just for reference and the screen is determined according to the nature of materials.

Model	DH240	DH360	DH450	DH650	DH850	DH1050
Roller diameter (mm)	φ240	φ360	φ450	φ650	φ850	φ1050
Valid usable width (mm)	300	170-230	190-280	290-330	420	500
Roller speed (rpm)	50-100	10-25	10-25	10-25	9-16	8.5-14.5
Max rolled sheet thickness(mm)	4	8	12	16	25	36
Rolled sheet output*(kg/h)	/	1300-2300	2500-3500	5000-7000	12,000-16,000	22,000-38,000
Finished product output ((kg/h))	2000-3000 (Oblate)	900-1300	1800-2500	3500-4000	6,000-8,000	12,000-16,000
Granular size (mm)	3.5/4.2/4.5/ 5.5/6.5 etc.	2-5	2-5	2-5	2-5	2-5
Main unit power (KW)	45	30-37	55-75	90-110	220-250	400
Total installed capacity (KW)	55	55	90	175	400	850
External dimension (mm)	2300×1700×1860	2350×2000×2600	2600×2200×2900	3600×2800×3200	5,000×3,800×4,100	7,000×5,000×6,000
Total weight (t)	5	7	10	21	46	75-85

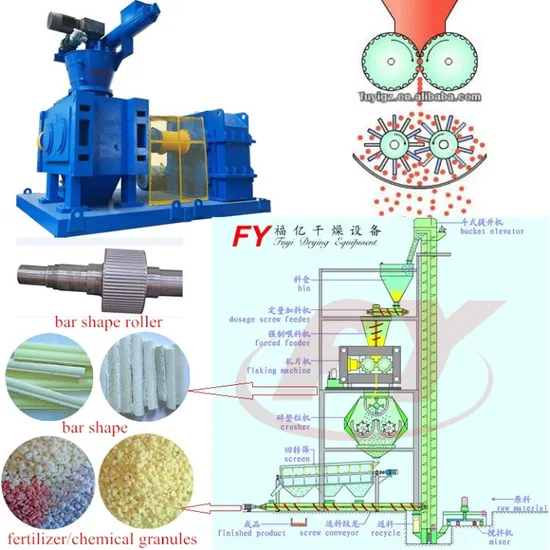

WORKING THEORY
The powder material is loaded from the top side of the machine and conveyed towards
the compacting rollers by a special motorised helical screw that ensures a constant and
even feeding rate.
The compacting rollers, made of steel can be caved of different shapes and
size to produce different types of finished products according to different
customer's requirements.
The crusher can be used for crushing the tablets formed by flaking machine to obtain a granular products.
The final granules size is determined by the net mesh that allows for passing only of materials with desired size. Unqualified will be crushed inside until it's qualified.
PACKAGING AND SHIPPING
The storage-packing section of the plant is the same as for other fertilizer plants.
The pacakging specification usually is 50kg per bag, if client requires 1 ton per bag, should notify us in advance.
Due to the big dimension of our machines,normally without pacakging, but directly loaded into Open Top Containers by crane. Only some small parts/accessories can be packed into ply-wooden boxes.

AFTER SALE SERVICES
After-sale Techniical service is available if customers required. Q:Do you provide the installation service after ordering your machines? A:As for the single machine, we provide the users instruction.
As for the production line,we provide the professional construction drawing, and arrange the engineer guide the user install the machines.Help the user train the skilled workers.
Q:Can you be sure the wearing parts supply in future?
A:We promise to provide the wearing parts to user in future.
Q:How about the warranty of our machines?
A:Our production line, and single machine's warranty is 1 year.
Q: Do you allow us to visit your factory for try some machines?
A:We warmly welcome the clients to come to our factory for trying each machine.
Q:Can we see some fertilizer plant with your machine?
A:We can take the customer to visite some fertilizer plants with our equipements.



Welcome our sincere clients come to visit our factory!!
