2019 New Portable Concrete Crusher with Large Capacity

Product Description

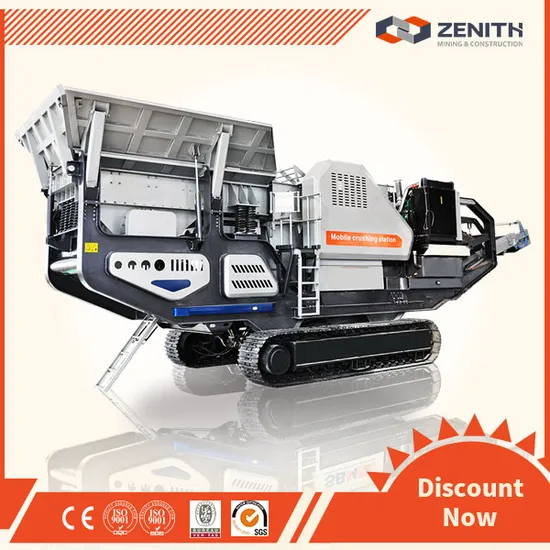

Introduction of Portable Concrete Crusher

Concrete Crusher Plant is composed of Traveling Chassis, Impact Crusher, Triple-Deck Vibrating Screen and Belt Conveyor, which is installed after primary crusher, and this plant is used for fine crushing and screening the products . all the units are erected on the track and formed one independent working units, it can quickly move to pointed site, easily setup to handle different products. Movable crushing plants provides a new field of business opportunities for contractors, quarry operators, recycling and mining applications. It offers high efficient and low cost project plan without environment limit for the client.

Applications of Portable Concrete Crusher

1.Quarry
2.Road Construction
3.Aggregate Processing
4.Railway Engineering
5.Recycling Applications
6.Rock & Mineral Operations

Features of Portable Concrete Crusher

1.Easily setup
2.Low cost
3.High efficient
4.Quick road transportation
5.Incorporated & Smart design
6.High crushing ratio, powerful crushing
Portable Concrete Crusher parameters:

Model	LD-PE600x900	LD-PE750x1060	LD-PEW860
Feeder	GZD-960x3800	GZD-960x3800	GZD-1100x3800
Jaw Crusher	PE600x900	PE750x1060	PEW860
Main Conveyor	B800x8.5 M	B1000x9 M	B1000x9 M
Height of Main Conveyor (mm)	3200	3500	3600
Side Conveyor(Optional)	B450x3 M	B500x3.5 M	B500x3.5 M
Height of Side Conveyor (mm)	2800	3100	3100
Generator (KW)	180	250	300
Transport Length (mm)	11800	13500	13500
Transport Width (mm)	2900	3200	3200
Transport Height (mm)	3660	4120	4150
Total Weight (t)	40	60	63
