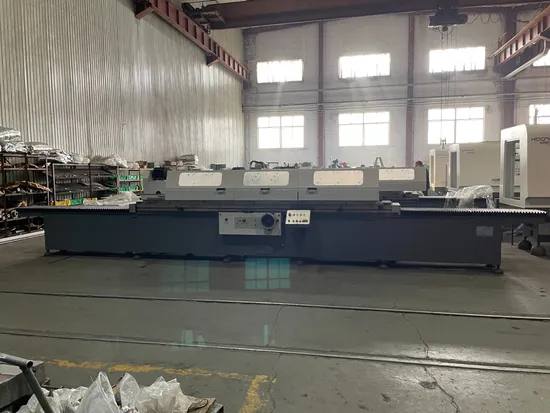

Cylindrical Grinder External Grinding Machine M1332*2000 with Max. Diameter 320mm

Product Description

1.Machine structure
I.The wheel transverse feed is driven by hydraulic pressure to realize micro automatic periodic feed and rapid movment,it can also do manually rough or fine feed.
II.M1350/M1363 series table and wheelhead guideway adopt static guideway,low speed movement is stable.
III.M1350/M1363 series wheelhead adopt high rigid dynamic and static spindle,high rotary precision,good rigidity.
IV.the workhead can realize variable speed with inventor.it can be adjusted at any angle within 90 degrees counterclockwise to adopt to do the external and internal grinding of conical workpiece.
2.Our advantages 1.Factory direct sales, product quality ,delivery time and after-sale services can be effectively guaranteed2.Big listed company who has more than 50 years manufacture experience,more than 30years international trade experiences.3.we have been cooperating with many companies abroad,such as KNUTH ,OPTIMUM in Germany, BERNARDO in Austria,MSC, GRIZZLY in USA and some other companies.The quality of our machines has gotten good reputation from them
3.Parameters

specifications	Unit	model
		M1332	M1332H	M1350	M1363	MQ1380A
Max.length grinding(O.D)	mm	1000/1500	2000/3000	1500/2000/3000/4000	2000/3000/4000/5000	3000/4000/5000
center height	mm	180	180	270	370	500
Dia. grinding(O.D)	mm	8~320	8~320	25~500	30~630	50~800
Max.weight of workpiece	kg	150	500	2000	3000	3000
workhead
swiveling angle	degree	+90	+90	+90	+90	+90
center taper	MT	5	5	6	metric 80#	metric 80#
spindle speed(stepless)	r/min	50HZ 26-190	50HZ 26-190	50HZ 10-100	50HZ 6-60	50HZ 5-50
wheelhead
Max.dimension of wheel(O.D*W*ID)	mm	600*75*305	600*75*305	750*75*305	750*75*305	900*75*305
wheel peripheral velocity	m/s	35	35	35	35	35
hand feed per.revolution	mm	rough 2	rough 2	Rough 4	Rough 4	Rough 4
		Fine:0.5	Fine 0.5	Fine 0.5	Fine 0.5	Fine0.5
hand feed per. graduation	mm	rough 0.01	rough 0.01	rough 0.02	rough 0.02	rough 0.02
		fine 0.0025	fine 0.0025	fine 0.0025	fine 0.0025	fine 0.0025
worktable
Max.swiveling angle of worktable clockwise	degree	3	3	3/2/2/1	2/1/1/1	1
Max.swiveling angle of worktable anticlockwise	degree	7/6	5/3	6/5/3/2	4/3/2/1.5	3/2/1.5
longitudinal speed range of worktable	mm/min	0.1-4	0.1-4	0.1-3	0.1-2.5	0.1-2.5
tailstock
center taper	MT	4	5	6	metric 80#	metric 80#
Quill travel	mm	30	30	70	70	70
Motor
wheel head motor power	KW	11	11	15	22	22
workhead motor power	KW	1.5	2.2	4	15	15
machining accuracy
roundness	μm	3	5	3/5/5/5	5	5
cylindricity	μm	8	10	8/10/10/15	10/10/15/15	10/15/15
roughness	μm	Ra0.2	Ra0.32	Ra0.32	Ra0.32	Ra0.32
machine weight	t	4.6/5.1	5.7/7.1	10/11/13/17	18/22/23/26	22/23/26
package size	cm	326*203*205(1000)	530*190*205(2000)	543*225*210(1500)	720*228*226(2000)	876*240*230(3000)
		426*203*205(1500)	730*190*205(3000)	583*225*210(2000)	876*228*226(3000)	1100*240*230(4000)
				796*225*210(3000)	1100*229*226(4000)	1270*240*230(5000)
				996*225*210(4000)	1270*240*226(5000)

4.Standard accessoires
5.Optional accessories
6.Workshop--show that we are large proffesional manufacurer
7. Machine packing --Serious, meticulous, professional, to ensure that each machine and parts are firmly fixed on the packaging tray
8. Company honors
9. International exhibitions
10.After-sale services--Let you have no worries
1. The warranty is14 months after machine out of our company.During the warranty period of the machine tool due to design, manufacturing, quality of parts and other reasons caused by the fault, free treatment or replacement of new parts.
2. After the warranty period, lifelong paid maintenance and service will be provided.Technical support forever.
3. Provide spare parts and spare parts at preferential prices forever.
