Manual Natural Rubber Sleeved Pinch Valve Pn10 for Russian Market

Product Description

Product Description Product Name: Aluminium pinch valve with rubber hose
what's the pinch valve?
Pinch Valve , also known as pinch valve, air bag valve, hoop break valve and so on. The casing is the most important part of any pinch valve and is the heart of the pinch valve, providing resistance to corrosion, wear and pressure. The quality of the pinch valve depends on the quality of the casing. Use pneumatic, electric, manual or hydraulic actuation to extrude the casing for switching/adjusting.

Pressure	MPa
Nominal pressure	1.0
Shel Strength	1.5
Sealing Test	1.1
Max. temperature	120°С
Fitting medium	water,steam,oil

Part name		Material
Body		Aluminium alloy
Bonnet		Aluminium alloy
Stem		Steel
Hose		Natural rubber/EPDM
Handwheel		steel
Operated		Manaul/Gear box/pneumatic

PN	DN	L (mm)	D (mm)	D1 (mm)	D2 (mm)
1.6	50	210	160	125	100
	80	300	195	160	135
	100	360	215	180	155
	150	510	280	240	210
	200	650	335	295	265
	250	800	405	355	320
	300	950	460	410	370

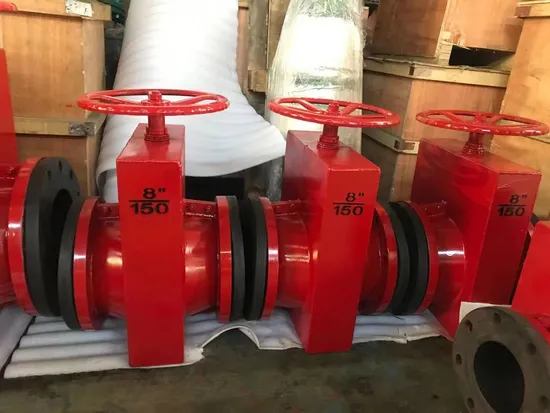

Detailed Photos
Packaging & Shipping
After Sales Service
Our enthusiastic and friendly customer service representatives are ready to assist with any questions or problems.

Company Profile
FAQ 1.What is the pinch valve?
Pinch Valve , also known as pinch valve, air bag valve, hoop break valve and so on. The casing is the most important part of any pinch valve and is the heart of the pinch valve, providing resistance to corrosion, wear and pressure. The quality of the pinch valve depends on the quality of the casing. Use pneumatic, electric, manual or hydraulic actuation to extrude the casing for switching/adjusting.
2.peculiarity
-.no obstruction flow path, full path
-.low flow resistance
-.No blocking
-.It can still be closed with zero leakage when there are residual particles
-.no gap and dead Angle hinder valve operation
-.low maintenance costs
-. simple design, not affected by the harsh external environment
