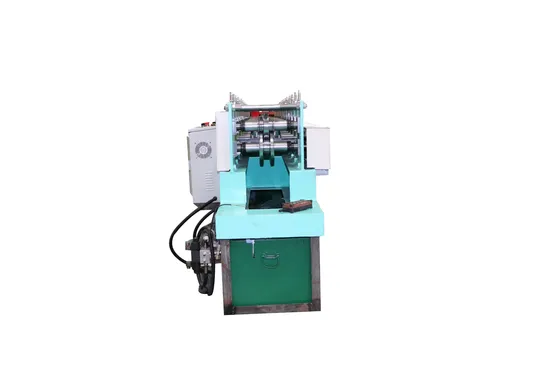

Factory Direct Galvanized Light Keel Hat Profiling Roll Forming Machine
| US$12,000.00-20,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
YX33-56
Certification
CE, GS
Customized
Customized
Condition
New
Control Type
PLC
Automatic Grade
Automatic
Hydraulic Power for Uncoiler
1.5kw
Hydraulic Power for Punching
5.5kw
Air Power for Punching
1.5kw
Hydraulic Power for Forming Cutter
2.2kw
Forming Steps
13+3 Steps for Reshaping
Name
Steel Profile Making Machine
Transport Package
Standard Packed for Export
Specification
6tons
Trademark
XHH
Origin
China
HS Code
8455229090
Production Capacity
20sets/Month Steel Profile Making Machine
Product Description
1. Specifications of Steel Profile Making Machine
1)Main Techincal Data:
| Size | YX33-56 |
| Weight | 2500KGS |
| Hydraulic Power for Uncoiler | 1.5KW |
| Hydraulic Power for punching | 3.7KW |
| Air Power for punching | 1.5KW |
| Hydraulic Power for forming cutter | 2.2KW |
| Forming Steps | 13+3 steps for reshaping |
| Processing Speed | 12-18m/min |
| Voltage | 380V/50HZ/3PH |
| Forming Thickness | 0.4-0.8mm |
| Height of Purlin | 33mm |
| Width of Purlin | 56mm |
2)Main Accessories:
(1) .Main Forming Machine;
(2) .5 Ton Manual Uncoiler;
(3). Hydraulic Punching Device;
(4) .Hydraulic System;
(5) .PLC Computer Controlling System With Touch Screen;
(6) .Hydraulic Forming Cutter;
(7) Tools;
(8) Operation Manual.
