Single Drum Spiral Quick Conveyor Belt Freezer Freezing Machine
| US$12,999.00-789,999.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
ST-LS
Usage
Biscuit, Cake, Pizza, Bread, Seafood
Power Source
Electric
Timing Device
With Timing Device
Type
Cooling Conveyor
Voltage
380V
Customized
Customized
Function
Cooling&Freezing
Processing Time
20~180minutes
Temperature
-40c or Customized
Material
Stainless Steel
Refrigerant
Freon or Ammonia or CO2
Service
Local Installation
Deforsting Time
8~12hours Per Time
Speed
Adjustable
Belt Size
Adjustable
Overall Dimensions
Customized
Transport Package
Wooden Case
Specification
300~4000kg/hr
Trademark
SOFT
Origin
Cn
HS Code
843860
Production Capacity
100units Per Year
Product Description

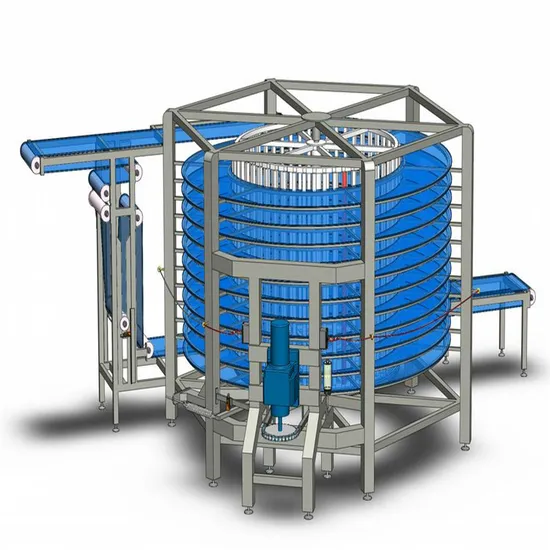

Product DescriptionSpiral Belt Conveyor Cooling Freezing Machine
1.Raw Material:All kinds of food, such as cookie, biscuits, toast, bread, pizza,seafood, packed food, meat, spring roll, etc.
2.Output capacity:300-4000kg/h
3.Length: Customized
4.Cooling Temperature: Customized.
5.Main Machine material: Food Grade Stainless Steel
6.Cooling Time: 10-180minutes or customized
7.FOB Price Budget: USD12,900-789,000
8.After-sales Service Provided:Engineers available to service machinery overseas
9.Warranty:1 Year
The spiral conveyor belt quick freezer is advanced design and excellence performance. It has the advantage of energy-conservation, high efficiency, small area requirement and food preservation. The prominent characteristic of this machine is larger freezing area and wide applicable area. The device is applied to food quick-freeze of bar, bulk, slice, particle food, with manifold freezing forms: individual freezing, dollop freezing and discal freezing. With totally enclosed wind tunnel structure for multi-directional wind, such as up and down, front and back ,left and right, which improve quality and efficiency.
Detailed Photos
Product Parameters
Single Drum
| Model | ST-LS200 | ST-LS300 | ST-LS500 | ST-LS1000 | ST-LS1500 |
| Capacity KG/HR | 200 | 300 | 500 | 1000 | 1500 |
| Power KW | 3.55 | 5.15 | 11.2 | 22 | 31 |
| Refrigeration Consumption KW | 30 | 43.5 | 75 | 145 | 225 |
| Input Temperature ºC | +15 | +15 | +15 | +15 | +15 |
| Discharge Temperature ºC | -18 | -18 | -18 | -18 | -18 |
| Inner Circulation Temperature ºC | -36±2 | -36±2 | -36±2 | -36±2 | -36±2 |
| Freezing Time Minutes | 10-60 | 10-60 | 10-60 | 10-60 | 10-60 |
Double Drum
| Model | ST-LLS1000 | ST-LLS1500 | ST-LLS2000 | ST-LLS2500 | ST-LLS3000 |
| Capacity KG/HR | 1000 | 1500 | 2000 | 2500 | 3000 |
| Power KW | 22.9 | 31.9 | 46.2 | 55.1 | 62.5 |
| Refrigeration Consumption KW | 145 | 225 | 296 | 370 | 440 |
| Input Temperature ºC | +15 | +15 | +15 | +15 | +15 |
| Discharge Temperature ºC | -18 | -18 | -18 | -18 | -18 |
| Inner Circulation Temperature ºC | -36±2 | -36±2 | -36±2 | -36±2 | -36±2 |
| Freezing Time Minutes | 15-90 | 15-90 | 15-90 | 15-90 | 15-90 |
