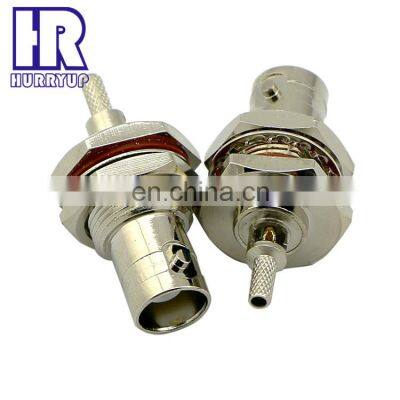

RF Coaxial BNC female to C Straight waterproof BNC connector
Product Description
Product DescriptionRF Coaxial BNC female to C Straight waterproof BNC connector
Specifications
| OEM,Factory price,Fast delivery,Stable quality | |
| RF coaxial connector | |
| Product Code:BNC-C-KY17-1.5 Female Connector | Product Name:BNC Connector |
| Part Number:CW8 | Environment protect information: satisfy RoHS demand |
| Electrical performance | ||
| Characteristic impedance: | 50Ω | |
| Rated current: | 0~18GHz | |
| Contact resistance: | inner conductor≤3mΩ outside conductor≤2mΩ | |
| Dielectrically withstanding voltage: | 1000VRMS | |
| Voltage rating: | 335 VRMS | |
| Insulation Resistance: | ≥ 5000MΩ | |
| Mechanical performance | ||
| Inner conductor separating force: | ≥0.28N | |
| Durability: | 500 times | |
| Material and surface treatment: | metal material, workmanship and surface treatment | |
| Contact | ||
| Material of male: | copper alloy | |
| Surface treatment: | full copper and silver-plated | |
| Workmanship: | machining operation | |
| Material: | copper alloy | |
| Surface Treatment: | full copper and silver-plated | |
| Workmanship: | machining operation Plastic, workmanship and forming | |
| Insulator | ||
| Material: | polytetrafluoroethylene | |
| Workmanship: | machining operation | |
| Operation environment | ||
| Temperature Range: | -55℃~+155℃ | |
| Shock: | 500 m/s2 | |
| Vibration: | 10~2000Hz,10m/s2 | |
| Structure and Dimension | ||
| Maximum dimension of plug: | Customized | |
| Brief Introduction | ||
| Package and Store: | 100PCS/package | |
| We are a large company manufacture RF coaxial connectors. BNC connector(CW8)is one kind of microminiature RF coaxial connectors with snap-on coupling self-lock mechanism,Characteristic impedance is 50Ω.They are widely used in connection with RF coaxial cable or the transmission of RF signal in the mobile communication system, GSM,GPRS,CDMA,LTE,GPS,GNSS,GLONASS,BEIDOU corresponding to the network,IT field and LANS etc. The characteristic of connector is in small volume, light weight and convenient connection. | ||
