High Quality Children′s Toys Extrusion Blow Molding Machine
| US$38,600.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
ABLD90
Making Method of Parison
Extrusion-Blow Molding
Automation
Automatic
Computerized
Computerized
Certification
CE
Max. Product Volume
60L
Application
30~60L Bottles, Jerry Cans, Toys
More Application
Plastic Oil Drums, Containers, Jerry Cans, Barrels
Suitable Material
PE.PP,PVC,PS,PETG,So on
Mould Material
S136, P20, 4Cr13
Guarantee
12 Month
Delivery Time
55~65 Working Days
Screw
90 mm
Max Die Mouth
280~340mm
Clamping Force
210~260 Kn
Max Mould Size
700X950mm
Template Distance
450~1000mm
Heating Power
5~7 Kw
Machine Size
4.6*2.4*3.8(M)
Machine Weight
12 T
Transport Package
Film Packaging
Specification
ABLD90
Trademark
DAWSON
Origin
Jiangsu Zhangjiagang
HS Code
8477301000
Production Capacity
50~60 PCS/H
Product Description
DAWSON MACHINERY & MOULD GROUP***EXTRUSION BLOW MOLDING MACHINE EXPERT*** Our customers are all around the world.
Vietnam, Australia, Indonesia, Malaysia, Thailand, Sri Lanka, Kazakhstan, Russia, UAE, Saudi Arabia, Malta, Romania, Italy, India, Syria, Ethiopia, Egypt, Sudan, Tunisia, Algeria, Kenya, Nigeria, South Africa, Zimbabwe, Mexico, Guatemala, Ecuador, Colombia, Venezuela, Peru....

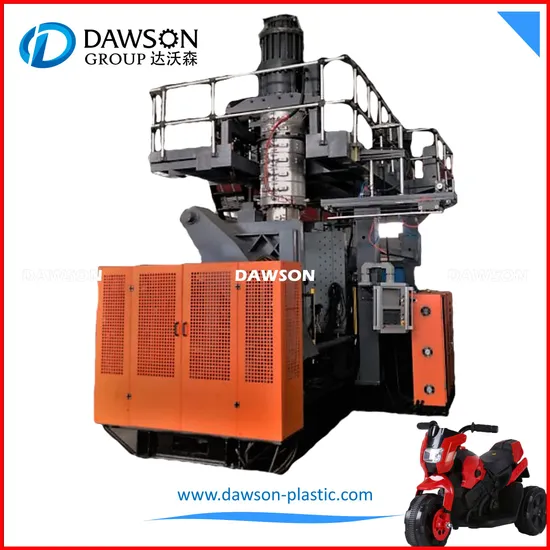

Extrusion blow molding machine ABLD90
Extrusion blow molding machine ABLD90
| Basic parameters | Suitable material | PE.PP,PVC,PS,PETG,so on | |
| Max volume | ABLD90 max: 60L | ||
| Output capacity | 40~50pcs/h | ||
| Size | 4.6×2.4×3.8(M) | ||
| Weight | 12T | ||
| system | Specification | Parameters | Note |
| Plasticizion system | Summarize | High efficient low power consumption plasticizion system,transducer control,self-protect function when started at low temperature | |
| Reducer | Hard finishing,High intension,Low noise reducer | ||
| Screw | ∮90mm,L/D ratio 25, 38CrMoALA | Cooling system available | |
| Plasticization | 100 ~ 130Kg/H | HDPE | |
| Heating Zone | 4 Aluminum Heater | Automatic heating | |
| Heating power | 15~18KW/H | ||
| Extrusion Motor | Three phase asynchronous motor (380V,50HZ) | ||
| Cooling Fan | 4zone | Automatic cooling | |
| Extrusion system | Summarize | High-grade alloy steel, center feeding | |
| Die head number | 1 | ||
| Center distance of die heads | / | ||
| Max die mouth | ∮280~340mm | ||
| Heating zone | 4 Stainless steel heating cycle | ||
| Heating power | 5~7KW | ||
| Clamping system | Summarize | High intension, rigidity, center mold locking, stable mould opening and clamping system | |
| Clamping force | 210~260KN | ||
| Template distance | 450~1000mm | ||
| Max mould size | 700X950mm | ||
| Mould material | High grade 50# steel | ||
| Electric system | Summarize | PLC+ touch screen(man-machine interface)standard extrusion blow molding machine controlling system(AUTO monitoring, fault-alarm, auto counting ,auxiliary function available) | Japanese Mitsubishi PLC system |
| Operate interface | Touch screen, automatic self-diagnose alarm system | ||
| Temperature control | Automatic temperature control module | ||
| Movement control | Japanese Mitsubishi, Chinese/English Version | ||
| Electric protection | Ampere overload, electric short circuit self-protection function | ||
| Hydraulic system | Summarize | Multiple function hydraulic integrated block Proportional control, high efficient | |
| Oil pump motor | Three phase asynchronous motor (380V/220V,50/60HZ) | ||
| Oil pump | Imported double pump | ||
| Valves | Imported oil pump valves and connections | ||
| Oil pipes | Double layer overpressure resistant | ||
| System pressure | 60Kg/cm² | ||
| Cooling system | Separate water cooling cycle, oil cooler cooling system | ||
| Pneumatic system | Summarize | Taiwan AIRTAC pneumatic system | |
| Air pressure | 0.6Mpa | ||
| Air displacement | 0.8M3/min | ||
| Electromagnetic valve | Taiwan AIRTAC | ||
| Cooling system | Summarize | Separate cooling system of mould, barrel and oil system | |
| Cooling medium | Water | ||
| Water flow | 90L/min | ||
| Water pressure | 0.3-0.6MPa | ||
