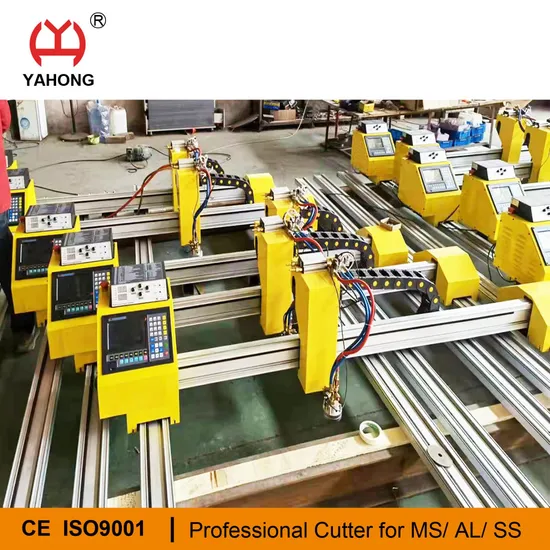

Portable Gantry CNC Plasma Cutting Machine Flame Cutting Price with 200AMP Plasma Cutter for Metal

Product Description

Portable Gantry CNC Plasma Cutting Machine Flame Cutting Price with 200AMP Plasma Cutter for Metal
I.Advantages of metal plasma cutting machine:
1. The portable gantry cutting machine is an upgraded product of the portable cutting machine. It adopts bilateral drive and has good stability.
2. The machine is cheap and economical, and can realize automatic batch cutting.
3. Install the plasma automatic height controller. During the machine cutting process, the cutting torch can automatically rise and fall according to the unevenness of the steel plate to prevent the cutting torch from crashing, extend the life of the cutting torch, and save costs.
4. The control system has a graphic display function, which can observe the cutting process in real time. And supports 9 languages, it is easier to use your own native language to operate. With power-off memory function, you can continue cutting after the power-on, saving time for cutting from the beginning. There are 48 kinds of graphics, regular graphics can be directly used, change the size, set the quantity, save the computer drawing time and improve efficiency.
5. Using well-known brand stepper motor driver, stable operation and low noise.
6. Equipped with fully automatic nesting software, which saves time for typesetting and improves the utilization rate of steel plates.
7. Optional: remote control, the control distance is 30 meters, the operation is more convenient.
8. Optional: Plasma anti-collision holder, when the torch hits the steel plate, it will automatically stop to prevent the torch from crashing and save costs.
9. Optional: flame automatic ignition, to avoid burning hands when using a lighter to ignite, and to ensure safety.
10. It can be equipped with various power plasma power sources, such as 100A, 130A, 200A, etc, to achieve plasma cutting. The plasma cutting speed is 3-5 times that of flame cutting, which improves production efficiency.

II.Parameters for plasma cutting machine:

1	Cutting Shape			Steel plate with any plane shapes fromed by straight lines and arcs.
2	LCD Display Dimension			7"Inches
3	Effective Cutting Size			2000*3000mm
4	Flame Cutting Thickness			5-200mm
5	Plasma Cutting Thickness			0.5-25mm (according to plasma power)
6	Height Control			Electric Height Control+Arc Voltage Height Control(THC)
7	Motor and driver			Stepper motor and driver
8	Cutting Speed			0-8000mm per minute
9	Drive Mode			Double driver
10	Cutting Mode			Plasma and flame cutting
11	lifter			one lifter for plasma and flame
12	Ignition Device			Auto
13	File Transmission			USB
14	Cutting Gas			Flame: Oxygen+ Acetylene/ Propane/ Coal gas Plasma :air
15	Gas Pressure			Max. 0.1 Mpa
16	Oxygen Pressure			Max. 0.7 Mpa
17	Cutting Accuracy			±0.5mm
18	Software			Professional Nesting Software(support Auto CAD/ Solidworks/ CAXA/ Types etc.)
19	Power Supply Voltage/Frequency			220V/110V 50HZ 60HZ
20	Rated Power Supply			500W
21	Working Temperature			-10ºC-60ºC. Relative Humidity from 0-95%

III.Cutting Samples of cnc plasma cutting machine:
IV.Hot Sale Plasma Cutter Model and Quality Cutting Thickness
According your cutting thickness ,please choose suitable plasma model for you.

VI.Why Choose US?
1. More than 10 years of production experience to ensure product quality and timely delivery.
2. The perfect after-sales service team can solve all kinds of problems in time. You can communicate via email, phone, whatsapp, skype, wechat, etc.
3. We are a manufacturer, have enough spare parts and consumables, and deliver them in time to solve your worries.
4.Provide OEM/ODM Service.

VII.Certificates
