304 Explosion Proof 700tvl Sony CCD Mini Full Color Analog Camera

Product Description

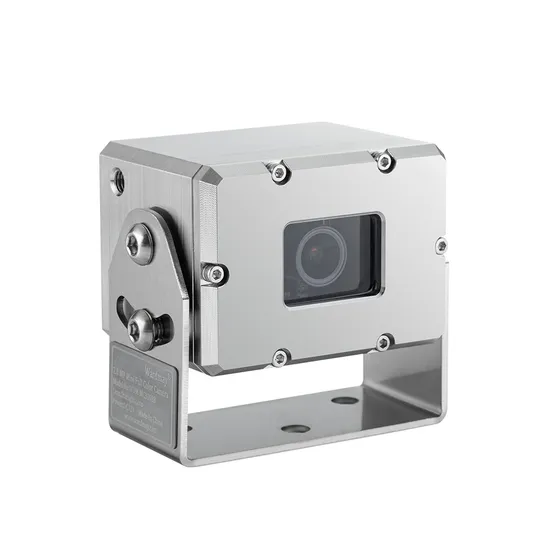

304 Explosion Proof 700TVL Sony CCD Mini Full Color Analog Camera
Products Description:
Cameras of the WDM-MC3000B is a kind of compact anti-corrosion camera which is widely used in heavy or large mobile equipment, such as mobile cranes, forklifts, tower cranes, marine, excavators, loaders, aerial cranes and so on.
The main characteristics are as follows:
Adopt 304 stainless steel material ensures its own durability and can also cope with more complex working environments
The camera glass is made of thick and highly transparent tempered glass which can withstand stronger impacts;
Built in 2.5W automatic heating system, which can cope with situations where it cannot be used normally due to icing in extreme low temperature weather (optional);
Adopt Sonny ultra-low illumination chip, combined with F1.0 lens, which can achieve full color starlight image;
Adopt double-tooth self-locking design which can handle the situation where the mobile device is vibrated and causes the image offset;
Following the explosion-proof design concept, the whole camera adopts isolation design to avoid the phenomenon of equipment being unable to work normally due to electric shock caused by the housing.
Specifications:

Technical Data	CCD	AHD (4 In 1)	6MP (IP)
Image sensor	1/3″ Sony CCD Sensor	1/2.8″ Sony Sensor	1/2.8″ Sony Sensor
Resolution	976 (H) × 582 (V)	1920 (H) × 1080 (V)	2592 (H) × 1944 (V)
High light sensitivity	0.005Lux	0.0001Lux@F1.2	0.0001Lux@F1.2
Image processing	Auto-exposure, automatic white balance Dynamic gamma correction, tone-mapping, overlays
Lens	2.8/3.6/4/6mm (Horizontal view angle:40°/70°/90°/100°/115°)
Night Vision Distance	Up to 15 m visibility in the dark
Housing	304 Stainless Steel
Housing protection class	Safe against condensation and jet washers (IP68 and IP69K)
Degree of protection	Resistant to immersion in water and high- pressure cleaners (IP68 and IP69K)
Mechanical resistance	Specially for heavy-duty applications, shockproof to100g, vibration resistant to 10g in accordance.
Power consumption	Max. 3W ( incl. Heating )
Power supply	12V DC For standard (9~32V DC customized)
Operating temperature	-50 °C...+85 °C (only support by automatic heating system)
Video System	PAL/NTSC
Weight	1 Kg
Package contents	WDM-MC3000B heavy-duty camera / Bracket set / Operating instructions

Product Show:
Accessories:
Company Culture:
How to order from us
1.Please confirm the model numbers and quantities that you would like to purchase to our sales person, or email to us.
2. We will send you a Proforma Invoice to specify net cost of mentioned goods and other relevant charges once you confirm the order.
3. After you arrange the payment and send us your bank slip, we will put your order down to production, and let you know the ready date in 2 days.
4. When the goods are finished, we will send them by air express, or by sea, or other available shipping methods appointed by customers, and let you know the tracking number and estimated time of arrival.
MOQ
1.For the sample t order, we have no limit for the quantity.
2. From the second order, the MOQ is 50pcs.
3.OEM MOQ is 100pcs/model, Special cases can be negotiated
Payment Terms
T/T, Western Union, PayPal, Money Gram
1. Under T/T, there will be USD30.00 bank charge for each individual remittance.
2. We can put customers' orders down to production once we get the bank slip copy.
3. If order value less than 50,000USD, we should get 100% payment before production;
Lead Time:
1.Sample order can be delivered from our company in 3 working days.
2. General order can be delivered from our factory in 2 - 7working days.
3. Big order can be delivered from our factory in 15-20 working days at most.
Shipping:FEDEX, DHL, TNT, UPS, EMS, HongKong Post, Aramex, Air Freight, Ocean Shipping
OEM/ODM Service
1 If the total order quantities are above 50pcs, we can silk-screen print customer's logo on the products, and put customer's model numbers in the labels and boxes by free of charge.
2. We accept ODM projects, and welcome your enquiries!
Warranty Policy
We provide 2 years warranty for CCTV Cameras and DVRs after the shipment date. Any product proves defective under normal usage, excluded improper use, shipping accident and human fault.we will repair or replace it by free of charge.
Technical Support
We have professional technical support team to support our customers, and if you have any question for the technology of our products, please email to us, and we will reply to you immediately. Also if you have any doubt for the information on our website or any feedback for the quality of our products, please email to us, and thanks for your all comments in advance.
Q: Why do you choose us?
1) Prompt reply. Your inquiry related to our products or price will be replied within 24 hours.
2) OEM&ODM Service: OEM to help customers to promote their brands. OEM Logo service provided free of charge if quantity reached 100pcs. Any your idea on camera we can help you to design and put it into products.
3) Considerate service: keep customers notified the order's information including production, shipping, etc information timely and do our best to help save the purchasing cost.
4) Customer-based management policy: will turn the overpaid or underpaid shipping cost & intermediary bank charge into next new order.
5) Technical support. In before sale and after sale
6) Package.Standard Carton, well to protect the cameras during the shipping, Smart Package well to help you selling the products.
7) Credible WARDMAY
-- The 9th year golden supplier of Made-In-China
Welcome to test our sample!
