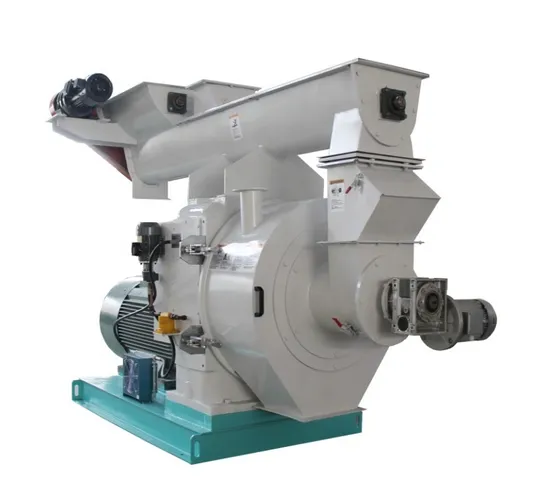

Wood Sawdust Rice Husk Pellet Extruder Machine

Product Description

Pellet Mill 1. Adopt high-precision main drive gear and quick-release hoop type ring die, making efficiency increased by 20% more than others.
2. The ring die of this industrial is made of special material, adopting finish machining, heat treatment and unique drilling technic, so that to achieve the requirements of making premium pellets.
3. All the driven parts adopts high-quality transmission bearings and seals, so that to ensure the drive efficient, smooth operation and low noise.
4. Equipped with international advanced compensation type bibby coupling: higher reliability and lower breakdown rate.
5. Added non-stop refueling system and air cooling system.
Products Description
TITAN pellet mill machine widely used to make pellets from light substance, such as paddy husk, wood chips, sawdust, straw, pasture, chrysanthemum, palm leaf and so on; The feeder's especial structure makes materials conveyed evenly, feeder has a variable speed controller to meet different outputs requirements; The bearing and oil seal in the main drive are imported to ensure highly-efficient, stability and high quality;The alloy steel die is with international advanced equipment and techniques, and has long service life, and can make slippery pellets of the highest quality. The reducer's life is extended 3 times than other model.The roller bearing adopts independent automatic injection system.Its performance is more stable and the service life is much longer.

Model	Power(kw)	Capacity(t/h)	Weight(t)
TITN470	55	0.7-1.0	3.6
TITN560	90	1.2-1.5	5.6
TITN580	90	1.0-1.5	5.5
TITN600	110	1.3-1.8	5.6
TITN660	132	1.5-2.0	5.9
TITN760	160	1.5-2.5	9.6
TITN850	220	2.5-3.5	13
TITN860	220	2.5-3.5	10

*Figures will vary based on input material.*Figures will vary based on machine specifications
Widely applied in varieties of raw material
-. Paddy husk
-. Straw
-. Stalk
-. Branch
-. Peanut shells
-. Wood / Waste Wood
-. Sawdust
-. Wood Shavings
-. Grass
-. Bale
Production base
Production flowsheet
Accessoires
Installation base
