Hot Sale Hook Fixed Type Air Ptessure 4/6 Bar 2ton 5ton 10ton Chain Pneumatic Air Hoist for for Automobile Manufacturing on Sale
| US$169.00-299.00 | 1 Piece (MOQ) |
Basic Info.
Application
Double Beam Crane, Gantry Crane, Bridge Crane, Tower Crane, Single Grinder Crane, Lifting Platform, Small Crane
Type
Air Hoist
Sling Type
Chain
Lift Speed
2.7-20m/Min
Maximum Lifting Height
3-8m
Chain Falls
2
Condition
New
Color
Contact Us
Product Name
Air Hoist
Applicable Industries
Hotels, Garment Shops, Building Material Shops
Usage
Construction Hoist
Core Components
Motor, Bearing, Gearbox, Engine
Lifting Speed
2.7-20m/Min
Full Load of Descent
5-38m/Min
Lifting Height
3m
Lifting Capacity
0.16-2t
Showroom Location
None
Power Source
Pneumatic
Weight (Kg)
40 Kg
Empty Lifting Speed
5-42m/Min
Chain Size(mm)
7*21 9*21
Motor Output
0.6-2kw
Air Pressure(Bar)
4-6
Transport Package
Standard Export Packing
Specification
Pneumatic
Trademark
Rayvanbo
Origin
Hubei, China
HS Code
8425190000
Production Capacity
1000sets Per Month
Product Description

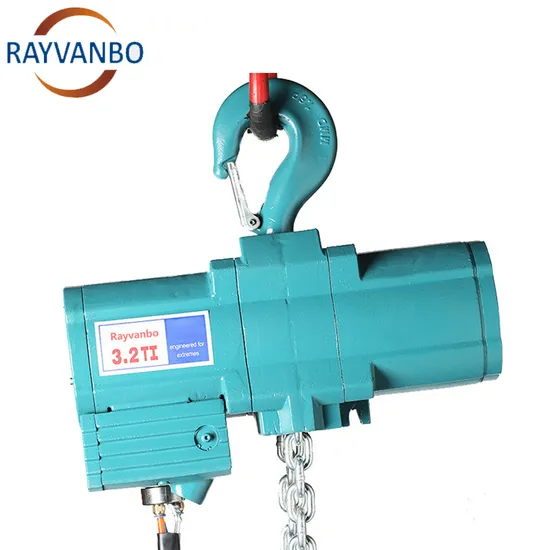

Product DescriptionAir Hoist
250kg 500kg 1000kg Kood explosion-proof pneumatic hoist pneumatic chain hoist In the pneumatic lifting equipment,
the pneumatic chain crane uses air instead of electricity to generate electricity, which is different from the traditional
crane. Compressed air will not produce sparks and explosion-proof, so the air chain crane is suitable for hazardous
areas containing chemical powder, flammable or volatile substances.
Product Details
Product Advantages
Product Parameters
| Capacity | 8T | 10T | 12T | 18T | 20T |
| Work level | M3 | M3 | M3 | M3 | M3 |
| Air pressure | 6Bar | 6Bar | 6Bar | 6Bar | 6Bar |
| Lifting height | 3m | 3m | 3m | 3m | 3m |
| falls of chain | 3 | 4 | 4 | 3 | 4 |
| Lifting motor power | 3.5KW | 3.5KW | 3.5KW | 3.5KW | 3.5KW |
| Full load Lifting speed | 1.2m/min | 1m/min | 1m/min | 0.9m/min | 0.7m/min |
| Full loadlowering speed | 3m/min | 2m/min | 2m/min | 1.9m/min | 1.6m/min |
| Lifting motor air consumption | 5.5cbm/min | 5.5cbm/min | 5.5cbm/min | 5.5cbm/min | 5.5cbm/min |
| Lifting motorAir connection | Rc1/2 | Rc3/4 | Rc3/4 | Rc3/4 | Rc3/4 |
| Supply hose insidediameter | 25mm | 25mm | 25mm | 25mm | 25mm |
| Lifting chain size | 13*36mm | 13*36mm | 13*36mm | 13*45mm | 13*45mm |
| Length of control hose | 3m | 3m | 3m | 3m | 3m |
| Sound level | 79dB | 79dB | 79dB | 78dB | 78dB |
| Traverse motor power | 2*0.25KW | 2*0.25KW | 2*0.25KW | 0.7KW | 0.7KW |
| Traverse speed | 10m/min | 10m/min | 10m/min | 5m/min | 5m/min |
| Traverse motor air consumption | 2*0.6cbm/min | 2*0.6cbm/min | 2*0.6cbm/min | 1.3cbm/min | 1.3cbm/min |
| traverse motor air connection | Rc1/4 | Rc1/4 | Rc1/4 | Rc1/4 | Rc1/4 |
| traverse motor supply hose inside dia | G3/4 | G3/4 | G3/4 | G3/4 | G3/4 |
| Traverse motor weight | 200kg | 200kg | 200kg | 260kg | 260kg |
| Total weight | 358kg | 358kg | 388kg | 688kg | 688kg |
