Automatic Rapier Sample Loom

Product Description

Product Description

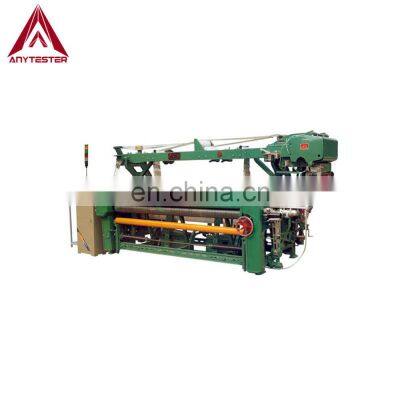

Product DescriptionAT248 Automatic Rapier Sample LoomAT248-100 Automatic Rapier Sample Loom is used for sample weaving of all kinds of fabrics, such as cotton, hair, jute, silk, chemical fiber, blending, etc. It consists of dobby shedding, rapier weft insertion, mechanical let-off, mechanical beating-up, mechanical take-up and pneumatic selection of weft yarns. It is widely used in weaving mills, scientific research units, textile institutes and foreign trade companies, etc.SpecificationModelAT248-100Reed width100cmYarn linear density range5~500texWeft yarn count rangeCotton 5Ne~80NeJute 8Nm~130NmMan-made fibers 1200dtex~75texWeft density200weft/min, adjustableNo. of heald frameMax. 16pcsColor selection6 color or 8 colorLet-offActive electronic controlTake-upMotor controlSheddingDobby sheddingBeating-upMotor controlDisc diameter of warp beamФ600mmDiameter of cloth rollMax. Ф300mmPowerAC380V 50Hz, three-phaseDetails and FeaturesDobby shedding, active electronic let-off and automatic beat-up and take-up;Rapier weft insertion, suitable for various yarns;Heald frames up to 16pcs, easy to mount and dismount;Automatic selection of weft yarns up to 6 colors;Mechanical let-off, beating-up and take-up and pneumatic shedding and selection of weft yarns;Our CompanyPacking&DeliveryPacking Packaging Details1. The equipment is covered with film is protect it from water vapour during the trip. 2. The box is filled with foam to protectthe equipment from impact. 3. Exported wooden box made from plywood, don't need fumigated.PaymentPayment Term T/TEXW 30% T/T in advance, paid the balance before shipmentFOBCFR(C&F) 30% T/T in advance, paid the balance against copy of B/LCIFL/CL/C amount above 50,000 usd, we can accept L/C at sightWest UnionAmount lower than 5000usdDelivery Time7~10days after receiving payment for one containerContecting Us
