Shantui Road Milling Machine Sm50t-3 0.5m Cold Milling Machine

Product Description

Shantui Road Milling Machine SM50T-3 0.5M Cold Milling Machine
Product Description

Drive system
* 103kW power works with 6.6t operating weight to achieve powerful operating capacity and good working condition adaptability.
* High traction force and powerful large-depth milling capability.
Working device
* The optimized cutter arrangement and excellent manufacturing accuracy guarantee low operating vibration of machine.
Control system
* The standard controller and display feature high intelligence level and convenient human-machine interactions.
Traveling system
* The column lifting system with large travel design realizes 245mm maximum ground clearance of cutter tip and excellent trafficability.
* The large steering angle design achieves up to 300mm minimum milling radius.
Easy maintenances
* The standard air source can realize the pneumatic cutter change and air filter cleaning.
* The large hood with backward-opening design easies the maintenances.

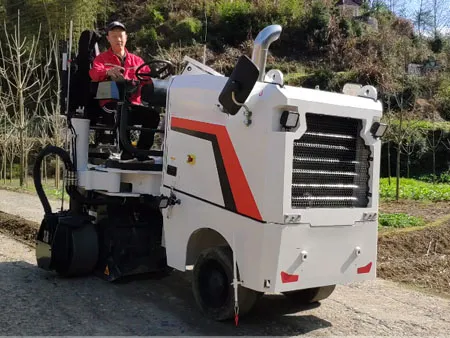

Detailed Photos
Product Parameters

Parameter name	SM50T-3 (Standard version)
Performance parameters
Operating weight (Kg)	6600
Transport weight(Kg)	6280
Maximum milling width (mm)	500
Maximum milling depth (mm)	180
Engine
Engine model	WP4.1
Rated power/rated speed (kW/rpm)	103/2300
Overall dimensions
Overall dimensions of machine (mm)	3105*2075*2340
Driving performance
Traveling speed (km/h)	0-8
Working speed (m/min)	0-50
Conveyor System
Width of conveyor belt (mm)	-
Swing angle of conveyer (Rightward/leftward) (°)	-
Tank capacity
Fuel tank (L)	180
Working device
Number of milling cutters (Piece)	54
