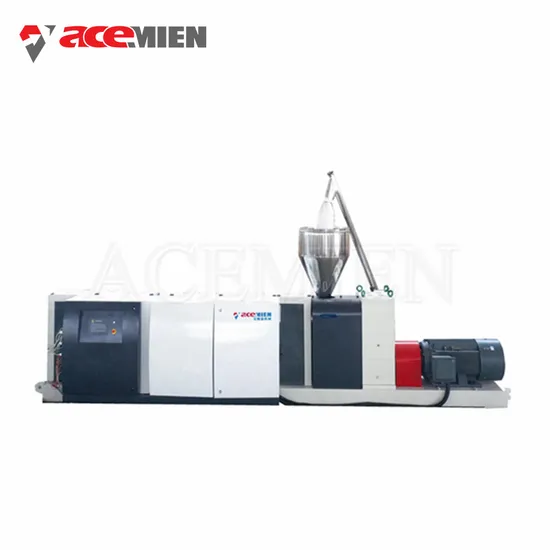

PP PE Plastic Formwork Construction Template Extruder Machine

Product Description

PP Hollow Sheet Professional Module
Product ApplicationMachine name: PP Hollow Construction Formwork Porduction Line
Finished product : PP Construction Formwork , PP Formwork for Concrete Mould Product Advantages:
No.1. Smooth and clean.The splicing of the formwork is strict and smooth, and the surface degree and finish of the concrete structure after demoulding exceed the technical requirements of the existing clear water formwork.
No.2. Portable and easy to install.Light weight, strong process adaptability, can saw, planer, drill, nail, can be composed of any geometric shape, to meet the needs of various shapes of building die.
No.3. Simple stripping.Concrete does not stick to the surface, no need of demoulding agent, easy demoulding, easy to remove ash.
No.4. Stable weather resistance.High mechanical strength, in - 20 ºC to + 60 ºC temperature conditions, contractive, not wet bilge, no crack, deformation, stable size, alkali resistant anticorrosive, waterproof, flame retardant from rat pest control.
No.5. Beneficial to maintenance.Templates do not absorb water, no special maintenance or storage.
No.6. High variability.Types, shapes and specifications can be customized according to the requirements of construction projects.
No.7.Reduce costs.More times of turnover, plane mold turnover more than 50 times, column and beam mold not less than 40 times, low cost.
No.8. Energy saving and environmental protection.Scrap and waste templates can be recycled, zero waste discharge.

PP Hollow Formwork Standard Size (Customizable)
Thickness(mm)	Width*Length(mm)	Weight(kg)
15	915*1830	14-15
16	915*1830	15-16
17	915*1830	16-17
18	915*1830	17-18
15	1220*2440	24-25
16	1220*2440	26-27
17	1220*2440	27-28
18	1220*2440	29-30

Machine List
No.	Name	Qty.	Remark
1	Screw loader for SJ120/35 extruder	1
2	Vacuum Loader for SJ75/35	1
3	SJ 120/35 single screw extruder	1	For the middle layer
4	SJ 75/35 single screw extruder	1	For the surface layer
5	Screen Changer1	1	For SJ120/35 Extruder
6	Screen Changer2	1	For SJ75/35 Extruder
7	Metering Pump1	1	For SJ120/35 Extruder
8	Metering Pump2	1	For SJ75/35 Extruder
9	Distributor for 3 Layers	1
10	1000mm Extrusion Mould	1
11	Vacuum Calibration Table	1	3 Groups Calibration Mould
12	Vacuum System	1
13	Cooling Bracket (Forward)	1	3000mm
14	Haul-off Unit (Forward)	1	High Quality Rubber Roller
15	Cooling Bracket (Backward)	1	3000mm
16	Haul-off Unit (Backward)	1	High Quality Rubber Roller
17	Cutter	1
18	Staker	1

FAQ
Q1. Are you a factory or a trading company? A1: ACEMIEN is a high-end export brand of ACMACHINE Group. We have our own factory-ACMACHINE industry, and many high-quality suppliers. We provide "all-in-one solusion" for all series of plastic extrusion machinery. We provide you with superior quality and guaranteed satisfaction, you will never overpay again.
Q2. Are there other machine not listed in the catalogA2. ACEMIEN provides all different types of plastic extrusion solutions. If you cannot find the exact machine you are looking for, please contact us, we will be happy to develop with you and become your long-term trustworthy Chinese factory!
Q3. Can I get free samples? A3.ACEMIEN can send free samples. But you need to pay the cost of Express which can be reduced in the order of machine in the future.
Q4. How long will I receive the quotation?A4. Once we know the raw material, final product dimension and the special requirements, we will provide you a detailed quotation within 8 hours.
Q5. How do I get response quickly? A5. If you send email, whatsApp, WeChat to contact us, we promise to reply to you within 8 hours! WhatsApp is the best and 24 hours online:)
